Two Legs Crane Lifting Slings 4:1 Standard Safety Factor G80 G100 Quality Grade
Two Legs Crane Lifting Slings 4:1 Standard Safety Factor G80 G100 Quality Grade Two Legs Crane Lifting Slings 4:1 Standard Safety Factor G80 G100 Quality Grade Two Legs Crane Lifting Slings 4:1 Standard Safety Factor G80 G100 Quality Grade

Two Legs Crane Lifting Slings 4:1 Standard Safety Factor G80 G100 Quality Grade

Product Details:
Place of Origin: made in China
Brand Name: solar
Certification: ISO
Model Number: G80 G00
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: plastic bags, wooden boxes
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: Depends on the Diameter and length of Chain
Contact Now

Detail Information
Product Name: 2 Legs Alloy Lifting Chain Sling Safety Factor 4:1 G80 Galvanized Ungalvanized Us Standard Customized Material: High-quality Alloy Steel
Surface Treatment: Self-color, Polishing, Black, Plastic Coating, Hot-dip, Galvanized Manufacture Standard: ISO, DIN， BS， JIS， ASTM
Quality Grade: G80， G100 Safety Factor: Not Less Than 4 Times
High Light:

tower crane wire rope

,

overhead crane wire rope

Product Description

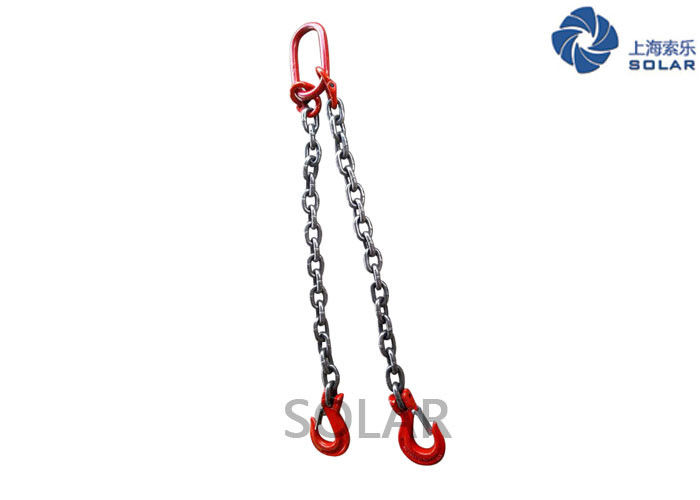

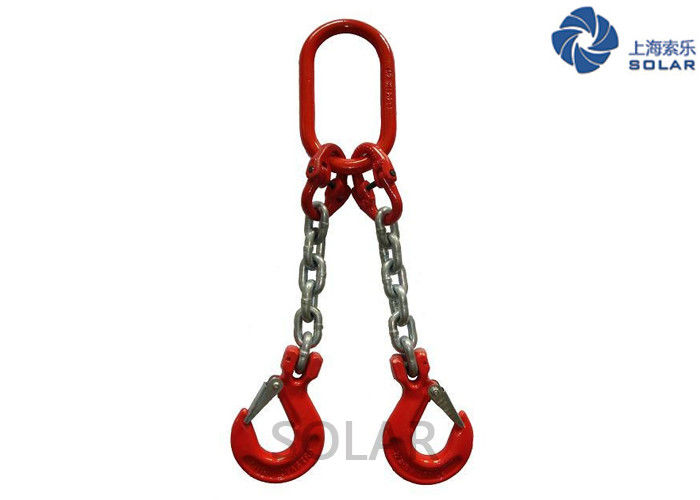

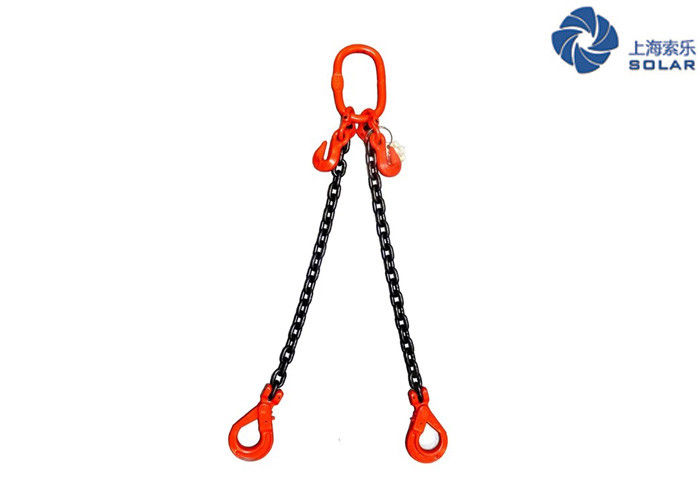

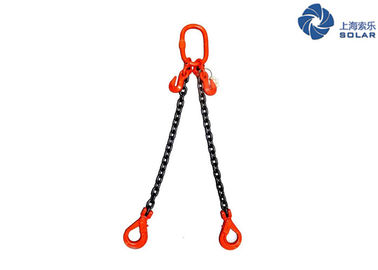

Two Legs Alloy lifting Chain Sling safety factor 4:1 G80 galvanized ungalvanized us standard customized

  • Our Chain Slings are made up of master ring, connecting link, chain and fittings.
  • The length can be made according to the customers' requirements.
  • You can choose any kind of hooks according to the lifted objectives.
  • When lifting the angle won't over than 60
  • Standard safety factor is 4:1. We can also provide 5:1 & 6:1.







Two Legs Crane Lifting Slings 4:1 Standard Safety Factor G80 G100 Quality Grade 0



Two Legs Crane Lifting Slings 4:1 Standard Safety Factor G80 G100 Quality Grade 1



Size dXt(mm) Width(mm) 单位长度约重 Unit Weight(kg/m) 工作极限负荷 Working Load Limit(kN) 试验负荷 Test Load(kN) 最小破断负荷 Breaking Load(kN)
Min.a 最小外宽 Max.b

Φ4×12 5.5 14 0.4 5 12.5 20
Φ5×15 6.5 17 0.6 7.8 19.6 31.4
Φ6×18 7.5 21 0.8 11 27 45.2
Φ7×21 9 24.5 1.07 15 37 61.6
Φ8×24 10 28 1.4 20 48 80.4
Φ9×27 11 30 2 25.4 63.5 101.7
Φ10×30 12.5 35 2.2 32 76 125
Φ11×43 12.6 36.5 2.33 38 92 154
Φ12×36 15 42 3.2 46 109 181
Φ12.5×38 15.5 42.2 3.3 49 117 196
Φ13×36 16.3 44 4.1 50 128 212
Φ13×39 16.3 46 3.84 50 128 212
Φ14×42 18 49 4.2 63 150 246
Φ14×50 17 48 4 63 150 246
Φ16×48 20 56 5.71 80 192 320
Φ16×50 20 56 5.6 80 192 320
Φ16×64 20 56 5.2 80 192 320
Φ18×54 23 63 7 100 246 410
Φ18×64 21 58 6.6 100 246 410
Φ19×57 23.7 63.2 7.7 113 270 450
Φ20×60 25 70 9 125 300 500
Φ22×66 28 77 10.8 153 366 610
Φ22×86 26 74 9.5 153 366 610
Φ24×72 32 82 12.8 180 432 720
Φ24×86 28 79 11.6 180 432 720
Φ25×75 33 85 14 196 408 784
Φ25×86 30 83 13.5 196 408 784
Φ26×78 35 91 15 213 510 850
Φ26×92 30 86 13.7 213 510 850
Φ28×84 37 95 18 246 580 984
Φ30×90 38 105 19.6 283 678 1130
Φ30×108 34 98 18 283 678 1130
Φ32×96 40 106 22.6 322 772 1286
Φ34×102 46.5 121.5 25.5 363 870 1450
Φ34×126 38 109 22.7 363 870 1450
Φ35×105 45 118 30.5 384 883 1530
Φ36×108 49.5 128.5 31 407 978 1630
Φ38×114 52 132 32 453 1086 1810
Φ38×137 45 123 29 453 1086 1810
Φ42×126 55.5 144.5 38.6 554 1332 2200





Two Legs Crane Lifting Slings 4:1 Standard Safety Factor G80 G100 Quality Grade 2Two Legs Crane Lifting Slings 4:1 Standard Safety Factor G80 G100 Quality Grade 3Two Legs Crane Lifting Slings 4:1 Standard Safety Factor G80 G100 Quality Grade 4













Chain Sling could end with all kinds of Safety Hooks on your Requirements:



Two Legs Crane Lifting Slings 4:1 Standard Safety Factor G80 G100 Quality Grade 5
