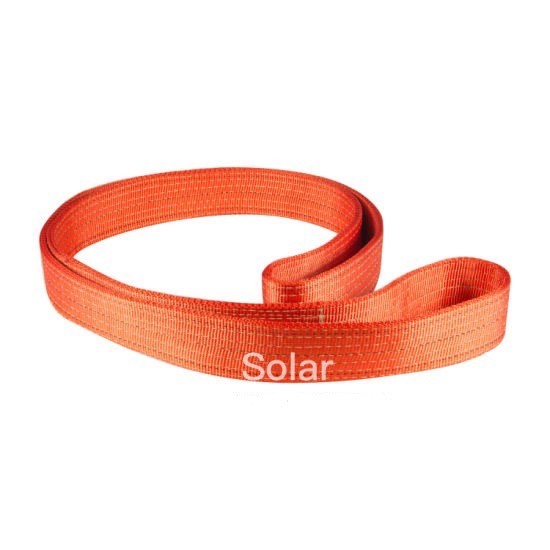

A-A Grade Polyester Endless Round Webbing Sling With Low Elongation

Endless webbing sling is made from high tenacity 100% polyester webbing with endless. It can be made from one layer to four layers,which we usually call Simplex webbing sling,Duplex webbing sling,Triplex webbing sling and Quadraplex.

Below Sepecification of Eye-eye Webbing Sling for your reference:

1T WEBBING SLING	Art No.	Color	Safety factor	Width:mm	M.B.S(kg)
	WS1T5F	Purple	5:1	25	5T
	WS1T6F	Purple	6:1	25/38	6T
	WS1T7F	Purple	7:1	25/30/50/60	7T
	WS1T8F	Purple	8:1	50	8T

2T WEBBING SLING	Art No.	Color	Safety factor	Width:mm	M.B.S(kg)
	WS2T5F	Green	5:1	50	10T
	WS2T6F	Green	6:1	50	12T
	WS2T7F	Green	7:1	50/60	14T
	WS2T8F	Green	8:1	65	16T

3T WEBBING SLING	Art No.	Color	Safety factor	Width:mm	M.B.S
	WS3T5F	Yellow	5:1	75	15T
	WS3T6F	Yellow	6:1	75	18T
	WS3T7F	Yellow	7:1	75/90	21T
	WS3T8F	Yellow	8:1	95	24T

4T WEBBING SLING	Art No.	Color	Safety factor	Width:mm	M.B.S
	WS4T5F	Grey	5	100	20T
	WS4T6F	Grey	6	100	24T
	WS4T7F	Grey	7	100/120	28T
	WS4T8F	Grey	8	120	32T

5T WEBBING SLING	Art No.	Color	Safety factor	Width:mm	M.B.S(kg)
	WS5T5F	Red	5:1	125	25T
	WS5T6F	Red	6:1	125	30T
	WS5T7F	Red	7:1	125/150	35T
	WS5T8F	Red	8:1	150	40T

6T WEBBING SLING	Art No.	Color	Safety factor	Width:mm	M.B.S(kg)
	WS6T5F	Brown	5:1	150	30T
	WS6T6F	Brown	6:1	150	36T
	WS6T7F	Brown	7:1	150/180	42T
	WS6T8F	Brown	8:1	180	48T

8T WEBBING SLING	Art No.	Color	Safety factor	Width:mm	M.B.S
	WS8T5F	Blue	5:1	200	40T
	WS8T6F	Blue	6:1	200	48T
	WS8T7F	Blue	7:1	200/240	56T
	WS8T8F	Blue	8:1	240	64T

10T WEBBING SLING	Art No.	Color	Safety factor	Width:mm	M.B.S
	WS10T5F	Orange	5:1	250	50T
	WS10T6F	Orange	6:1	250	60T
	WS10T7F	Orange	7:1	250/300	70T
	WS10T8F	Orange	8:1	300	80T

CAUTIONS:

- Do not attempt to use sling above rated lifting capacity.
- When selecting a sling,it is very important to consider the angles at which the sling will be used.
- Slings are subject to cutting when ifting items with sharp egeds.In this case,always use protective sleeves
- Do not use a damaged sling,and se only if trained.
- Do not tie knots in sling webbing as strength is greatly reduced.
- Never drag a sling beneth from a load which is resting on it.
- Chemical active environments can affect the strength of slings
- Inspect slings weekly or more frequently depending on the sling use conditions.
- Always strore slings in a cool,dry and dark place to extend the working lift.
- Always read and understand the operating instructions before use.
- Failure to comply with this warning may result in serious load damageand death or injury.

When using flat woven webbing slings always:

• Store and handle belt slings correctly.

• Inspect belt slings and accessories before use and before placing into storage.

• Follow safe slinging practices, as given overleaf.

• Position the bight for choke lift at 120° (natural angle).

• Position the sling so that the load is uniformly spread over its width and protect the sling from sharp edges.

• Apply the correct mode factor for the slinging arrangement.
