Omega Heavy Duty Forged US Type Wide Body Flat Bow Shackle SWL 40ton - 1550ton

Product Details:
Place of Origin: Made in China
Brand Name: SOLAR
Certification: ISO
Model Number: Wide Body Omega Shackle
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Pallet or other way on customers' request
Delivery Time: 3 days
Payment Terms: L/C, D/P, T/T
Supply Ability: depends on Order

Detail Information

Product Name: Wide Body Omega Shackle Material: G8 Steel
Size: 40-1550ton Delivery Time: 20 Days
Condition: New Processing: Forged, Casting Available Too
Usage: Port Machinery, Shipping, Construction, Mining, Maritime, Mechanics Packing: Plywood Case, Etc.
HS Code: 8425190000 Port Of Origin: Shanghai China
High Light:

marine grade stainless steel wire rope

,

heavy duty lifting straps

Product Description

Wide Body Omega Shackle



About Wide Body Omega Shackle:

Material: High tensile Steel, Grade 8

Safety Factor: 1:5

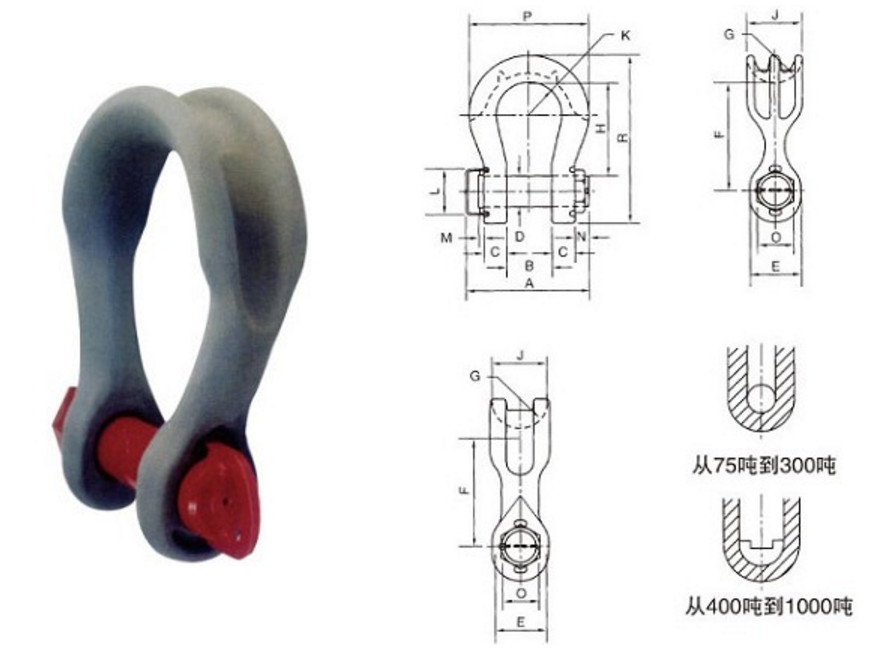

Omega Heavy Duty Forged US Type Wide Body Flat Bow Shackle SWL 40ton - 1550ton 0



Omega Shackle
WLL
(T)
Dimenssion (mm) Weight
a b c d e f g h i j k l (kg)
40 55 51 109 45 80 200 140 331 252 235 38 97 22
55 60 57 115 55 85 250 160 396 304 270 45 100 50
75 70 70 140 70 105 290 186 467 359 345 54 120 67
125 85 80 155 85 130 365 220 569 428 410 64 150 105
150 94 95 180 89 140 390 250 627 441 455 50 170 160
200 110 105 200 100 150 480 276 744 474 508 50 205 220
250 126 120 228 110 170 540 300 842 528 600 60 240 320
300 135 134 245 122 185 600 350 926 594 620 70 265 350
400 160 160 295 145 220 575 370 964 686 715 80 320 635
500 170 180 330 160 250 680 450 1107 763 810 90 340 803
600 190 200 350 170 275 740 490 1207 828 913 100 370 980
700 200 215 392 190 300 750 540 1257 878 993 100 400 1260
800 218 230 420 200 325 850 554 1395 959 986 110 420 1430
900 242 255 466 220 350 850 584 1454 1040 1050 120 440 1650
1000 260 270 490 240 380 855 614 1497 1116 1176 120 460 2120
1250 285 300 510 260 430 930 650 1620 1193 1275 150 530 2400
1550 295 320 550 280 460 950 680 1710 1278 1350 160 560 3600

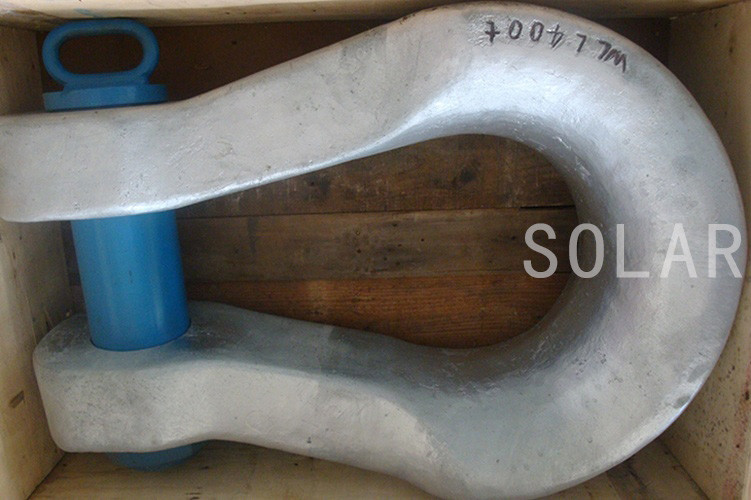

Omega Heavy Duty Forged US Type Wide Body Flat Bow Shackle SWL 40ton - 1550ton 1

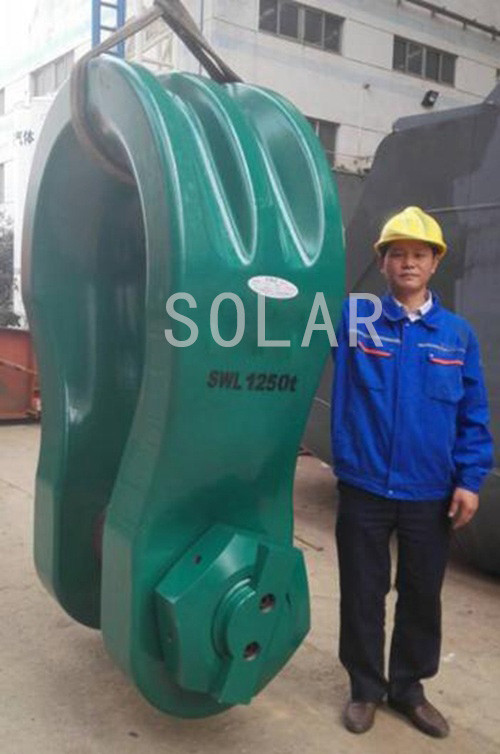

Omega Heavy Duty Forged US Type Wide Body Flat Bow Shackle SWL 40ton - 1550ton 2

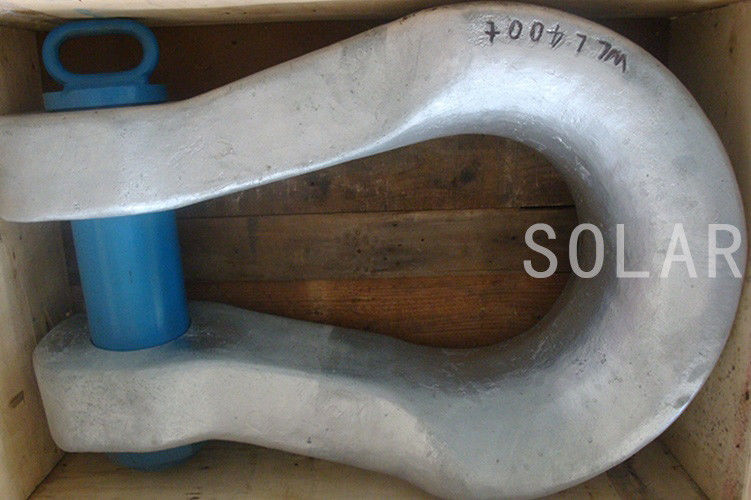

Omega Heavy Duty Forged US Type Wide Body Flat Bow Shackle SWL 40ton - 1550ton 3

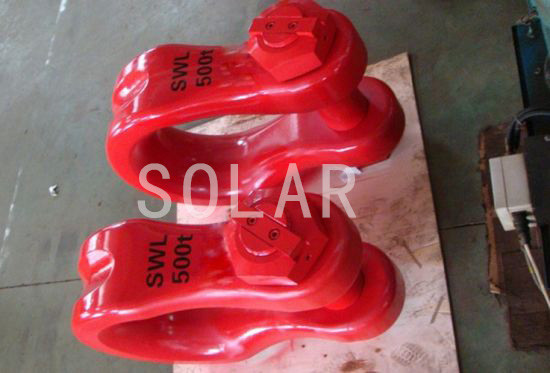

Omega Heavy Duty Forged US Type Wide Body Flat Bow Shackle SWL 40ton - 1550ton 4
