Product Name: Wire Rope Socket (Closed Socket/ Open Spelter Socket/ Wedge Socket/ Pear Socket) Size: Can Fit Dia 10mm-100mm Wire Rope
Surface: Galvanized Diameter: 10~100mm Wire Rope
Material: Alloy Steel Standard: ISO, CE
Packing: Pallet/Wooden Box On Your Request Stock Or Not: Small Size We Have Stock Of Self-Color
Delivery: Depends On The Size Of Order Port Of Origin: Shanghai China
HS Code: 7316909000
High Light:

Marine wire rope hardware

,

100mm wire rope and fittings

Product Description

Heavy Duty Offshore Marine Use Wire Rope Fittings All kinds of Sockets Global Standard with Test Cetificate



Wire rope sockets are fitting on the terminal of wire ropes.

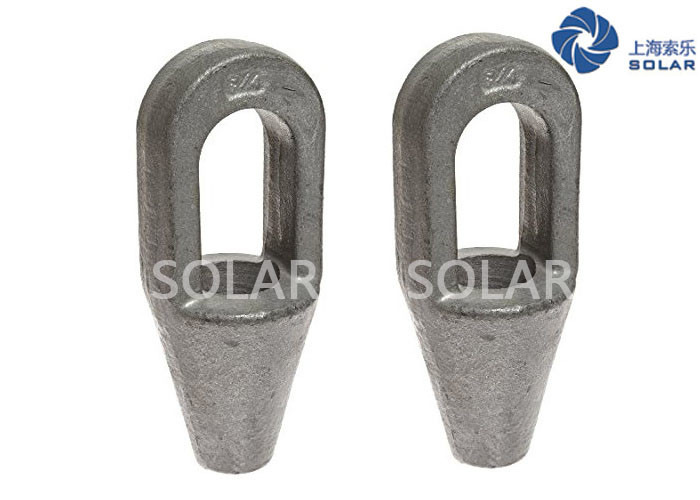

100mm Wire Rope Fittings 0



100mm Wire Rope Fittings 1

Rope Diameter 适用钢丝绳直径 Main technical parameters 主要技术参数
A C D F G H J L M N
(in.) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)

1/4 6 115.82 23.11 17.53 9.65 11.53 39.62 57.15 39.62 33.27 9.14
5/16-3/8 8-9 122.94 20.57 20.57 12.70 20.57 42.93 57.15 44.45 38.10 11.18
7/16-1/2 11-12 141.22 25.40 25.40 14.22 23.88 47.75 62.50 60.80 47.75 12.70
9/16-5/8 14-16 171.45 31.75 30.23 17.53 28.70 57.15 76.20 63.60 57.15 14.22
3/4 19 201.68 38.10 35.05 20.57 31.75 66.53 88.90 76.20 66.55 15.75
7/8 22 234.95 44.45 41.40 23.88 38.10 82.55 101.60 88.80 79.50 23.32
1 25 268.22 50.80 50.80 28.70 44.45 95.25 114.30 101.60 95.25 22.35
1 1/8 28 299.97 57.15 57.15 31.75 50.80 104.65 127.00 117.35 104.65 25.40
1 1/4-1 3/8 31.5-35 335.03 63.50 63.50 38.10 57.15 120.65 139.70 127.00 120.60 28.70
1 1/2 38 384.05 76.02 69.85 41.4 69.85 133.35 152.40 152.40 136.65 30.23
1 5/8 42 412.75 76.20 76.20 44.45 76.20 139.70 165.10 165.10 146.05 33.27
1 3/4-1 7/8 45-47.5 463.55 88.90 88.90 50.80 79.50 162.05 190.50 177.80 165.10 39.62
2-2 1/8 50-53 546.10 101.60 95.25 57.17 95.25 187.45 215.90 228.60 177.80 45.97
2 1/4-2 3/8 57-60 596.90 114.30 107.95 63.50 101.60 209.55 228.60 254.00 196.85 54.10
2 1/2-2 5/8 63-66 647.70 127.00 120.65 73.15 114.30 234.95 247.65 273.05 215.90 60.45
2 3/4-2 7/8 70-73 692.15 133.35 127.00 97.25 123.95 266.70 279.40 279.40 228.60 73.15
3-3 1/8 76-80 736.60 146.05 133.35 85.85 133.25 282.45 304.80 285.75 241.30 76.20
3 1/4-3 3/8 82-85 784.35 158.75 139.70 91.95 146.05 301.75 330.40 298.45 254.00 79.25
3 1/2-3 5/8 89-92 844.55 171.45 152.40 95.55 165.10 314.45 355.60 317.50 273.05 82.55
3 3/4-4 95-100 920.75 190.50 177.80 107.95 184.15 345.95 381.00 342.90 317.50 88.90





100mm Wire Rope Fittings 2100mm Wire Rope Fittings 3100mm Wire Rope Fittings 4





100mm Wire Rope Fittings 5





Closed Socket:

100mm Wire Rope Fittings 6



Rope Diameter Main Technical Parameters
A B C D F G H J K
(in.) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)

1/4 6 114.30 12.70 38.10 22.35 9.65 17.53 39.62 57.15 12.70
5/16-3/8 8-9 123.95 15.75 42.93 24.64 12.70 20.57 42.93 57.15 17.53
7/16-1/2 11-12 138.18 17.53 50.80 29.64 14.22 23.88 47.75 63.50 22.35
9/16-5/8 14-16 160.27 20.57 66.80 35.81 17.53 28.45 60.45 76.20 25.40
3/4 19 192.02 26.92 76.20 42.16 20.57 31.75 69.85 90.42 31.75
7/8 22 222.25 31.75 92.20 47.75 23.88 38.10 81.55 101.60 38.10
1 25 250.95 35.05 104.90 58.42 28.70 44.45 95.25 112.78 44.45
1 1/8 28 279.40 38.10 114.30 65.02 31.75 50.80 104.90 127.00 50.80
1 1/4-1 3/8 31.5-35 307.85 41.40 134.62 71.37 38.10 57.15 120.65 139.70 57.15
1 1/2 38 354.08 49.28 135.38 81.03 41.40 69.85 133.35 152.40 63.50
1 5/8 42 384.30 54.10 146.05 82.55 44.45 76.20 139.70 165.10 69.85
1 3/4-1 7/8 45-47.5 438.15 55.63 171.45 95.25 50.80 79.50 162.05 190.50 76.20
2-2 1/8 50-53 495.30 61.98 193.80 111.25 57.15 95.25 187.45 215.90 82.55
2 1/4-2 3/8 57-60 536.70 66.80 215.90 127.00 63.50 101.60 209.55 228.60 92.20
2 1/2-2 5/8 63-66 596.90 79.25 241.30 139.70 73.15 114.30 234.95 247.65 101.60
2 3/4-2 7/8 70-73 644.65 79.25 273.05 158.75 79.25 123.95 285.83 279.40 123.95
3-3 1/8 76-80 685.80 82.55 292.10 171.45 85.85 133.25 292.10 304.80 133.35
3 1/4-3 3/8 82-85 742.95 101.60 311.15 184.15 91.95 146.05 311.15 330.20 146.05
3 1/2-3 5/8 89-92 787.40 101.60 330.20 196.85 98.55 165.10 330.20 335.60 158.75
3 3/4-4 95-100 844.55 107.95 361.95 215.90 107.95 184.15 361.95 381.00 177.80



100mm Wire Rope Fittings 7100mm Wire Rope Fittings 8



100mm Wire Rope Fittings 9



Rope DIameter Dimensions (mm)
(mm) A B E F H I

10-11 69 48 12 12 24 12
12-13 79 56 15 14 25 14
14-15 91 64 17 16 29 16
16-17 103 70 19 18 31 18
18-19 114 84 21 19 38 20
20-21 129 84 23 21 42 22
22-24 140 100 26 23 44 26
25-27 158 100 28 25 48 29
28-30 171 120 31 27 56 31
31-33 190 120 32 29 58 35
34-36 203 142 36 31 64 37
37-39 225 142 39 35 68 40
40-42 242 166 43 37 70 43
43-45 265 166 47 41 72 47
46-48 288 166 49 43 80 51
56 340 220 60 54 90 59



100mm Wire Rope Fittings 10



100mm Wire Rope Fittings 11



100mm Wire Rope Fittings 12



Rope Diameter(mm) Weight(kg) SIZE(mm)
A B D R H

6 0.9 29 13 16 20 90
8 1.2 31 15 18 22 100
10 1.5 38 18 20 25 120
12 2.5 44 20 25 30 155
14 4 51 23 30 35 180
16 6.2 60 26 34 42 200
18 9 64 28 36 44 220
20 10.5 72 30 38 47 240
22 14 76 32 40 52 250
24 17 83 35 50 60 270
26 22 92 38 55 65 290
28 27 94 40 60 70 305
32 38 110 44 65 77 370
36 58 122 48 70 85 400
40 74 140 55 75 90 450
44 82 140 60 80 90 480
48 88 144 60 85 95 500
53 110 162 70 90 100 540





100mm Wire Rope Fittings 13
