6x9W+FC Galvanized Heavy Duty Marine Steel Wire Rope For Mooring

Product Details:
Place of Origin: Made in China
Brand Name: SOLAR
Certification: ABS(USA), BV(France), CCS(China), DNV(Norway), GL(Germany), KR(Korea), LR(U. K. ), NK(Japan), RINA(Italy), RS(Russia) & Works Certificate.
Model Number: Large Diameter 6x9W+FC Glva/Bright Wire Rope
Payment & Shipping Terms:
Minimum Order Quantity: 1 meter
Price: Negotiable

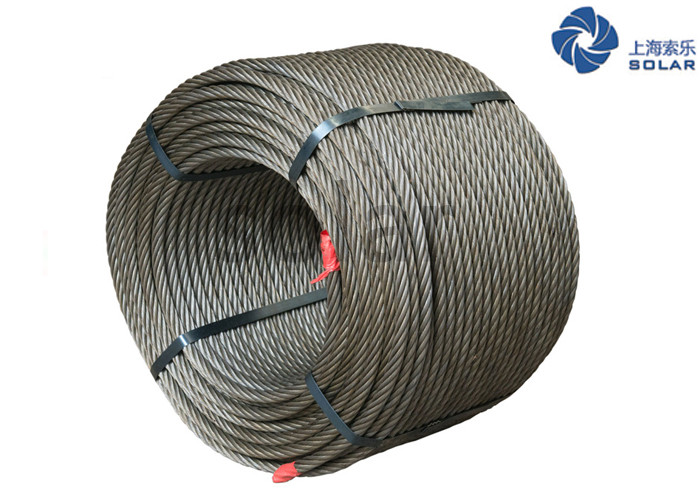

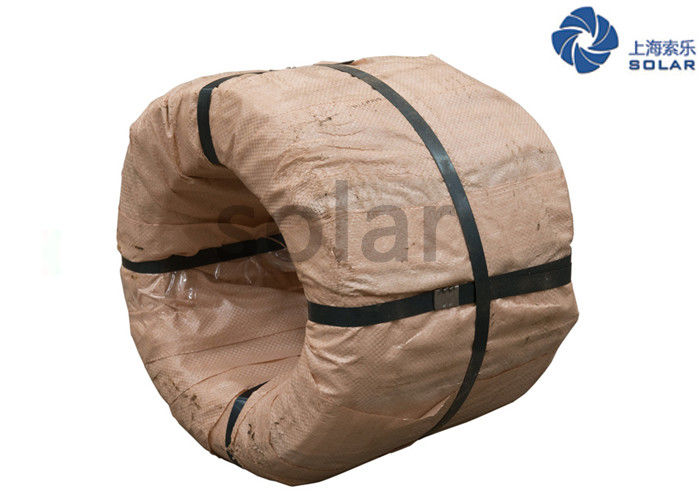

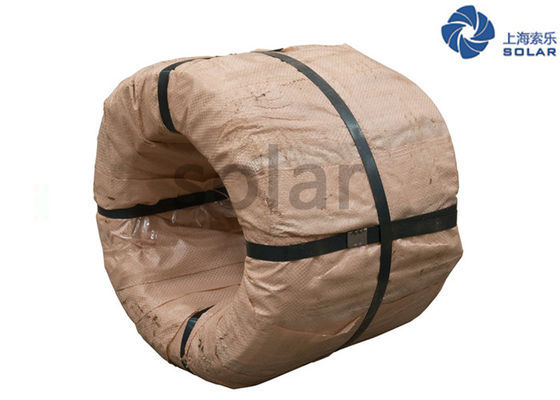

Packaging Details: Pallet, Reels
Delivery Time: within 7 days
Payment Terms: L/C, D/P, T/T
Supply Ability: Depends on Order

Detail Information

Product Name: Large Diameter 6x9W+FC Glva/Bright Wire Rope Wire Rope Structure: 6x9W+FC
Standard: GB/DIN/BS/JIS/ASTM/AISI/API/ISO Technique: Galvanized/Ungalvanized/Bright
Diameter: 20mm~200mm, On Your Request Length: Depends On Order,1~1000 Meter
Tensile Strength: 1570Mpa 1670Mpa 1770Mpa 1870Mpa~1960Mpa PS IPS EIPS Core Type: Fiber Core/ IWRC
Packing: Reel/Pallet Application: Mine Lifting, High-furnace Hoist, Lifting, Marine,offshore,Oil Drilling, Shipping, Construction, Mining
Company Type: Manufacturer, Supplier, Expoter Port Of Origin: Shanghai China
HS Code: 73121000
High Light:

18x19+FC

,

18x19+IWS

Product Description

6x9W+FC High Strengthen Marine Carbon Steel Wire Rope

6x9W+FC Galvanized Heavy Duty Marine Steel Wire Rope For Mooring



Rope Type: 6x9W

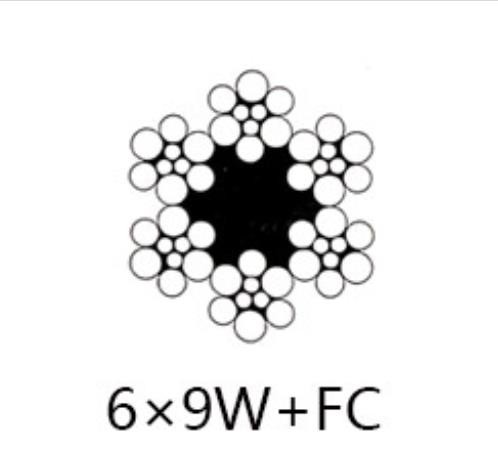

Rope Construction: 6x9W+FC

Application:

1. It is used in heavy rigging,heavy-duty hoisting machinery ,salvage,etc.

2. Steel wire ropes with diameters from 20mm to 200mm

3. 4:1/5:1/6:1 safety factors





EIPS = 1960Mpa (Extra Improved Plow Steel)

EEIPS= 2160Mpa

IPS=1870Mpa

PS=1770Mpa





FC = Fiber Core

IWRC = Independent Wire Rope Core







Environmental Considerations

IWRC must not be used at temperatures above 400°F.

FC must not be used at temperatures above 180°F.

Fiber core ropes should not be subjected to degreasing solvents



6x9W+FC Galvanized Heavy Duty Marine Steel Wire Rope For Mooring 0



6x9W+FC Galvanized Heavy Duty Marine Steel Wire Rope For Mooring 1



Nominal Diameter Approx.Weight Nominal Tensile Strength of Rope(MPa)
1570 1670 1770 1870 1960
Minimun Breaking Load of Rope
D NF SF IWR/IWS FC IWR/IWS FC IWR/IWS FC IWR/IWS FC IWR/IWS FC IWR/IWS
mm kg/100m (KN)

2 1.4 1.38 1.55 2.08 2.25 2.22 2.4 2.35 2.54 2.48 2.69 2.6 2.81
3 3.16 3.1 3.48 4.69 5.07 4.99 5.4 5.29 5.72 5.59 6.04 5.86 6.33
4 5.62 5.5 6.19 8.34 9.02 8.87 9.59 9.4 10.2 9.93 10.7 10.4 11.3
5 8.78 8.6 9.68 13 14.1 13.9 15 14.7 15.9 15.5 16.8 16.3 17.6
6 12.6 12.4 13.9 18.8 20.3 20 21.6 21.2 22.9 22.4 24.2 23.4 25.3
7 17.2 16.9 19 25.5 27.6 27.2 29.4 28.8 31.1 30.4 32.9 31.9 34.5
8 22.5 22 24.8 33.4 36.1 35.5 38.4 37.6 40.7 39.7 43 41.7 45
9 28.4 27.9 31.3 42.2 45.7 44.9 48.6 47.6 51.5 50.3 54.4 52.7 57
10 35.1 34.4 38.7 52.1 56.4 55.4 60 58.8 63.5 62.1 67.1 65.1 70.4
11 42.5 41.6 46.8 63.1 68.2 67.1 72.5 71.1 76.9 75.1 81.2 78.7 85.1
12 50.5 49.5 55.7 75.1 81.2 79.8 86.3 84.6 91.5 89.4 96.7 93.7 101
13 59.3 58.1 65.4 88.1 95.3 93.7 101 99.3 107 105 113 110 119
14 68.8 67.4 75.9 102 110 109 118 115 125 122 132 128 138
16 89.9 88.1 99.1 133 144 142 153 150 163 159 172 167 180
17 101 99.4 112 151 163 160 173 170 184 179 194 188 203
18 114 112 125 169 183 180 194 190 206 201 218 211 228
20 140 138 155 209 225 222 240 235 254 248 269 260 281
22 170 167 187 252 273 268 290 284 308 300 325 315 341
24 202 198 223 300 325 319 345 338 366 358 387 375 405
26 237 233 262 352 381 375 405 397 430 420 454 440 476
28 275 270 303 409 442 435 470 461 498 487 526 510 552
30 316 310 348 469 507 499 540 529 572 559 604 586 633
32 359 352 396 534 577 568 614 602 651 636 687 666 721
34 406 398 447 603 652 641 693 679 735 718 776 752 813
36 455 446 502 676 730 719 777 762 824 805 870 843 912
38 507 497 559 753 814 801 866 849 918 896 969 940 1020
40 562 550 619 834 902 887 959 940 1020 993 1070 1040 1130
42 619 607 683 919 994 978 1060 1040 1120 1100 1180 1150 1240
44 680 666 749 1010 1090 1070 1160 1140 1230 1200 1300 1260 1360
46 743 728 819 1100 1190 1170 1270 1240 1340 1310 1420 1380 1490
48 809 793 892 1200 1300 1280 1380 1350 1460 1430 1550 1500 1620
50 878 860 968 1300 1410 1390 1500 1470 1590 1550 1680 1630 1760

6x9W+FC Galvanized Heavy Duty Marine Steel Wire Rope For Mooring 2











6x9W+FC Galvanized Heavy Duty Marine Steel Wire Rope For Mooring 3



6x9W+FC Galvanized Heavy Duty Marine Steel Wire Rope For Mooring 4










We can also provide Steel Wire Rope Slings

HOW TO ORDER WIRE ROPE SLINGS

  • Define rope diameter. 1-1/4" or 24mm in example
  • Rope Structure. 6X37 IWRC EIPS construction for example.
  • laid RHLL(Z) or LHLL(S) for cable laid rope.
  • Sling Length (length could be 0.5~1000meter, feet and meter both OK)
  • Terminations, end with soft eye or Hard eye (Thimble Eye)

6x9W+FC Galvanized Heavy Duty Marine Steel Wire Rope For Mooring 5

6x9W+FC Galvanized Heavy Duty Marine Steel Wire Rope For Mooring 6



6x9W+FC Galvanized Heavy Duty Marine Steel Wire Rope For Mooring 7



6x9W+FC Galvanized Heavy Duty Marine Steel Wire Rope For Mooring 8









6x9W+FC Galvanized Heavy Duty Marine Steel Wire Rope For Mooring 9
