Crane Galvanized Lifting 18x19S+FC Steel Wire Rope Sling

Product Details:
Place of Origin: Made in China
Brand Name: SOLAR
Certification: ABS(USA), BV(France), CCS(China), DNV(Norway), GL(Germany), KR(Korea), LR(U. K. ), NK(Japan), RINA(Italy), RS(Russia) & Works Certificate.
Model Number: 30mm~120mm
Payment & Shipping Terms:
Minimum Order Quantity: 1 length
Price: Negotiable
Packaging Details: Pallet, Reels
Delivery Time: within 7 days
Payment Terms: L/C, D/P, T/T
Supply Ability: Depends on Order

Detail Information

Product Name: Galvanized Crane Lifting Sling With Class Certificates Wire Rope Structure: 6x37,6x19,35Wx7,4V39S,8x55, 6x36WS Some Other Options See Description
Surface: Galvanized Diameter: 28mm~120mm
Length: Depends On Order, 1~1000meter Core Type: IWR/IWS/FC
Standard: GB/DIN/BS/JIS/ASTM/RR-W-410/API/ISO Packing: Reel/Pallet/Plastic Bags/Wooden Box
Safe Working Load (SWL): 20Ton~180Ton Application: Crane
Port Of Origin: Shanghai China
High Light:

18x19S+FC

,

18x19S heavy duty lifting straps

Product Description

18x19S+FC Crane Non Rotating Galvanized Lifting Steel Wire Rope Sling

18x19S+FC Sling Thimble Non-Rotating



Classification Wire Rope Structure Application
Cross Lay Wire Rope 6×19 Rigging Rope
6×37
6×61
Paralell Lay Wire Rope 6×7 Haulage Rope For Coal Inclined Shaft
6×19S Haulage Rope For Coal Inclined Shaft
Rope For Oil Drilling
6×19W Hoist Rope For Steel Works
Hoist Rope For Coal Mining
Rope For Oil Drilling
6×25Fi
6×26WS
6×31WS
6×29Fi Wintch Rope For Blast Fumace
Ropes For Harbour And Ship
Rope For Petroleum
Rope For Heavy Crane
Rope For Cableway
6×36WS
6×37S
6×41WS
6×49SWS
6×55SWS
8×19S Elevator Rope
8×19W
8×25Fi
8×26WS Hoist Rope
8×31WS
8×29Fi Rope For Heavy Crane
Rope For Marine Engineering
Rope For Ships
8×36WS
8×41WS
8×49SWS
8×55SWS
4 Strand Wire Rope 4V×39S Crane Wire Rope
4V×48S
Multi-Layer 18×7 Rope For Vertical Shaft Lifting
Rope For Harbour And Ship
18×19W Rope For Ships
18×19S
18×19
35W×7 Hoist Rope
Compacted Strand Wire Rope 6×K7 Hoist Rope For Coal Mining
6×K19S
6×K25Fi
6×K26WS
6×K31WS Hoist Rope For Steel Works
6×K36WS Wire Rope For Heavy Crane Hoist Wire Rope For Port
6×K41WS
8×K19S Wire Rope For Heavy Crane Wire Hoist Wire Rope For Port
8×K26WS
8×K31WS
8×K36WS Wire Rope For Marine Engineering
8×K41WS
18×K7 Hoisting Wire Rope
18×K19S
35W×K7
Large Diameter Steel Wire Ropes 6×36WS Wire Rope For Ships Wire Rope For Maine Engineering
Mooring Anchoring Wire Rope
6×41WS
6×49SWS
6×55SWS
6×65FNS
6×80WSNS
6×84WSNS
6×111SWSNS
6×103FSNS
6×109SWSNS
6×61
8×25Fi
8×31WS
8×36WS
8×41WS
8×49SWS
8×55SWS
8×65FNS
8×80WSNS
8×84WSNS
8×111SWSNS
8×103FSNS
8×109SWSNS
Steel Wire Ropes For Elevators 6×19S Elevators Wire Rope
6×19W
6×25Fi
8×19S
8×19W
8×25F
9×19S
9×25Fi
Steel Wire Ropes For Fisheries 6×12 Fisheries Wire Rope
6×15
6×24
6×24S
6×24W
Steel Wire Ropes For Aviation 1×7 Aviation Wire Rope
1×19
6×7
6×19



About Wire Rope Slings:

Steel wire rope slings as a basic material handling tool are most frequently used in marine line. Also they offer a strong, dependable and economical option for most lifting applications. Their popularity is enhanced by the numerous sling configurations available to support a broad range of applications. These configurations include single and multi-part slings (such as round braids, flat braids, Tri-Flex and cable laid slings), grommets, single leg slings, multiple leg bridles, and a wide variety of fittings and attachments.

Relative to other types of slings, wire rope slings are average in strength/weight ratio, average in abrasion and cut resistance, poorest in elongation and flexibility, and average for high temperatures (IWRC only).



EIPS = Extra Improved Plow Steel

FC = Fiber Core

IWRC = Independent Wire Rope Core



Features:

A mechanical (or flemish) splice sling is most frequently used and is fabricated by unlaying the rope body into two parts, one having three strands, the other having the remaining three strands and core. The rope is unlayed far enough back to allow the eye to be formed by looping one part in one direction and the other part in the opposite direction and laying the rope back together.
The strands are rolled back around the rope body and a metal sleeve is slipped over the ends and pressed (or swaged) to secure the ends to the sling body. A hydraulic swaging press with special dies is used to bond the sleeve in place. Extreme pressure forces the steel sleeve to flow into the voids between the wires and strands, creating an assembly that maintains most of the wire rope's nominal breaking strength.



Why SOLAR Brand?

As a professional manufacturer for wire rope slings and heavy lift assemblies, SOLAR has been the No.1 wire rope and sling supplier in SH area. Our customers are mostly Shipbuilding, Shipping, Offshore construction, and ship service providers. With swaging machine up to size 120mm and experienced splicing workers, we provide strongest and safest wire rope slings. Also our sales staffs are professional with lifting equipment, and could provide with customer correct wire rope and slings for their equipment or lifting requirements.





Applications:

1. Steel wire ropes with diameters from 4mm to 120mm, Diameter and strcuture depends on customers' requirements.

2. 4:1/5:1/6:1 safety factors



Environmental Considerations

IWRC must not be used at temperatures above 400°F.

FC must not be used at temperatures above 180°F.

Fiber core ropes should not be subjected to degreasing solvents



HOW TO ORDER WIRE ROPE SLINGS

  • Define rope diameter. 1-1/4" or 24mm in example
  • Rope Structure. 6X37 IWRC EIPS construction for example.
  • laid RHLL(Z) or LHLL(S) for cable laid rope.
  • Sling Length (length could be 0.5~1000meter, feet and meter both OK)
  • Terminations, end with soft eye or Hard eye (Thimble Eye)

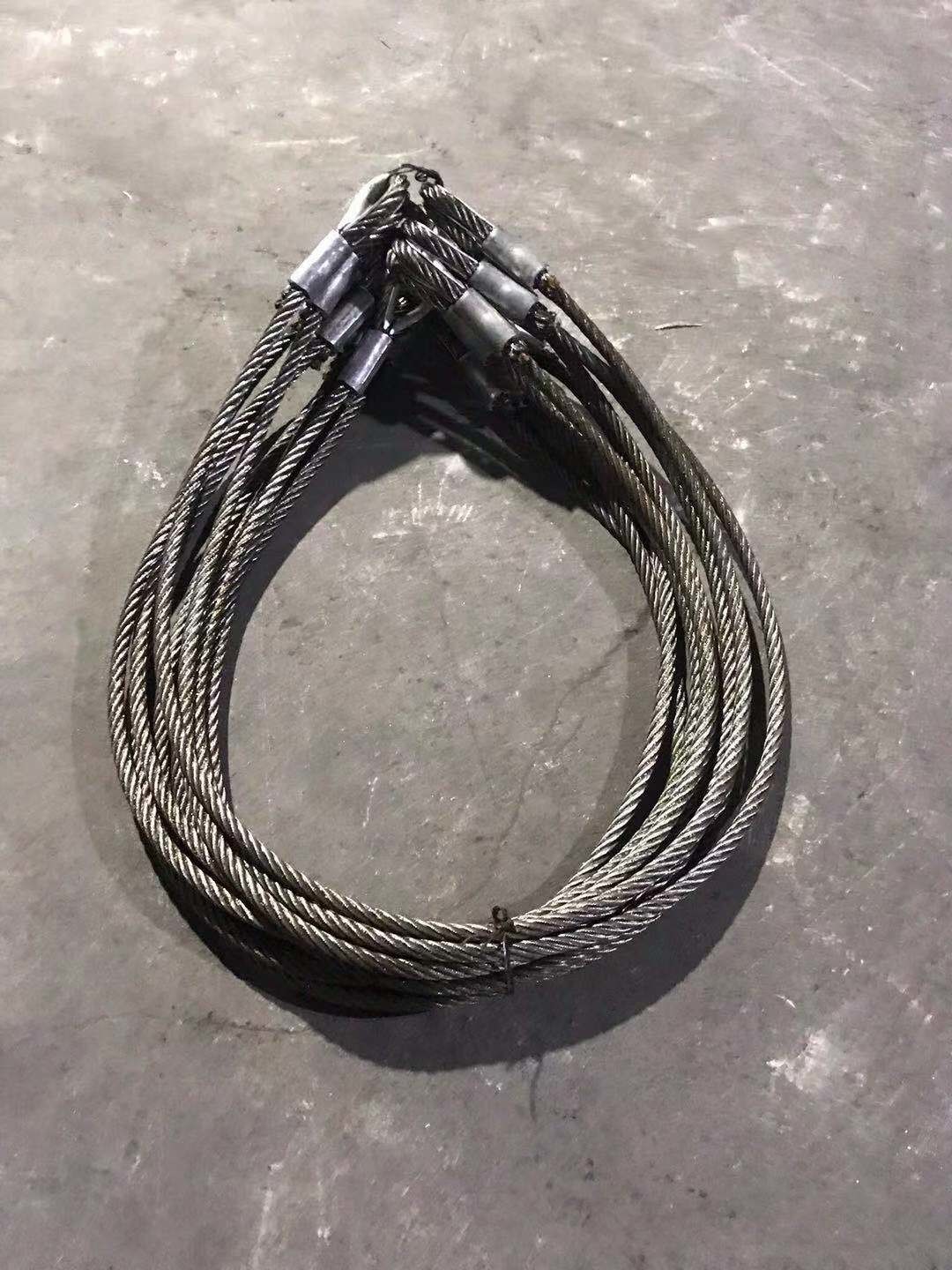

Crane Galvanized Lifting 18x19S+FC Steel Wire Rope Sling 0



Crane Galvanized Lifting 18x19S+FC Steel Wire Rope Sling 1







Crane Galvanized Lifting 18x19S+FC Steel Wire Rope Sling 2

















Crane Galvanized Lifting 18x19S+FC Steel Wire Rope Sling 3



Crane Galvanized Lifting 18x19S+FC Steel Wire Rope Sling 4





Crane Galvanized Lifting 18x19S+FC Steel Wire Rope Sling 5
