15xK7+IWR 16xK7+IWR Steel Rope Cable Non Rotating High Strength
15xK7+IWR 16xK7+IWR Steel Rope Cable Non Rotating High Strength 15xK7+IWR 16xK7+IWR Steel Rope Cable Non Rotating High Strength 15xK7+IWR 16xK7+IWR Steel Rope Cable Non Rotating High Strength

15xK7+IWR 16xK7+IWR Steel Rope Cable Non Rotating High Strength

Product Details:
Place of Origin: Made in China
Brand Name: SOLAR
Certification: ABS(USA), BV(France), CCS(China), DNV(Norway), GL(Germany), KR(Korea), LR(U. K. ), NK(Japan), RINA(Italy), RS(Russia) & Works Certificate.
Model Number: 15xK7+IWR 16xK7+IWR
Payment & Shipping Terms:
Minimum Order Quantity: 1 meter
Price: Negotiable
Packaging Details: Pallet, Reels
Delivery Time: within 7 days
Payment Terms: L/C, D/P, T/T
Supply Ability: Depends on Order
Contact Now

Detail Information
Product Name: 15xK7+IWR 16xK7+IWR Steel Wire Rope Wire Rope Structure: 15xK7+IWR 16xK7+IWR
Standard: GB/DIN/BS/JIS/ASTM/AISI/API/ISO Technique: Galvanized/Ungalvanized/Bright
Diameter: 20mm~200mm, On Your Request Length: Depends On Order， 1~1000 Meter
Tensile Strength: 1570Mpa 1670Mpa 1770Mpa 1870Mpa~1960Mpa PS IPS EIPS Core Type: Fiber Core/IWRC
Packing: Reel/Pallet Application: Mine Lifting, High-furnace Hoist, Lifting, Marine，offshore，Oil Drilling, Shipping, Construction， Mining
Company Type: Manufacturer, Supplier, Expoter Port Of Origin: Shanghai China
HS Code: 73121000
High Light:

15xK7+IWR

,

16xK7+IWR

Product Description

15xK7+IWR 16xK7+IWR​ Galvanized Carbon Steel Wire Rope For Marine

15xK7+IWR 16xK7+IWR Steel Rope Cable Non Rotating High Strength



Rope Type:  15xK7 16xK7

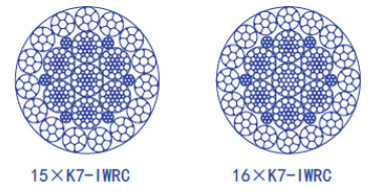

Rope Construction: 15xK7+IWR 16xK7+IWR



Application:

1. It is used in heavy rigging,heavy-duty hoisting machinery ,salvage,etc.

2. Steel wire ropes with diameters from 20mm to 200mm

3. 4:1/5:1/6:1 safety factors

15xK7+IWR 16xK7+IWR Steel Rope Cable Non Rotating High Strength 0



EIPS = 1960Mpa (Extra Improved Plow Steel)

EEIPS= 2160Mpa

IPS=1870Mpa

PS=1770Mpa





FC = Fiber Core

IWRC = Independent Wire Rope Core







Environmental Considerations

IWRC must not be used at temperatures above 400°F.

FC must not be used at temperatures above 180°F.

Fiber core ropes should not be subjected to degreasing solvents



15xK7+IWR 16xK7+IWR Steel Rope Cable Non Rotating High Strength 1

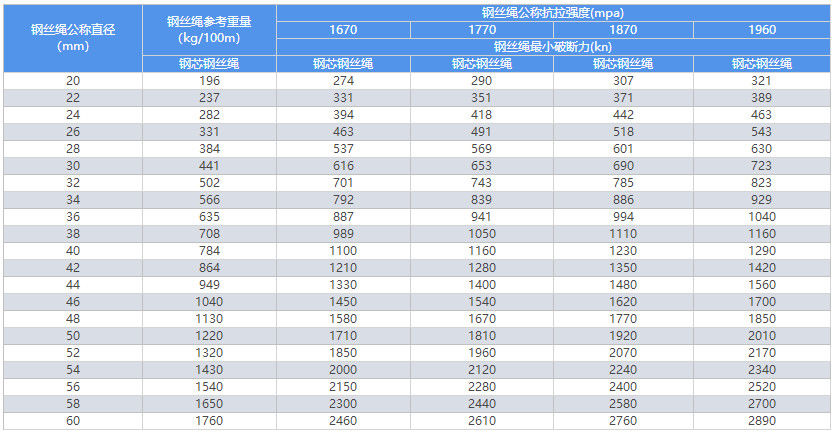

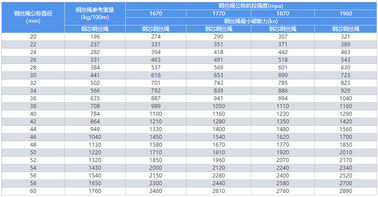

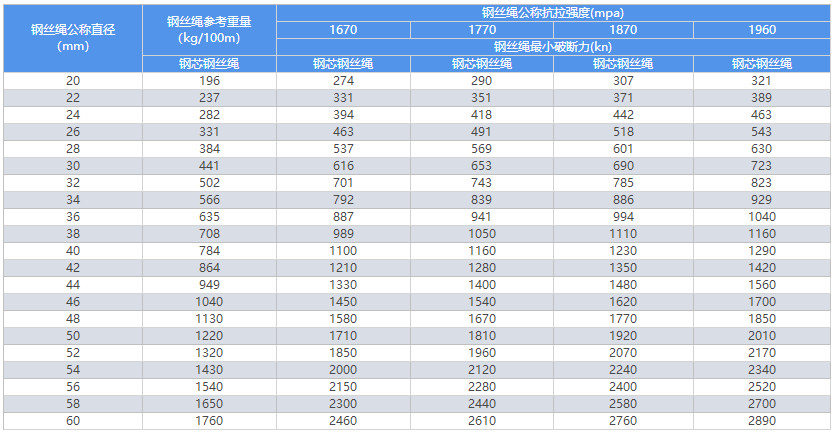

Nominal Diameter Approx.Weight Nominal Tensile Strength of Rope (MPa)
1570 1670 1770 1870 1960
Minimun Breaking Load of Rope
D FC IWR/IWS FC IWR/IWS FC IWR/IWS FC IWR/IWS FC IWR/IWS FC IWR/IWS
mm kg/100m (KN)

20 142 166 158 187 168 198 178 210 188 222 197 233
22 172 201 191 226 203 240 215 254 227 269 238 282
24 205 239 227 269 241 286 256 303 270 320 283 335
26 241 281 266 315 283 335 300 355 317 375 333 394
28 279 325 309 366 329 389 348 412 368 435 386 456
30 320 374 355 420 377 446 400 473 422 500 443 524
32 365 425 404 477 429 508 455 538 481 569 504 596
34 412 480 456 539 485 573 514 608 543 642 569 673
36 461 538 511 604 543 643 576 681 608 720 638 754
38 514 599 569 673 605 716 642 759 678 802 710 841
40 570 664 631 746 671 794 711 841 751 889 787 931
42 628 732 695 823 739 875 784 927 828 980 868 1030
44 689 803 763 903 812 960 860 1020 909 1080 952 1130
46 753 878 834 987 887 1050 940 1110 993 1180 1040 1230
48 820 956 908 1070 966 1140 1020 1210 1080 1280 1130 1340
50 890 1040 985 1170 1050 1240 1110 1310 1170 1390 1230 1460
52 963 1120 1070 1260 1130 1340 1200 1420 1270 1500 1330 1570
54 1040 1210 1150 1360 1220 1450 1300 1530 1370 1620 1430 1700
56 1120 1300 1240 1460 1310 1560 1390 1650 1470 1740 1540 1830
58 1200 1400 1330 1570 1410 1670 1490 1770 1580 1870 1650 1960
60 1280 1490 1420 1680 1510 1790 1600 1890 1690 2000 1770 2100






15xK7+IWR 16xK7+IWR Steel Rope Cable Non Rotating High Strength 2


15xK7+IWR 16xK7+IWR Steel Rope Cable Non Rotating High Strength 3





15xK7+IWR 16xK7+IWR Steel Rope Cable Non Rotating High Strength 4









15xK7+IWR 16xK7+IWR Steel Rope Cable Non Rotating High Strength 5










We can also provide Steel Wire Rope Slings

​HOW TO ORDER WIRE ROPE SLINGS

  • Define rope diameter. 1-1/4" or 24mm in example
  • laid RHLL(Z) or LHLL(S) for cable laid rope.
  • Sling Length (length could be 0.5~1000meter, feet and meter both OK)
  • Terminations, end with soft eye or Hard eye (Thimble Eye)

15xK7+IWR 16xK7+IWR Steel Rope Cable Non Rotating High Strength 6

15xK7+IWR 16xK7+IWR Steel Rope Cable Non Rotating High Strength 7



15xK7+IWR 16xK7+IWR Steel Rope Cable Non Rotating High Strength 8





15xK7+IWR 16xK7+IWR Steel Rope Cable Non Rotating High Strength 9









15xK7+IWR 16xK7+IWR Steel Rope Cable Non Rotating High Strength 10









15xK7+IWR 16xK7+IWR Steel Rope Cable Non Rotating High Strength 11
