Terminal End Wire Rope Sling Soft Eye With High Breaking Strength

Product Details:
Place of Origin: China
Brand Name: SOLAR
Certification: Lloyd's/CCS/ABS/BV/DNV
Model Number: Steel Wire Rope Sling
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Pallet, Reels
Delivery Time: within 7 days
Payment Terms: L/C, T/T, D/P
Supply Ability: depends on order

Detail Information

Product Name: Steel Wire Rope Terminal End With Loop Lifting Sling Soft Eye ---Loop Loop Wire Rope Structure: Upon To Your Request
Surface: Galvanized/Ungalvanized/Bright Diamater: 4mm~120mm
Core Type: IWR/IWS/FC Standard: GB/DIN/BS/JIS/ASTM/RR-W-410/API/ISO
Packing: Reel/Pallet/Plastic Bags/Wooden Box SWL: 1Ton~180Ton
Usage: Maritime/ Port Machinery/Shipbuilding/Salvage/Fishing Port Of Origin: Shanghai China
HS Code: 7312100000
High Light:

cable lifting slings

,

steel rope sling

Product Description

Steel Wire Rope Terminal end with Loop Lifting Sling Soft Eye ---Loop Loop



About Wire Ropes, we also supplying:



6*37+FC (ungalvanized & galvanized)

6*37+IWS

6*37+IWR



6x36WS+IWR

6*25Fi+FC

6*29Fi+FC

6*36WS+FC



6*25Fi+IWR

6*26WS+IWR

6*29Fi+IWR

6*31WS+IWR

6*36WS+IWR



35Wx7 Non-rotating Wire Rope with Many Layers (ungalvanized & galvanized), anti-twist wire rope for crane use. Hoisting/ luffing

4V*39S+5FC

4V*48S+5FC



About Wire Rope Slings:

Steel wire rope slings as a basic material handling tool are most frequently used in marine line. Also they offer a strong, dependable and economical option for most lifting applications. Their popularity is enhanced by the numerous sling configurations available to support a broad range of applications. These configurations include single and multi-part slings (such as round braids, flat braids, Tri-Flex and cable laid slings), grommets, single leg slings, multiple leg bridles, and a wide variety of fittings and attachments.

Relative to other types of slings, wire rope slings are average in strength/weight ratio, average in abrasion and cut resistance, poorest in elongation and flexibility, and average for high temperatures (IWRC only).



EIPS = Extra Improved Plow Steel

FC = Fiber Core

IWRC = Independent Wire Rope Core





Features:

A mechanical (or flemish) splice sling is most frequently used and is fabricated by unlaying the rope body into two parts, one having three strands, the other having the remaining three strands and core. The rope is unlayed far enough back to allow the eye to be formed by looping one part in one direction and the other part in the opposite direction and laying the rope back together.
The strands are rolled back around the rope body and a metal sleeve is slipped over the ends and pressed (or swaged) to secure the ends to the sling body. A hydraulic swaging press with special dies is used to bond the sleeve in place. Extreme pressure forces the steel sleeve to flow into the voids between the wires and strands, creating an assembly that maintains most of the wire rope's nominal breaking strength.



HOW TO ORDER WIRE ROPE SLINGS

  • Define rope diameter. 1-1/4" or 24mm in example
  • Rope Structure. 6X37 IWRC EIPS construction for example.
  • laid RHLL(Z) or LHLL(S) for cable laid rope.
  • Sling Length (feet or Meter)
  • Terminations, end with soft eye or Hard eye (Thimble Eye)



Why SOLAR Brand?

As a professional manufacturer for wire rope slings and heavy lift assemblies, SOLAR has been the No.1 wire rope and sling supplier in SH area. Our customers are mostly Shipbuilding, Shipping, Offshore construction, and ship service providers. With swaging machine up to size 120mm and experienced splicing workers, we provide strongest and safest wire rope slings. Also our sales staffs are professional with lifting equipment, and could provide with customer correct wire rope and slings for their equipment or lifting requirements.





Applications:

1.  Steel wire ropes with diameters from 4mm to 120mm, Diameter and strcuture depends on customers' requirements.

2.  5:1/6:1 safety factors

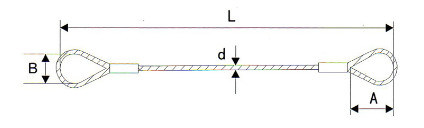

Terminal End Wire Rope Sling Soft Eye With High Breaking Strength 0



Rope Diameter Soft loop dimensions
(mm)
MBL(t) Working load limited(t)
(mm) A B n=5 n=6

5 130 65 1.25 0.25 0.2
6 150 75 1.8 0.36 0.3
7 150 75 2.46 0.5 0.4
8 200 100 3.21 0.6 0.5
9 200 100 4.07 0.8 0.7
10 200 100 5.03 1 0.8
11 230 115 6.08 1.2 1
12 230 115 7.23 1.5 1.2
13 230 115 8.49 1.7 1.4
14 250 125 9.85 2 1.6
16 300 150 12.85 2.6 2.1
18 300 150 16.32 3.3 2.7
20 350 175 20.09 4 3.4
22 350 175 24.27 4.9 4.1
24 450 225 28.96 5.8 4.8
26 450 225 33.96 6.8 5.7
28 500 250 39.36 7.9 6.6
30 500 250 45.17 9 7.5
32 550 275 51.39 10.3 8.6
34 600 300 58.12 11.6 9.7
36 600 300 65.06 13 10.8
38 600 300 72.5 14.5 12.1
40 700 350 80.35 16.1 13.4
42 800 400 88.61 17.7 14.8
44 800 400 97.28 19.5 16.2
46 900 450 106.05 21.2 17.7
48 900 450 116.25 23.3 19.4
50 1000 500 125.43 25.1 21
52 1000 500 135.62 27.1 22.7
54 1000 500 146.84 29.4 24.5
56 1000 500 157.04 31.4 26.2
58 1200 600 169.27 33.9 28.2
60 1200 600 180.49 36.1 30.1
62 1200 600 185.59 37.1 31
64 1300 650 197.82 40 33
66 1300 650 210.06 42 35
68 1400 700 223.32 44.7 37.2
70 1400 700 236.57 47.3 39.4
72 1400 700 249.93 50 41.6
74 1500 750 264.01 52.8 44
76 1500 750 278.38 55.7 46.4
78 1600 800 293.68 58.7 49
80 1600 800 307.95 61.1 51.3
82 1600 800 324.27 64.9 54
84 1700 850 339.57 67.9 56.6
86 1700 850 356.9 71.4 59.5
88 1800 900 373.22 74.6 62.2
90 1800 900 390.55 78.1 65.1
92 1800 900 407.89 81.6 68
94 1900 950 426.24 85.3 71
96 1900 950 444.6 88.9 74.1
98 2000 1000 462.95 92.6 77.2
100 2000 1000 482.33 96.5 80.4
102 2000 1000 501.1 100.4 83.6
104 2100 1050 521.07 104.2 86.9
106 2100 1050 541.47 108.3 90.3
108 2200 1100 561.86 112.4 93.6
110 2200 1100 583.28 116.7 97.2



Terminal End Wire Rope Sling Soft Eye With High Breaking Strength 1















Terminal End Wire Rope Sling Soft Eye With High Breaking Strength 2Terminal End Wire Rope Sling Soft Eye With High Breaking Strength 3Terminal End Wire Rope Sling Soft Eye With High Breaking Strength 4

Terminal End Wire Rope Sling Soft Eye With High Breaking Strength 5
