American Standard Stainless Steel Rigging Fittings Forged Galvanized Finish

Product Details:
Place of Origin: Made in China
Brand Name: SOLAR
Certification: ISO

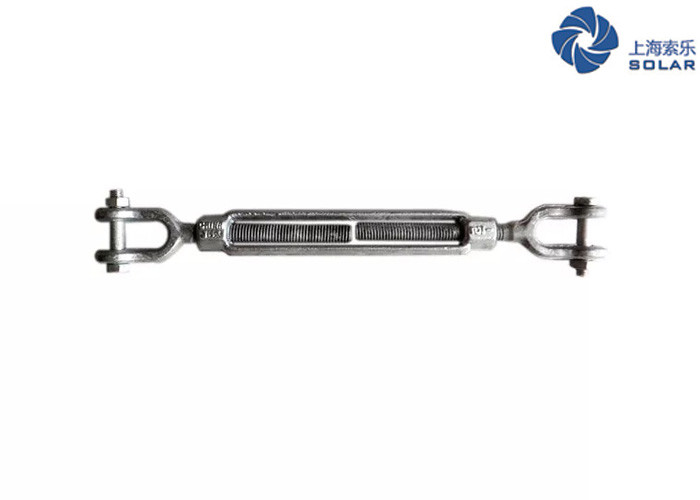

Model Number: US Jaw and Jaw Open Turnbuckle
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Pallet or other way on customers' request
Delivery Time: 3 days
Payment Terms: L/C, D/P, T/T
Supply Ability: depends on Order

Detail Information

Product Name: US Jaw And Jaw Open Turnbuckle Size: 1/4x4 To 2-2/3x24 In
WLL: 0.23~34.2Ton Surface: Eelec Galvanized,Hot Galvanized, Self Color
Material: Alloy Steel Standard: US Standard
Stock Or Not: Some Have Stock Delivery Time: 3 Days
Safety Factor: Normally 1:4 1:6 Condition: New
Usage: Shipping, Marine, Lifting,wide Usage Marking: WLL, Size
Processing: Drop Forged Packing: Pallet/Plastic Bag/Wooden Box , On Your Request
HS Code: 7326191000 Port Of Origin: Shanghai China
High Light:

wire rope rigging hardware

,

stainless steel rigging hardware

Product Description

American Standard US Type UU Jaw Open Turnbuckle WLL 0.23 to 34.2 ton China Supplier Forged Galvanized Rigging Hardware



About Wire Ropes, we also supplying:



6*37+FC (ungalvanized & galvanized)

6*37+IWS

6*37+IWR



6x36WS+IWR

6*25Fi+FC

6*29Fi+FC

6*36WS+FC



6*25Fi+IWR

6*26WS+IWR

6*29Fi+IWR

6*31WS+IWR

6*36WS+IWR



35Wx7 Non-rotating Wire Rope with Many Layers (ungalvanized & galvanized), anti-twist wire rope for crane use. Hoisting/ luffing

4V*39S+5FC

4V*48S+5FC



About Wire Rope Slings:

Steel wire rope slings as a basic material handling tool are most frequently used in marine line. Also they offer a strong, dependable and economical option for most lifting applications. Their popularity is enhanced by the numerous sling configurations available to support a broad range of applications. These configurations include single and multi-part slings (such as round braids, flat braids, Tri-Flex and cable laid slings), grommets, single leg slings, multiple leg bridles, and a wide variety of fittings and attachments.

Relative to other types of slings, wire rope slings are average in strength/weight ratio, average in abrasion and cut resistance, poorest in elongation and flexibility, and average for high temperatures (IWRC only).



Features:

A mechanical (or flemish) splice sling is most frequently used and is fabricated by unlaying the rope body into two parts, one having three strands, the other having the remaining three strands and core. The rope is unlayed far enough back to allow the eye to be formed by looping one part in one direction and the other part in the opposite direction and laying the rope back together.
The strands are rolled back around the rope body and a metal sleeve is slipped over the ends and pressed (or swaged) to secure the ends to the sling body. A hydraulic swaging press with special dies is used to bond the sleeve in place. Extreme pressure forces the steel sleeve to flow into the voids between the wires and strands, creating an assembly that maintains most of the wire rope's nominal breaking strength.



Why SOLAR Brand?

As a professional manufacturer for wire rope slings and heavy lift assemblies, SOLAR has been the No.1 wire rope and sling supplier in SH area. Our customers are mostly Shipbuilding, Shipping, Offshore construction, and ship service providers. With swaging machine up to size 120mm and experienced splicing workers, we provide strongest and safest wire rope slings. Also our sales staffs are professional with lifting equipment, and could provide with customer correct wire rope and slings for their equipment or lifting requirements.





Applications:

1. The material is Alloy Steel

2. Dip Coating, Painting, Galvanized, Hot-Dipped

3. Safety Factor 4 times or 6 times, Testing load 2.5 times of WLL



American Standard Stainless Steel Rigging Fittings Forged Galvanized Finish 0





Size (in) WLL(t) Weight Each
(kg)
Dimensions(mm)
A B G L1 L2 d BB

1/4*4 0.23 0.16 6.35 11.43 15.75 276.86 175.26 6.35 101.6
5/16*4-1/2 0.36 0.24 7.87 12.7 22.1 313.94 212.34 6.35 114.3
3/8*6 0.54 0.37 9.65 13.72 22.1 409.96 257.56 7.87 152.4
1/2*6 1 0.71 12.7 13.97 26.92 469.9 292.1 9.65 152.4
1/2*9 1 0.79 12.7 13.97 26.92 622.3 368.3 9.65 228.6
1/2*12 1 1.09 12.7 13.97 26.92 774.7 444.5 9.65 304.8
5/8*6 1.59 1.23 16 20.83 33.27 509.27 325.12 12.7 152.4
5/8*9 1.59 1.56 16 20.83 33.27 661.67 401.23 12.7 228.6
5/8*12 1.59 1.77 16 20.83 33.27 814.07 477.52 12.7 304.8
3/4*6 2.36 1.86 19.05 26.16 38.1 546.1 355.6 15.75 152.4
3/4*9 2.36 2.48 19.05 26.16 38.1 698.5 431.8 15.75 228.6
3/4*12 2.36 2.98 19.05 26.16 38.1 850.9 508 15.75 304.8
3/4*18 2.36 3.64 19.05 26.16 38.1 1155.7 660.4 15.75 457.2
7/8*12 3.27 3.71 22.35 31.24 44.45 891.79 542.54 19.05 304.8
7/8*18 3.27 4.89 22.35 31.24 44.45 1196.6 694.94 19.05 457.2
1*6 4.54 4.62 25.4 33.27 52.32 627.89 424.69 22.35 152.4
1*12 4.54 5.68 25.4 33.27 52.32 932.69 577.09 22.35 304.8
1*18 4.54 6.87 25.4 33.27 52.32 1237.5 729.49 22.35 457.2
1*24 4.54 8.2 25.4 33.27 52.32 1542.3 881.89 22.35 609.6
1-1/4*12 5.89 9.34 31.75 47.24 71.37 1011.9 643.64 28.45 304.8
1-1/4*18 6.89 11.2 31.75 47.24 71.37 1316.7 796.04 28.45 457.2
1-1/4*24 6.89 12.8 31.75 47.24 71.37 1621.5 948.44 28.45 609.6
1-1/2*12 9.71 13.9 38.1 57.15 71.37 1054.1 673.1 35.05 304.8
1-1/2*18 9.71 16.7 38.1 57.15 71.37 1358.9 825.5 35.05 457.2
1-1/2*24 9.71 18.9 38.1 57.15 71.37 1663.7 977.9 35.05 609.6
1-3/4*18 12.7 24.5 44.45 66.04 85.85 1355.9 898.65 41.15 457.2
1-3/4*24 12.7 28.7 44.45 66.04 85.85 1660.7 1051.1 41.15 609.6
2*24 16.78 42.7 50.8 66.55 93.73 1766.3 1156.7 50.8 609.6
2-1/2*24 27.22 74.8 63.5 77.72 112.78 1853.7 1244.1 57.15 609.6
2-2/3*24 34.02 89.8 69.85 93.47 106.43 1898.6 1289.1 69.85 609.6





American Standard Stainless Steel Rigging Fittings Forged Galvanized Finish 1







American Standard Stainless Steel Rigging Fittings Forged Galvanized Finish 2
