10~120Ton Lifting And Rigging Hardware 120 Ton High Strength Open Turnbuckle

Product Details:
Place of Origin: Made in China
Brand Name: SOLAR
Certification: ISO
Model Number: Open Turnbuckle U Jaw&Jaw / OO Eye&Eye/ OU Eye&Jaw Type Q/320201AZH03-2003
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Pallet or other way on customers' request
Delivery Time: 3 days
Payment Terms: L/C, D/P, T/T
Supply Ability: depends on Order

Detail Information

Product Name: Chinese Open Turnbuckle WLL: 10~120Ton
Size: Eye&Eye/ Jaw& Eye/ Jaw& Jaw Surface: Eelec Galvanized,Hot Galvanized, Self Color
Material: Alloy Steel Standard: US Standard
Stock Or Not: Some Have Stock Delivery Time: 3 Days
Safety Factor: Normally 1:4 1:6 Condition: New
Usage: Shipping, Marine, Lifting,wide Usage Marking: WLL, Size
Processing: Drop Forged Packing: Pallet/Plastic Bag/Wooden Box , On Your Request
HS Code: 7326191000 Port Of Origin: Shanghai China
High Light:

wire rope rigging hardware

,

stainless steel rigging hardware

Product Description

120Ton High Strength Chinese Standard Open Turnbuckle Jaw&Jaw UU Type Q/320201AZH03-2003 Rigging Hardware





Features:

A mechanical (or flemish) splice sling is most frequently used and is fabricated by unlaying the rope body into two parts, one having three strands, the other having the remaining three strands and core. The rope is unlayed far enough back to allow the eye to be formed by looping one part in one direction and the other part in the opposite direction and laying the rope back together.
The strands are rolled back around the rope body and a metal sleeve is slipped over the ends and pressed (or swaged) to secure the ends to the sling body. A hydraulic swaging press with special dies is used to bond the sleeve in place. Extreme pressure forces the steel sleeve to flow into the voids between the wires and strands, creating an assembly that maintains most of the wire rope's nominal breaking strength.



Why SOLAR Brand?

As a professional manufacturer for wire rope slings and heavy lift assemblies, SOLAR has been the No.1 wire rope and sling supplier in SH area. Our customers are mostly Shipbuilding, Shipping, Offshore construction, and ship service providers. With swaging machine up to size 120mm and experienced splicing workers, we provide strongest and safest wire rope slings. Also our sales staffs are professional with lifting equipment, and could provide with customer correct wire rope and slings for their equipment or lifting requirements.





Applications:

1. The material is Alloy Steel

2. Dip Coating, Painting, Galvanized, Hot-Dipped

3. Safety Factor 4 times or 6 times, Testing load 2.5 times of WLL





10~120Ton Lifting And Rigging Hardware 120 Ton High Strength Open Turnbuckle 0



WLL(t) L1/L3/L5 L2/L4/L6 Dimension(mm)
A B D E F

10 800 600 70 50 40 50 110
10 1000 700 70 50 40 50 110
16 860 660 80 56 45 56 120
16 1120 820 80 56 45 56 120
25 1100 800 90 60 56 60 140
25 1300 900 90 60 56 60 140
40 1180 880 100 70 64 70 160
40 1380 980 100 70 64 70 160
50 1300 900 110 75 68 80 180
50 1400 1000 110 75 68 80 180
60 1480 1080 120 80 72 80 180
60 1880 1280 120 80 72 80 180
80 1580 1180 140 85 80 90 210
80 1980 1380 140 85 80 90 210
100 1620 1220 160 90 85 100 240
100 2020 1420 160 90 85 100 240
120 1680 1280 180 95 90 100 280
120 2080 1480 180 95 90 100 280

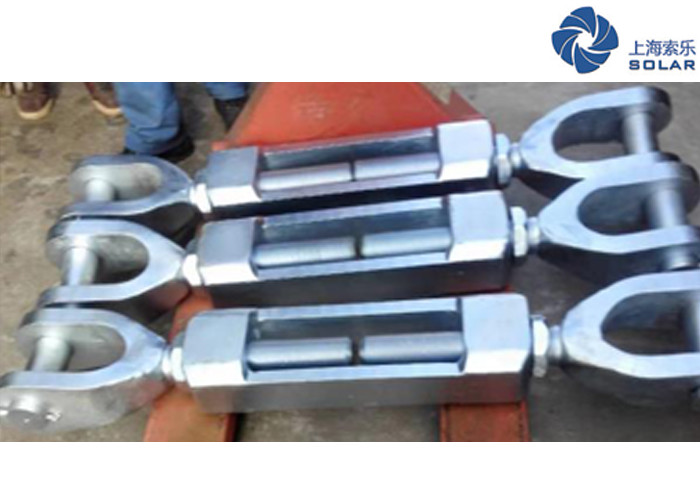

10~120Ton Lifting And Rigging Hardware 120 Ton High Strength Open Turnbuckle 1

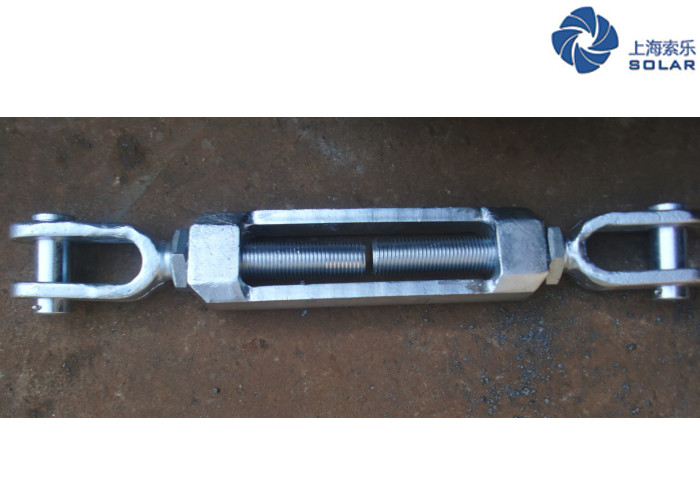

10~120Ton Lifting And Rigging Hardware 120 Ton High Strength Open Turnbuckle 2

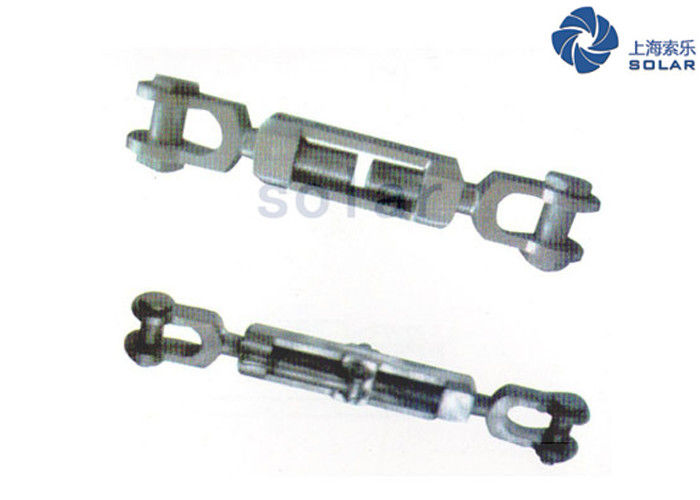

10~120Ton Lifting And Rigging Hardware 120 Ton High Strength Open Turnbuckle 3

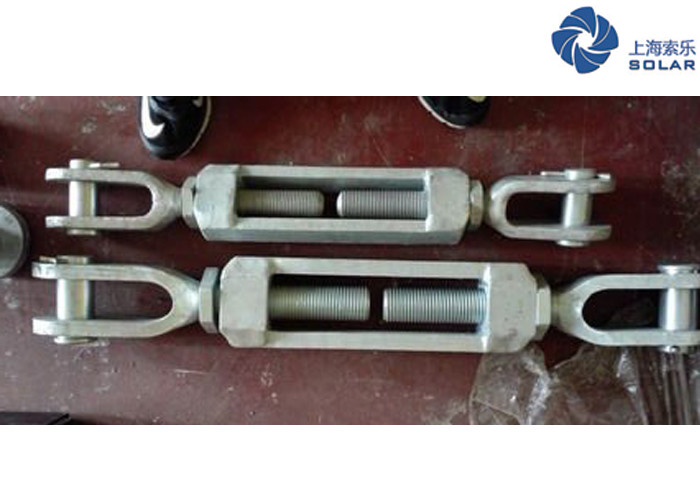

10~120Ton Lifting And Rigging Hardware 120 Ton High Strength Open Turnbuckle 4



10~120Ton Lifting And Rigging Hardware 120 Ton High Strength Open Turnbuckle 5



10~120Ton Lifting And Rigging Hardware 120 Ton High Strength Open Turnbuckle 6
