Double Hook Heavy Type Marine Anchor Chain 12.5~162mm Triangle Steel Plate
Double Hook Heavy Type Marine Anchor Chain 12.5~162mm Triangle Steel Plate Double Hook Heavy Type Marine Anchor Chain 12.5~162mm Triangle Steel Plate Double Hook Heavy Type Marine Anchor Chain 12.5~162mm Triangle Steel Plate

Double Hook Heavy Type Marine Anchor Chain 12.5~162mm Triangle Steel Plate

Product Details:
Place of Origin: Made in China
Brand Name: SOLAR
Certification: LR NK CCS BV ABS KR Cert
Model Number: Dia12.5mm~162mm
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pcs
Price: Negotiable
Packaging Details: Bulk, Bag, on your request
Delivery Time: 30 days
Payment Terms: L/C, T/T
Supply Ability: depends on order
Contact Now

Detail Information
Product Name: Marine Triangle Steel Three Holes Plate For Anchor Chain Mooring Grade: Grade 1, Grade 2 And Grade 3 Stud Link Anchor Chain
Specification: 12.5~162mm Surface Treatment: Self Color/Painting/Gavanized
Model NO.: U1:CM370/ U2:CM490/ U3:CM690 Type: Anchor Chain Accessories
Material: Steel Customized: Yes
Standard: ASTM, GB, DIN, JIS, ISO Certificate: Class Certificate: LR, ABS, DNV, BV, CCS, NK, KR
Usage: Offshore, Shipbuilding, Moorin, Mairne, Adjusting Chains, Connecting And Traction, Lifting, Wire Rope Fittings Chain Accessory Keywords: Anchor Shackle, Anchor Chain Supplier, Anchor Chain Manufacturer, Anchor Chain Factory
Package: Bulk, Bag, On Your Request Port Of Origin: Shanghai China
HS Code: 73269090
High Light:

stainless steel marine chain

,

stainless steel mooring chain

Product Description

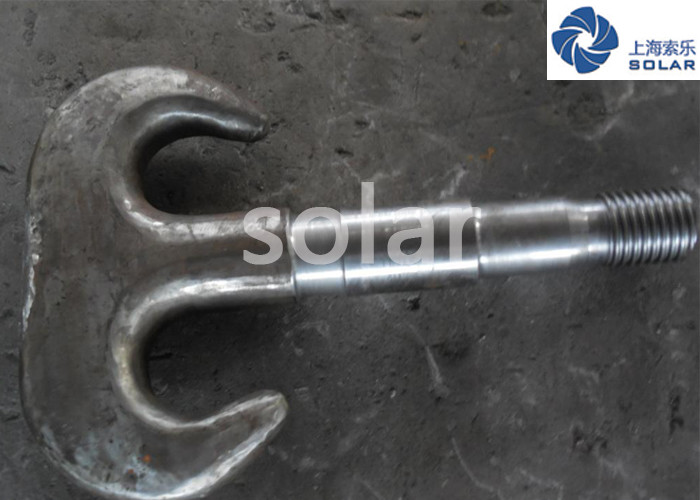

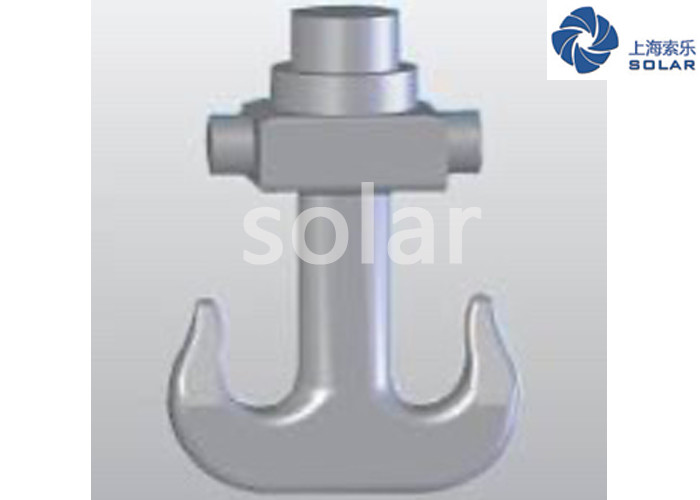

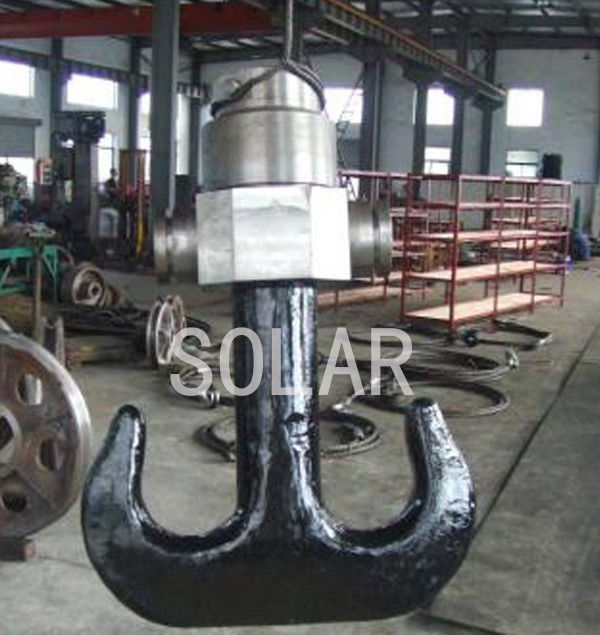

Double Hook Heavy Type Marine Ship Mooring​



Basic Information

Triangle Steel Plate is mainly used to connect with Anchor Chains for Three Points Mooring.





Double Hook Heavy Type Marine Anchor Chain 12.5~162mm Triangle Steel Plate 0



W.L.L. Dimensions
D M d L B
(ton.) (mm.) (mm.) (mm.) (mm.) (mm.)
5 60 50 56 230 246
10 90 70 80 325 340
16 115 85 95 420 460
20 125 95 110 470 505
32 160 130 135 590 645
50 200 165 170 725 810
80 250 200 200 860 980
100 280 210 220 900 1100
125 300 200 220 1260 1390
160 350 200 240 1357 1490
200 350 200 260 1460 1510
250 400 270 280 1730 1680





Double Hook Heavy Type Marine Anchor Chain 12.5~162mm Triangle Steel Plate 1Double Hook Heavy Type Marine Anchor Chain 12.5~162mm Triangle Steel Plate 2Double Hook Heavy Type Marine Anchor Chain 12.5~162mm Triangle Steel Plate 3





Double Hook Heavy Type Marine Anchor Chain 12.5~162mm Triangle Steel Plate 4



Double Hook Heavy Type Marine Anchor Chain 12.5~162mm Triangle Steel Plate 5



Double Hook Heavy Type Marine Anchor Chain 12.5~162mm Triangle Steel Plate 6



Double Hook Heavy Type Marine Anchor Chain 12.5~162mm Triangle Steel Plate 7





Double Hook Heavy Type Marine Anchor Chain 12.5~162mm Triangle Steel Plate 8



Double Hook Heavy Type Marine Anchor Chain 12.5~162mm Triangle Steel Plate 9









Other Data for your reference:










Double Hook Heavy Type Marine Anchor Chain 12.5~162mm Triangle Steel Plate 10





Technical Specifications







Double Hook Heavy Type Marine Anchor Chain 12.5~162mm Triangle Steel Plate 11







Double Hook Heavy Type Marine Anchor Chain 12.5~162mm Triangle Steel Plate 12



Double Hook Heavy Type Marine Anchor Chain 12.5~162mm Triangle Steel Plate 13Double Hook Heavy Type Marine Anchor Chain 12.5~162mm Triangle Steel Plate 14
