6x24+7FC Cargo Lashing Steel Wire Rope Galvanized / Bright Finish

Product Details:
Place of Origin: Made in China
Brand Name: SOLAR
Certification: ABS(USA), BV(France), CCS(China), DNV(Norway), GL(Germany), KR(Korea), LR(U. K. ), NK(Japan), RINA(Italy), RS(Russia) & Works Certificate.
Model Number: Bright 6x24+7FC Steel Wire Rope EIPS Fiber Core
Payment & Shipping Terms:
Minimum Order Quantity: 1 meter
Price: Negotiable
Packaging Details: Pallet, Reels
Delivery Time: within 7 days
Payment Terms: L/C, D/P, T/T
Supply Ability: Depends on Order

Detail Information

Product Name: 6x24+7FC Steel Wire Rope EIPS Fiber Core Wire Rope Structure: 6x24+7FC
Standard: GB/DIN/BS/JIS/ASTM/AISI/API/ISO Technique: Galvanized/Ungalvanized/Bright
Diameter: 8mm~80mm, On Your Request Length: Depends On Order, 1~1000 Meter
Tensile Strength: 1470~1870Mpa Core Type: Fiber Core
Packing: Reel/Pallet Application: Tying And Binding,lifting, Marine,offshore, Shipping, Construction, Mining
Company Type: Manufacturer, Supplier, Expoter Port Of Origin: Shanghai China
HS Code: 73121000
High Light:

steel cable wire rope

,

steel rope cable

Product Description

6x24+7FC Steel Wire Rope EIPS Fiber Core



6x24 wire rope is an inexpensive galvanized/ Ungalvanized steel wire rope. It is typically used in marine applications where its very flexible characteristic makes it suitable for cargo lashing, mooring lines, lifting slings, small core single layer winches, fishing, and tow lines.

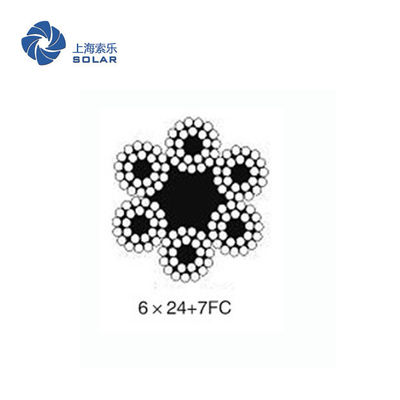

Construction: 6x24+FC /15+9+FC
Grade: EIPS/ or other grade on your request
Finish: Galvanized/Bright
Use of swivel is not permitted.





EIPS = Extra Improved Plow Steel

FC = Fiber Core

IWRC = Independent Wire Rope Core





Applications:

1. Steel wire ropes with diameters from 8mm to 80mm, Diameter and strcuture depends on customers' requirements.

2. 4:1/5:1/6:1 safety factors



Environmental Considerations

IWRC must not be used at temperatures above 400°F.

FC must not be used at temperatures above 180°F.

Fiber core ropes should not be subjected to degreasing solvents



6x24+7FC Cargo Lashing Steel Wire Rope Galvanized / Bright Finish 0







6x24+7FC Cargo Lashing Steel Wire Rope Galvanized / Bright Finish 1

Nominal Diameter Approx.Weight Nominal Tensile Strength of Rope(MPa)
1470 1570 1670 1770 1870
D NF SF Minimun Breaking Load of Rope
mm kg/100m (KN)

8 20.4 19.5 26.3 28.1 29.9 31.7 33.5
9 25.8 24.6 33.3 35.6 37.9 40.1 42.4
10 31.8 30.4 41.2 44 46.8 49.6 52.4
11 38.5 36.8 49.8 53.2 56.6 60 63.4
12 45.8 43.8 59.3 63.3 67.3 71.4 75.4
13 53.7 51.4 69.6 74.3 79 83.8 88.5
14 62.3 59.6 80.7 86.2 91.6 97.1 103
16 81.4 77.8 105 113 120 127 134
18 103 98.5 133 142 152 161 170
20 127 122 165 176 187 198 209
22 154 147 199 213 226 240 253
24 183 175 237 253 269 285 302
26 215 206 278 297 316 335 354
28 249 238 323 345 367 389 411
30 286 274 370 396 421 446 471
32 326 311 421 450 479 507 536
34 368 351 476 508 541 573 605
36 412 394 533 570 606 642 679
38 459 439 594 635 675 716 756
40 509 486 659 703 748 793 838
42 561 536 726 775 825 874 924
44 616 589 797 851 905 959 1010
46 673 643 871 930 989 1050 1110
48 733 700 948 1010 1080 1140 1210
50 795 760 1030 1100 1170 1240 1310
52 860 822 1110 1190 1260 1340 1420
54 927 886 1200 1280 1360 1450 1530
56 997 953 1290 1380 1470 1550 1640
58 1070 1020 1380 1480 1570 1670 1760
60 1140 1090 1480 1580 1680 1780 1880
62 1220 1170 1580 1690 1800 1910 2010
64 1300 1250 1690 1800 1920 2030 2140
66 1390 1320 1790 1910 2040 2160 2280
68 1470 1410 1900 2030 2160 2290 2420
70 1560 1490 2020 2150 2290 2430 2570
72 1650 1580 2130 2280 2420 2570 2710
74 1740 1660 2250 2410 2560 2710 2870
76 1840 1760 2380 2540 2700 2860 3020
78 1930 1850 2500 2670 2840 3020 3190
80 2040 1950 2630 2810 2990 3170 3350





6x24+7FC Cargo Lashing Steel Wire Rope Galvanized / Bright Finish 26x24+7FC Cargo Lashing Steel Wire Rope Galvanized / Bright Finish 3



6x24+7FC Cargo Lashing Steel Wire Rope Galvanized / Bright Finish 4










We can also provide Steel Wire Rope Slings

HOW TO ORDER WIRE ROPE SLINGS

  • Define rope diameter. 1-1/4" or 24mm in example
  • Rope Structure. 6X37 IWRC EIPS construction for example.
  • laid RHLL(Z) or LHLL(S) for cable laid rope.
  • Sling Length (length could be 0.5~1000meter, feet and meter both OK)
  • Terminations, end with soft eye or Hard eye (Thimble Eye)

6x24+7FC Cargo Lashing Steel Wire Rope Galvanized / Bright Finish 5



6x24+7FC Cargo Lashing Steel Wire Rope Galvanized / Bright Finish 6



6x24+7FC Cargo Lashing Steel Wire Rope Galvanized / Bright Finish 7



6x24+7FC Cargo Lashing Steel Wire Rope Galvanized / Bright Finish 8









6x24+7FC Cargo Lashing Steel Wire Rope Galvanized / Bright Finish 9









6x24+7FC Cargo Lashing Steel Wire Rope Galvanized / Bright Finish 10
