Durable Wire Rope Cable Long Service Life With High Breaking Load

Product Description

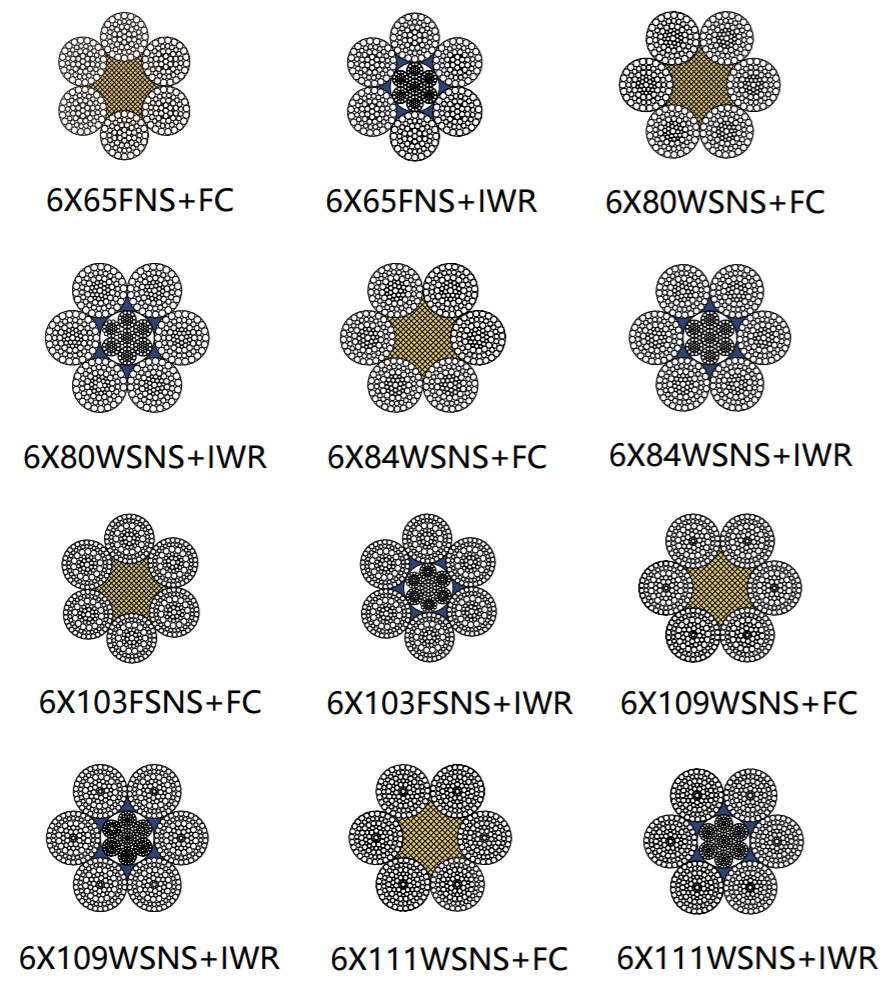

Large Diamater Steel Wire Rope of Construction

6x65FNS+FC       6x65FNS+IWRC

6x80WSNS+FC   6x80WSNS+IWRC

6x84WSNS+FC   6x84WSNS+IWRC

6x103FSNS+FC/IWRC

6x109SWSNS+FC/ IWRC

6x111SWSNS+FC/ IWRC





Rope Type:  6x65FNS 6x80WSNS 6x84WSNS 6x103FSNS 6x109SWSNS 6x111SWSNS Point Line Contacted Wire Rope



Rope Construction:

6x65FNS+FC 6x65FNS+IWRC

6x80WSNS+FC 6x80WSNS+IWRC

6x84WSNS+FC 6x84WSNS+IWRC

6x103FSNS+FC/IWRC

6x109SWSNS+FC/ IWRC

6x111SWSNS+FC/ IWRC



Application:

1. It is used in various equipment for heavy rigging,heavy-duty lifting, hoisting, derricking. The Rope with wirr core can be used under the shock load, heated and squeezed conditions such as electric shares.

2. Steel wire ropes with large diameters from 60mm to 120mm

3. 4:1/5:1/6:1 safety factors



EIPS = 1960Mpa (Extra Improved Plow Steel)

EEIPS= 2160Mpa

IPS=1870Mpa

PS=1770Mpa





FC = Fiber Core

IWRC = Independent Wire Rope Core







Environmental Considerations

IWRC must not be used at temperatures above 400°F.

FC must not be used at temperatures above 180°F.

Fiber core ropes should not be subjected to degreasing solvents





Nominal Diameter	Approx.Weight		Nominal Tensile Strength of Rope (MPa)
			1570		1670		1770		1870		1960
			Minimun Breaking Load of Rope
D	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS	FC	IWR/IWS
mm	kg/100m		(KN)
60	1370	1570	1800	1960	1910	2080	2030	2200	2140	2330	2240	2440
62	1460	1670	1920	2090	2040	2220	2160	2350	2290	2490	2400	2610
64	1560	1780	2040	2230	2180	2370	2310	2510	2440	2650	2550	2780
66	1660	1890	2170	2370	2310	2520	2450	2670	2590	2820	2720	2950
68	1760	2010	2310	2510	2460	2670	2600	2830	2750	2990	2880	3140
70	1860	2130	2450	2660	2600	2830	2760	3000	2910	3170	3050	3320
72	1970	2260	2590	2820	2750	3000	2920	3170	3080	3350	3230	3520
74	2080	2380	2730	2970	2910	3160	3080	3350	3260	3540	3410	3710
76	2190	2510	2880	3140	3070	3340	3250	3540	3430	3740	3600	3920
78	2310	2650	3040	3300	3230	3520	3420	3730	3620	3940	3790	4130
80	2430	2780	3200	3480	3400	3700	3600	3920	3810	4140	3990	4340
82	2560	2920	3360	3650	3570	3890	3780	4120	4000	4350	4190	4560
84	2680	3070	3520	3830	3750	4080	3970	4320	4200	4570	4400	4790
86	2810	3220	3690	4020	3930	4270	4160	4530	4400	4790	4610	5020
88	2940	3370	3870	4210	4110	4470	4360	4740	4610	5010	4830	5250
90	3080	3520	4040	4400	4300	4680	4560	4960	4820	5240	5050	5490
92	3220	3680	4230	4600	4490	4890	4760	5180	5030	5480	5280	5740
94	3360	3840	4410	4800	4690	5110	4970	5410	5250	5720	5510	5990
96	3500	4010	4600	5010	4890	5330	5190	5640	5480	5960	5740	6250
98	3650	4180	4790	5220	5100	5550	5410	5880	5710	6210	5990	6510
100	3800	4350	4990	5430	5310	5780	5630	6120	5950	6470	6230	6780
102	3950	4530	5190	5650	5530	6010	5860	6370	6190	6730	6480	7060
104	4110	4700	5400	5880	5740	6250	6090	6620	6430	7000	6740	7330
106	4270	4890	5610	6100	5970	6490	6320	6880	6680	7270	7000	7620
108	4430	5070	5820	6340	6190	6740	6570	7140	6940	7550	7270	7910
110	4600	5260	6040	6570	6430	6990	6810	7410	7200	7830	7540	8210
112	4770	5460	6260	6810	6660	7250	7060	7680	7460	8120	7820	8510
114	4940	5650	6490	7060	6900	7510	7310	7960	7730	8410	8100	8810
116	5110	5850	6720	7310	7150	7780	7570	8240	8000	8710	8390	9130
118	5290	6060	6950	7560	7390	8050	7840	8530	8280	9010	8680	9440
120	5470	6260	7190	7820	7650	8320	8110	8820	8560	9320	8980	9770

















We can also provide Steel Wire Rope Slings

​HOW TO ORDER WIRE ROPE SLINGS

• Define rope diameter. 1-1/4" or 24mm in example
• Rope Structure. 6X37 IWRC EIPS construction for example.
• laid RHLL(Z) or LHLL(S) for cable laid rope.
• Sling Length (length could be 0.5~1000meter, feet and meter both OK)
• Terminations, end with soft eye or Hard eye (Thimble Eye)
