Large Diameters High Tensile Steel Cable 4:1/5:1/6:1 Safety Factors For Heavy Rigging
Large Diameters High Tensile Steel Cable 4:1/5:1/6:1 Safety Factors For Heavy Rigging Large Diameters High Tensile Steel Cable 4:1/5:1/6:1 Safety Factors For Heavy Rigging Large Diameters High Tensile Steel Cable 4:1/5:1/6:1 Safety Factors For Heavy Rigging

Large Diameters High Tensile Steel Cable 4:1/5:1/6:1 Safety Factors For Heavy Rigging

Product Details:
Place of Origin: Made in China
Brand Name: SOLAR
Certification: ABS(USA), BV(France), CCS(China), DNV(Norway), GL(Germany), KR(Korea), LR(U. K. ), NK(Japan), RINA(Italy), RS(Russia) & Works Certificate.
Model Number: 8x65FNS+FC 8x65FNS+IWRC 8x80WSNS+FC 8x80WSNS+IWRC 8x84WSNS+FC 8x84WSNS+IWRC 8x103FSNS+FC/IWRC 8x109 8x111SWSNS Steel Wire Rope
Payment & Shipping Terms:
Minimum Order Quantity: 1 meter
Price: Negotiable

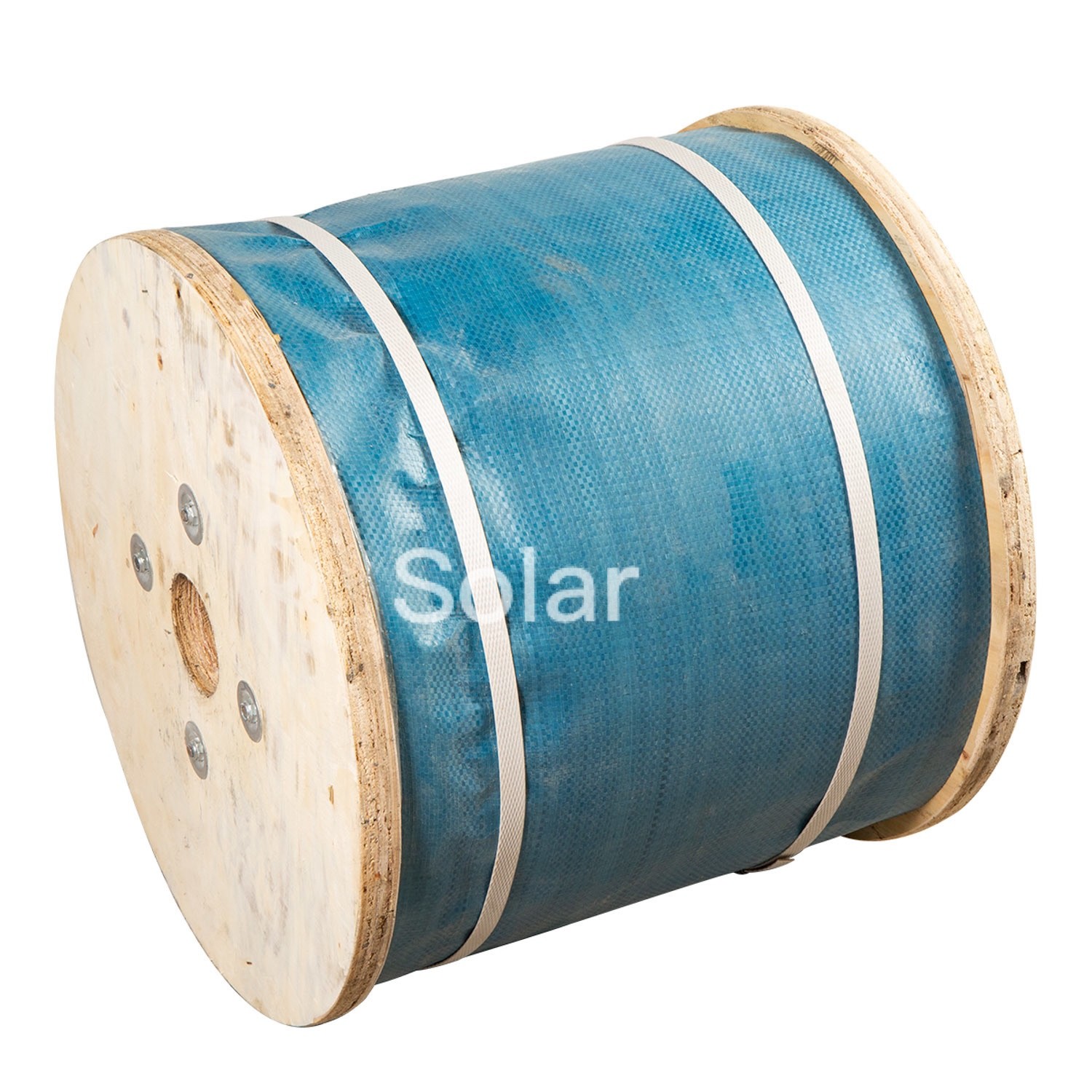

Packaging Details: Pallet, Reels
Delivery Time: within 7 days
Payment Terms: L/C, D/P, T/T
Supply Ability: Depends on Order
Contact Now

Detail Information
Product Name: 8x65FNS+FC 8x65FNS+IWRC 8x80WSNS+FC 8x80WSNS+IWRC 8x84WSNS+FC 8x84WSNS+IWRC 8x103FSNS+FC/IWRC 8x109 8x111SWSNS Steel Wire Rope Wire Rope Structure: 8x65FNS 8x80WSNS 8x84WSNS 8x103FSNS 8x109SWSNS 8x111SWSNS
Standard: GB/DIN/BS/JIS/ASTM/AISI/API/ISO Technique: Galvanized/Ungalvanized/Bright
Diameter: 60mm~200mm, On Your Request Length: Depends On Order， 300~2000meter
Tensile Strength: 1570Mpa 1670Mpa 1770Mpa 1870Mpa~1960Mpa PS IPS EIPS Core Type: Fiber Core/IWRC
Packing: Reel/Pallet Application: Mine Lifting, High-furnace Hoist, Lifting, Marine，offshore，Oil Drilling, Shipping, Construction， Mining
Company Type: Manufacturer, Supplier, Expoter Port Of Origin: Shanghai China
HS Code: 73121000
Highlight:

steel cable wire rope

,

steel core wire rope

Product Description

8x65FNS+FC 8x65FNS+IWRC 8x80WSNS+FC 8x80WSNS+IWRC 8x84WSNS+FC 8x84WSNS+IWRC 8x103FSNS+FC/IWRC 8x109 8x111SWSNS

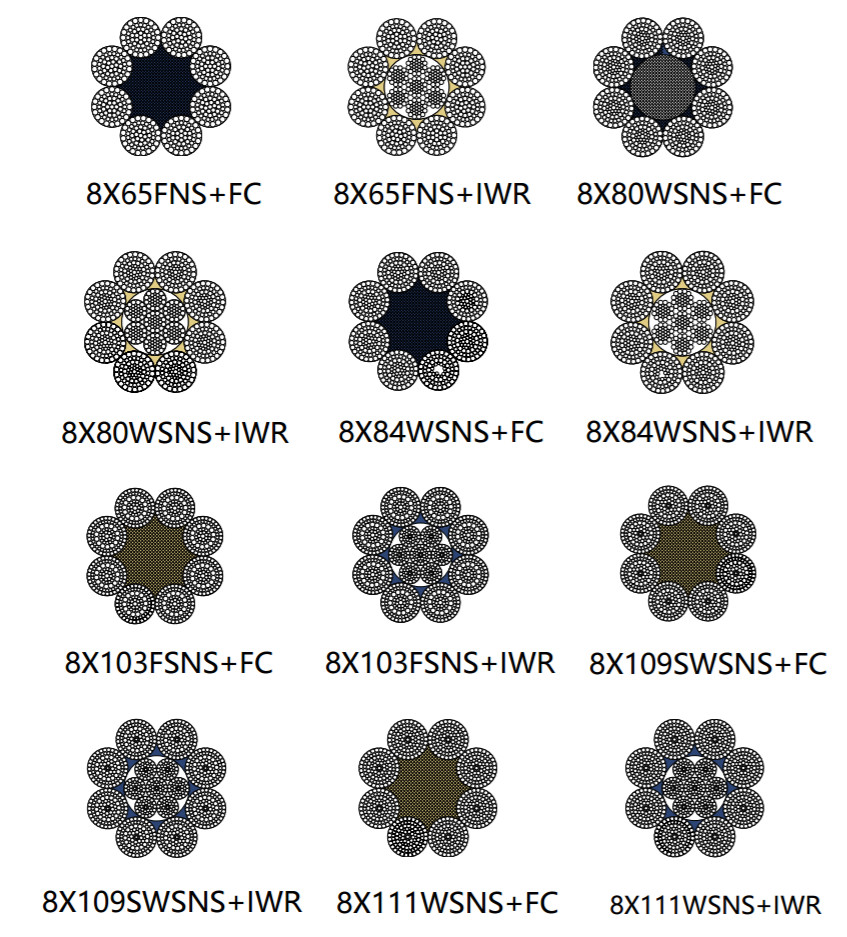

Large Diamater Steel Wire Rope Structure of

8x65FNS+FC             8x65FNS+IWRC

8x80WSNS+FC          8x80WSNS+IWRC

8x84WSNS+FC          8x84WSNS+IWRC

8x103FSNS+FC         8x103FSNS+IWRC

8x109SWSNS+FC     8x109SWSNS+IWRC

8x111SWSNS+FC      8x111SWSNS+IWRC





Rope Type:  8x65FNS 8x80WSNS 8x84WSNS 8x103FSNS 8x109SWSNS 8x111SWSNS  Point Line Contacted Wire Rope



Rope Construction:

8x65FNS+FC            8x65FNS+IWRC

8x80WSNS+FC        8x80WSNS+IWRC

8x84WSNS+FC        8x84WSNS+IWRC

8x103FSNS+FC        8x103FSNS+IWRC

8x109SWSNS+FC    8x109SWSNS+IWRC

8x111SWSNS+FC     8x111SWSNS+IWRC



Application:

1. It is used in various equipment for heavy rigging,heavy-duty lifting, hoisting, derricking. The Rope with wirr core can be used under the shock load, heated and squeezed conditions such as electric shares.

2. Steel wire ropes with large diameters from 60mm to 120mm

3. 4:1/5:1/6:1 safety factors





EIPS = 1960Mpa (Extra Improved Plow Steel)

EEIPS= 2160Mpa

IPS=1870Mpa

PS=1770Mpa





FC = Fiber Core

IWRC = Independent Wire Rope Core







Environmental Considerations

IWRC must not be used at temperatures above 400°F.

FC must not be used at temperatures above 180°F.

Fiber core ropes should not be subjected to degreasing solvents



Large Diameters High Tensile Steel Cable 4:1/5:1/6:1 Safety Factors For Heavy Rigging 0



Large Diameters High Tensile Steel Cable 4:1/5:1/6:1 Safety Factors For Heavy Rigging 1



Nominal Diameter Approx.Weight Nominal Tensile Strength of Rope (MPa)
1570 1670 1770 1870 1960
Minimun Breaking Load of Rope
D FC IWR/IWS FC IWR/IWS FC IWR/IWS FC IWR/IWS FC IWR/IWS FC IWR/IWS
mm kg/100m (KN)

60 1330 1590 1530 1900 1620 2020 1720 2140 1820 2260 1910 2370
62 1420 1700 1630 2030 1730 2160 1840 2290 1940 2420 2030 2530
64 1520 1810 1740 2160 1850 2300 1960 2440 2070 2570 2170 2700
66 1610 1930 1850 2300 1960 2440 2080 2590 2200 2740 2310 2870
68 1710 2050 1960 2440 2080 2590 2210 2750 2330 2910 2450 3050
70 1810 2170 2080 2580 2210 2750 2340 2910 2470 3080 2590 3230
72 1920 2300 2200 2730 2340 2910 2480 3080 2620 3260 2740 3410
74 2030 2430 2320 2890 2470 3070 2620 3260 2760 3440 2900 3610
76 2140 2560 2450 3050 2600 3240 2760 3440 2920 3630 3060 3800
78 2250 2700 2580 3210 2740 3410 2910 3620 3070 3820 3220 4010
80 2370 2840 2710 3380 2890 3590 3060 3810 3230 4020 3390 4210
82 2490 2980 2850 3550 3030 3770 3210 4000 3390 4220 3560 4430
84 2610 3130 2990 3720 3180 3960 3370 4200 3560 4430 3730 4650
86 2740 3280 3140 3900 3330 4150 3530 4400 3730 4650 3910 4870
88 2870 3430 3280 4090 3490 4350 3700 4610 3910 4870 4100 5100
90 3000 3590 3430 4270 3650 4550 3870 4820 4090 5090 4290 5330
92 3130 3750 3590 4460 3820 4750 4040 5030 4270 5320 4480 5570
94 3270 3910 3750 4660 3980 4960 4220 5250 4460 5550 4680 5820
96 3410 4080 3910 4860 4160 5170 4400 5480 4650 5790 4880 6070
98 3550 4250 4070 5070 4330 5390 4590 5710 4850 6030 5080 6320
100 3700 4430 4240 5280 4510 5610 4780 5950 5050 6280 5290 6590
102 3850 4610 4410 5490 4690 5840 4970 6190 5250 6540 5510 6850
104 4000 4790 4580 5710 4880 6070 5170 6430 5460 6800 5720 7120
106 4160 4980 4760 5930 5070 6300 5370 6680 5670 7060 5950 7400
108 4320 5170 4940 6150 5260 6540 5570 6940 5890 7330 6170 7680
110 4480 5360 5130 6380 5460 6790 5780 7200 6110 7600 6400 7970
115 4890 5860 5610 6980 5960 7420 6320 7870 6680 8310 7000 8710
120 5330 6380 6100 7600 6490 8080 6880 8560 7270 9050 7620 9480
125 5780 6920 6620 8240 7050 8770 7470 9290 7890 9820 8270 10300
130 6250 7490 7160 8920 7620 9480 8080 10100 8530 10600 8940 11100
135 6740 8070 7730 9610 8220 10200 8710 10800 9200 11500 9640 12000
140 7250 8680 8310 10300 8840 11000 9370 11700 9900 12300 10400 12900
145 7780 9310 8910 11100 9480 11800 10000 12500 10600 13200 11100 13800
150 8330 9970 9540 11900 10100 12600 10800 13400 11400 14100 11900 14800
155 8890 10600 10200 12700 10800 13500 11500 14300 12100 15100 12700 15800
160 9470 11300 10900 13500 11500 14400 12200 15200 12900 16100 13500 16900
165 10100 12100 11500 14400 12300 15300 13000 16200 13700 17100 14400 17900
170 10700 12800 12300 15200 13000 16200 13800 17200 14600 18200 15300 19000
175 11300 13600 13000 16200 13800 17200 14600 18200 15500 19200 16200 20200
180 12000 14400 13700 17100 14600 18200 15500 19300 16400 20400 17100 21300
185 12700 15200 14500 18100 15400 19200 16400 20400 17300 21500 18100 22500
190 13400 16000 15300 19000 16300 20300 17300 21500 18200 22700 19100 23800
195 14100 16800 16100 20100 17100 21300 18200 22600 19200 23900 20100 25000
200 14800 17700 17000 21100 18000 22400 19100 23800 20200 25100 21200 26300

Large Diameters High Tensile Steel Cable 4:1/5:1/6:1 Safety Factors For Heavy Rigging 2Large Diameters High Tensile Steel Cable 4:1/5:1/6:1 Safety Factors For Heavy Rigging 3





Large Diameters High Tensile Steel Cable 4:1/5:1/6:1 Safety Factors For Heavy Rigging 4














We can also provide Steel Wire Rope Slings

​HOW TO ORDER WIRE ROPE SLINGS

  • Define rope diameter. 1-1/4" or 24mm in example
  • Rope Structure. 6X37 IWRC EIPS construction for example.
  • laid RHLL(Z) or LHLL(S) for cable laid rope.
  • Sling Length (length could be 0.5~1000meter, feet and meter both OK)
  • Terminations, end with soft eye or Hard eye (Thimble Eye)

Large Diameters High Tensile Steel Cable 4:1/5:1/6:1 Safety Factors For Heavy Rigging 5



Large Diameters High Tensile Steel Cable 4:1/5:1/6:1 Safety Factors For Heavy Rigging 6



Large Diameters High Tensile Steel Cable 4:1/5:1/6:1 Safety Factors For Heavy Rigging 7



Large Diameters High Tensile Steel Cable 4:1/5:1/6:1 Safety Factors For Heavy Rigging 8









Large Diameters High Tensile Steel Cable 4:1/5:1/6:1 Safety Factors For Heavy Rigging 9









Large Diameters High Tensile Steel Cable 4:1/5:1/6:1 Safety Factors For Heavy Rigging 10
