Wire Rope Thimble DIN6899 Heavy Duty Lifting And Rigging Hardware Heart Shaped Thimble

Product Details:
Place of Origin: Made in China
Brand Name: SOLAR
Certification: ISO
Model Number: BS464 Thimble
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Pallet or other way on customers' request
Delivery Time: 3 days
Payment Terms: L/C, D/P, T/T
Supply Ability: depends on Order

Detail Information

Product Name: Wire Rope Thimble DIN6899 Size: 4-32mm
Surface: Electric Galvanized Or Hot Dipped Stock Or Not: Yes
Delivery Time: 3 Days Safety Factor: Normally 1:4
Condition: New Usage: Shipping, Marine, Lifting, Construction Otc
Marking: WLL, Size Packing: Pallet/Plastic Bag/Wooden Box , On Your Request
HS Code: 732690 Port Of Origin: Shanghai China
High Light:

wire rope rigging hardware

,

stainless steel rigging hardware

Product Description

Wire Rope Thimble DIN6899





Features:
Ultimate Load is 4 times the working load limit.

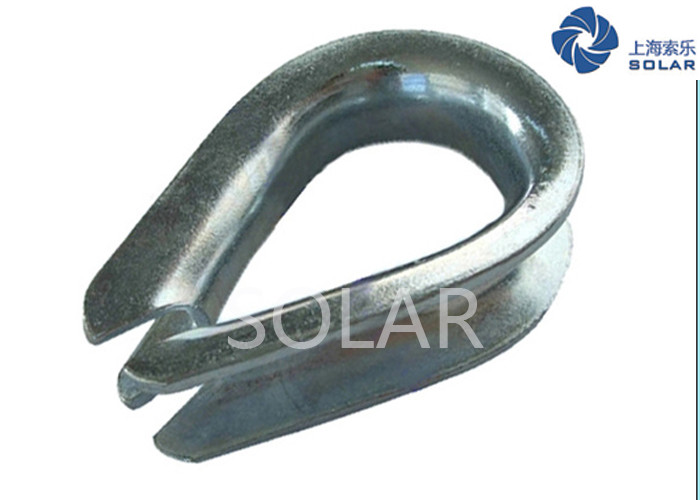

Wire Rope Thimble DIN6899 Heavy Duty Lifting And Rigging Hardware Heart Shaped Thimble 0



Wire Rope Diameter(mm) WEIGHT/100pcs(kg) Dimension(mm)
A B C D E

4 1 25 20 11 7 4
5 1.2 31 24 15 8 5
6 1.7 37 29 18 10 6
7 2.6 44 34 22 11 7
8 3.1 51 38 24 12 8
10 6.8 64 46 30 14 10
12 9.3 76 57 38 18 12
14 12 82 60 40 20 14
16 13.9 89 64 42 22 16
18 22 102 69 45 26 18
20 29.1 115 79 51 28 20
22 39.9 127 89 54 30 22
24 48.4 140 102 64 34 26
26 66.2 152 105 64 34 28
28 78.6 165 115 73 38 30
30 101 178 121 79 44 32
32 124 203 133 93 46 34

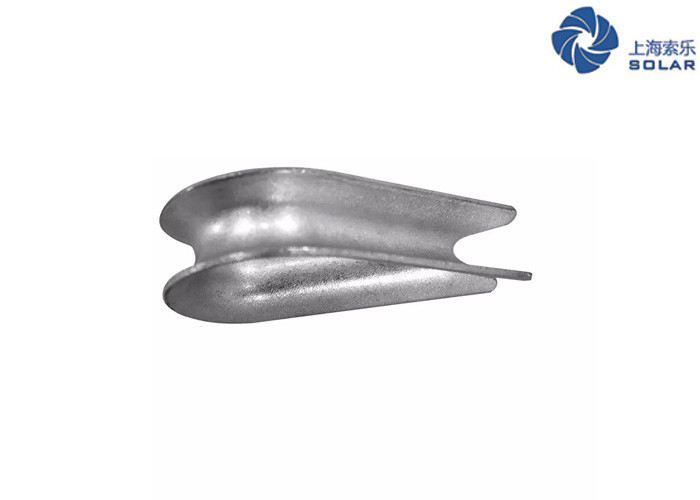

Wire Rope Thimble DIN6899 Heavy Duty Lifting And Rigging Hardware Heart Shaped Thimble 1

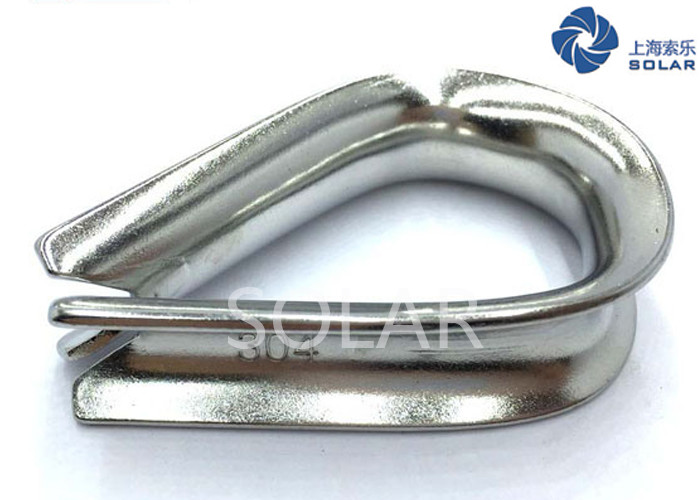

Wire Rope Thimble DIN6899 Heavy Duty Lifting And Rigging Hardware Heart Shaped Thimble 2Wire Rope Thimble DIN6899 Heavy Duty Lifting And Rigging Hardware Heart Shaped Thimble 3Wire Rope Thimble DIN6899 Heavy Duty Lifting And Rigging Hardware Heart Shaped Thimble 4





Wire Rope Thimble DIN6899 Heavy Duty Lifting And Rigging Hardware Heart Shaped Thimble 5
