US Type Lifting And Rigging Hardware Heart Shaped Thimble G414 for Marine

Product Details:
Place of Origin: Made in China
Brand Name: SOLAR
Certification: ISO
Model Number: US Type Heavy Duty Thimble G414
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Pallet or other way on customers' request
Delivery Time: 3 days
Payment Terms: L/C, D/P, T/T
Supply Ability: depends on Order

Detail Information

Product Name: US Type Heavy Duty Thimble G414 Size: 1/8 - 3 1/2 (in)
Wire Rope Dia: 3mm -89mm Surface: Electric Galvanized Or Hot Dipped
Stock Or Not: Some Size Yes Delivery Time: 3 Days
Safety Factor: Normally 1:4 Condition: New
Usage: Shipping, Marine, Lifting, Construction Otc Marking: WLL, Size
Packing: Pallet/Plastic Bag/Wooden Box , On Your Request HS Code: 732690
Port Of Origin: Shanghai China
High Light:

wire rope rigging hardware

,

marine rigging hardware

Product Description

US Type Heavy Duty Thimble G414





Features:
Forged Carbon Steel.
Surface: White & Yellow Zinc Plated, Hot Dip Galvanized.
Used for Webbing Straps, or Tow chains.
Ultimate Load is 4 times the working load limit.

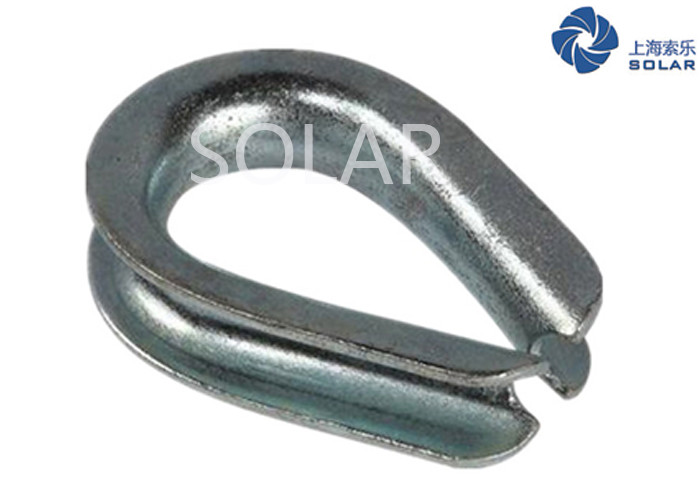

US Type Lifting And Rigging Hardware Heart Shaped Thimble G414 for Marine 0

Wire Rope Diameter(in) Wire Rope Diameter(mm) WEIGHT/100pcs(kg) Dimension(mm)
A B C D E F G H

1/8 3 2.8 49.53 33.53 28.92 17.79 6.35 4 1.29 3.56
3/16 5 2.8 49.53 33.53 28.92 17.78 6.35 4 1.29 3.56
1/4 6 3.06 55.62 41.4 38.1 22.35 10.41 7.11 1.52 5.84
5/16 8 5.1 63.5 47.75 45.97 26.92 12.7 8.64 2.03 7.11
3/8 10 11.34 73.5 54.1 54.1 28.7 16 10.41 2.79 8.64
7/16 11 13.61 82.55 60.45 60.45 31.75 18.29 11.94 3.3 9.65
1/2 13 23.13 92.2 69.85 69.85 38.1 20.57 13.46 3.56 10.41
9/16 14 23.13 92.2 69.85 69.33 38.1 22.35 15 3.56 10.41
5/8 16 34.02 107.95 82.55 79.5 44.45 24.64 16.76 4.06 12.7
3/4 19 66.68 127 92.25 99.77 50.8 31 19.81 5.59 16.76
7/8 22 79.38 139.7 107.95 107.95 57.15 35.05 23.88 5.59 19.05
1 25 124.74 155.7 114.3 125.48 63.5 39.62 26.92 6.35 22.35
1 1/8-1 1/4 28-32 181.44 177.8 130.3 149.35 73.15 45.97 33.27 6.35 28.7
1 1/4-1 3/8 32-35 370.59 230.12 165.1 172.97 88.9 55.63 36.58 9.65 28.7
1 3/8-1 1/2 35-38 532.98 228.6 158.75 181.1 88.9 65.02 39.62 12.7 28.7
1 5/8 41 771.12 285.75 203.2 206.5 101.6 69.09 43.67 12.7 35.05
1 3/4 44 805.14 309.63 228.6 215.9 114.3 72.14 46.74 12.7 33.27
1 7/8-2 48 1134 384.3 304.8 263.65 152.4 78.49 53.09 12.7 38.1
2 1/4 51 1791.72 435.1 355.6 301.75 177.8 92.2 60.45 16 41.4
2 3/8 57 2220 457.4 377.9 301.75 177.8 95.92 63.92 16 43
2 1/2 64 2850 522 399.1 316.2 187.8 102.6 66.6 16 45.5
2 3/4 70 3012 496.2 418.2 320 187.8 109.65 73.65 18.2 47.9
2 7/8 73 3600 522 442 330 196 116 76 19.88 50.83
3 76 3850 540 465 330 196 120 80 19.88 51.64
3 1/2 89 4400 660 505 380 240 139 95 21.88 54.6

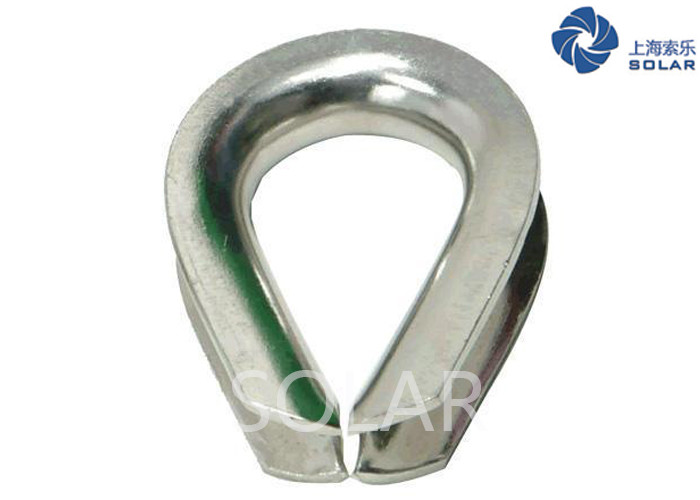

US Type Lifting And Rigging Hardware Heart Shaped Thimble G414 for Marine 1US Type Lifting And Rigging Hardware Heart Shaped Thimble G414 for Marine 2



US Type Lifting And Rigging Hardware Heart Shaped Thimble G414 for Marine 3



US Type Lifting And Rigging Hardware Heart Shaped Thimble G414 for Marine 4US Type Lifting And Rigging Hardware Heart Shaped Thimble G414 for Marine 5
