High Tenacity Round Heavy Duty Lifting Slings Eye Eye 100% Polyester Material

Product Details:
Place of Origin: Made in China
Brand Name: SOLAR
Certification: ISO
Model Number: Polyester Round Sling Eye-Eye
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Pallet or other way on customers' request
Delivery Time: 20 days
Payment Terms: L/C, D/P, T/T
Supply Ability: 100 pcs per day

Detail Information

Product Name: Polyester Round Sling Eye-Eye Size: Customized
Color: Purple/Green/Grey/Red/Brown/Blue/Orange Diameter: Customized
WLL: Up To 485Ton Material: Polyester
Lifting Eye Type: Eye And Eye Standard: ISO4878, EN1492-2, ASME B30.9, AS 4497
Packing: Pallet/Wooden Box On Your Request Stock Or Not: Small Size We Have Stock
Customized: Available Delivery: Depends On The Size Of Order
Port Of Origin: Shanghai China HS Code: 7312900000
High Light:

marine grade stainless steel wire rope

,

heavy duty lifting straps

Product Description

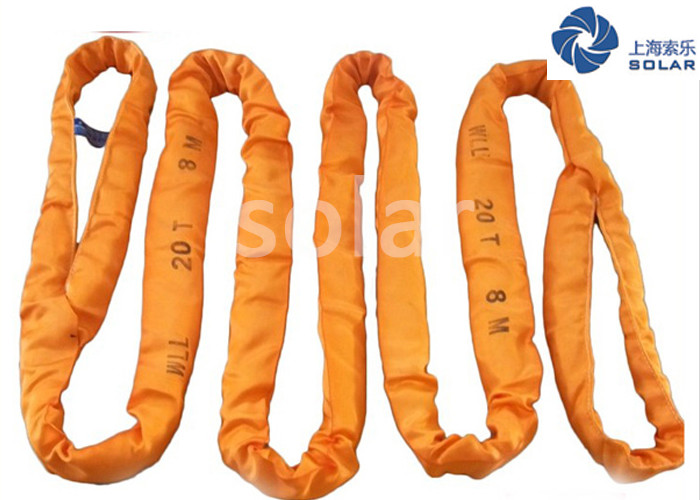

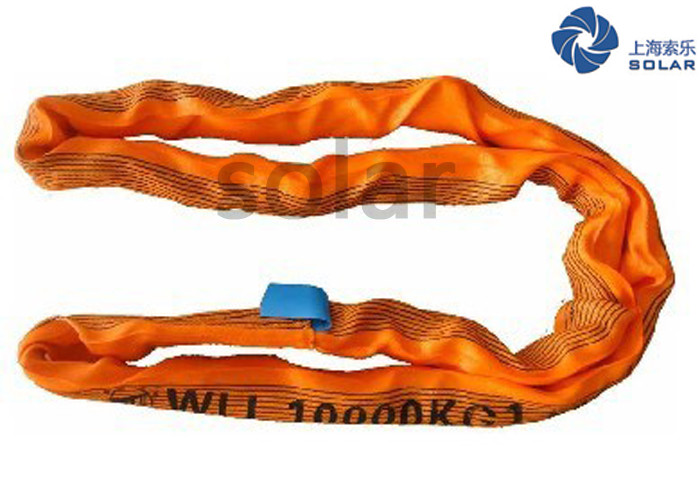

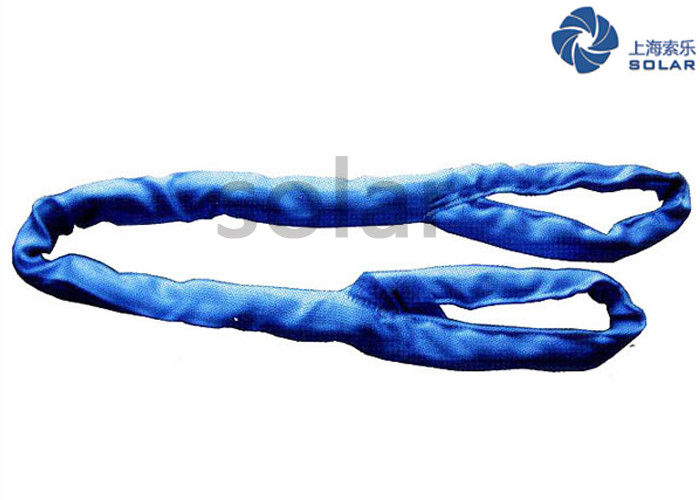

Heavy Duty Polyester Round Sling (Eye-Eye)







Applications:



Material: High tenacity 100% Polyester / Nylon
Safety Factor: 5:1, 6:1, 7:1, 8:1
Length: As required
Color: Color code
Certificate:CE/GS
Standard: ISO4878, EN1492-2, ASME B30.9, AS 4497
Characteristic: PU impregnated ,WLL & Length printed,Low elongation
Package:Single packed in shrinking foil or plastic with Certificate of Conformity.



Eye-Eye round sling is an all-purpose lifting sling, which is both high strong and non-damaging to its load. Extremely light in weight and infinitely flexible in all directions, it is easy and quick to manipulate even when awkwardly shaped or fragile loads are being lifted.



How to Order:

WLL x Length (if required non-normal Capacity, please provide the data to us).



Model Color WLL

Approx

Thickness

(mm)

Approx Width

(mm)

Length(m) Weight(kg) (6:1)
Minimum Maximum
RS10-01 Violet 1T 15 50 1.5 80 0.33
RS20-02 Green 2T 16 60 1.5 80 0.47
RS30-03 Yellow 3T 18 70 1.5 80 0.68
RS40-04 Grey 4T 20 80 1.5 80 0.85
RS50-05 Red 5T 25 90 1.5 80 1.06
RS60-06 Brown 6T 27 90 2 80 1.28
RS80-08 Blue 8T 28 100 2 80 1.59
RS100-10 Orange 10T 29 110 2 80 2.1
RS120-12 Orange 12T 30 125 2 80 2.6





When using round slings always:

• Store and handle roundslings correctly.

• Inspect roundslings and accessories before use and before placing into storage.

• Follow safe slinging practices, as given overleaf.

• Position the bight for choke lift at 120°(natural angle).

• Apply correct mode factor for the slinging arrangement.

• Use protection (to avoid cutting, friction etc) and fittings which allow the sling to form smooth radii.



When using round slings never:

• Attempt to shorten, knot or tie roundslings.

• Expose roundslings to direct heat or flames.

• Use roundslings at temperatures above 80°C or below 0°C without consulting the supplier.

• Expose roundslings to chemicals without consulting the supplier.

• Shock load roundslings.

• Use roundslings with cut or damaged outer covers.



Selecting the Correct Sling

Roundslings are available in a range of materials and sizes in endless sling form. Select the slings to be used and

plan the lift taking the following into account: Material - polyester is resistant to moderate strength acids but is

damaged by alkalis; polyamide (Nylon) is virtually immune to alkalis but is damaged by acids; polypropylene is little

affected by acids or alkalis but is damaged by some solvents, tars and paints. Capacity - the sling must be both long

enough and strong enough for the load and the slinging method. Apply the mode factor for the slinging method. For

use at temperatures exceeding 80°C or below 0°C refer to the suppliers instructions. If the slings are to be used in

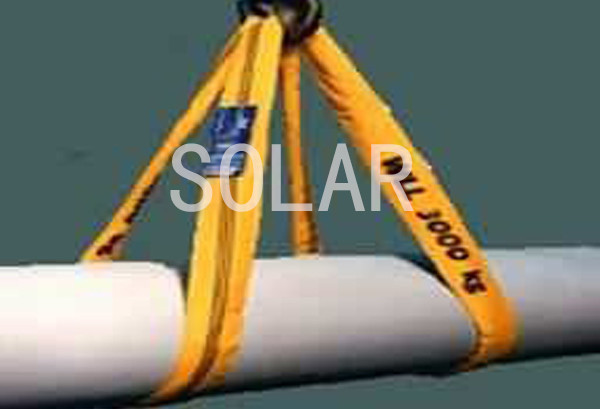

multi-leg arrangement the angle formed between the legs should not be less than 30° or greater than 90°. If

abrasion, heat generated by friction or cutting from edges or corners which may damage the sling are likely, select a

sling fitted with additional protective sleeves and/or use suitable packing. Storing and Handling Roundslings Never

return wet, damaged or contaminated slings to storage. They should be cleaned with clear water and dried naturally.

Never force dry roundslings.



Store roundslings by hanging on non-rusting pegs which allow the free circulation of air. The storage area should be

dry, clean, free of any contaminates and shaded from direct sunlight. Do not alter, modify or repair a roundsling but

refer such matters to a Competent Person. NOTE: The material from which the roundsling is manufactured may be

identified by the colour of the label or printing on the label: Polyester = Blue, Polyamide (Nylon) = Green,

Polypropylene = Brown. The outer sleeve of the sling will also be colour coded to indicate the SWL in straight pull.



Using Roundslings Safely

• Do not attempt lifting operations unless you understand the use of the equipment, the slinging procedures

and the mode factors to be applied.

• Do not use defective slings or accessories.

• Check for correct engagement with fittings and appliances, ensuring smooth radii are formed which allow the

sling to assume its naturally flattened form under load. Do not overcrowd fittings.

• Position the bight for a choke lift at the natural (120°) angle to prevent friction being generated.

• Keep labels away from hooks and fittings.

• Take the load steadily and avoid shock loads.

• Do not leave suspended loads unattended. In an emergency cordon off the area.



In-service Inspection and Maintenance

Maintenance requirements are minimal. Roundslings may be cleaned with clear water. Remember weak

chemical solutions will become increasingly stronger by evaporation Regularly inspect roundslings and, in the

event of the following defects, refer the sling to a Competent Person for thorough examination: illegible

markings; damaged or cut outer cover; damaged stitching; exposed inner core; heat damage; burns;

chemical damage
