Customized Steel Trailer Rope End With Hook/Shackle Oilless Stell Wire Rope Car Towing Pull equipment

Product Details:
Place of Origin: China
Brand Name: SOLAR
Certification: Lloyd's/CCS/ABS/BV/DNV
Model Number: Customized Steel Trailer Rope
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Pallet, Reels
Delivery Time: within 7 days
Payment Terms: L/C, T/T, D/P
Supply Ability: depends on order

Detail Information

Product Name: Customized Steel Trailer Rope Wire Rope Structure: Stainless Wire Rope/Oilless Steel Wire Rope
Surface: Galvanized/Ungalvanized/Bright Diamater: 4mm-80mm
Core Type: IWR/IWS/FC Standard: GB/DIN/BS/JIS/ASTM/RR-W-410/API/ISO
Packing: Reel/Pallet/Plastic Bags/Wooden Box SWL: 1Ton~180Ton
Port Of Origin: Shanghai China
High Light:

SUS304 lifting ropes slings

,

4mm steel rope sling

Product Description

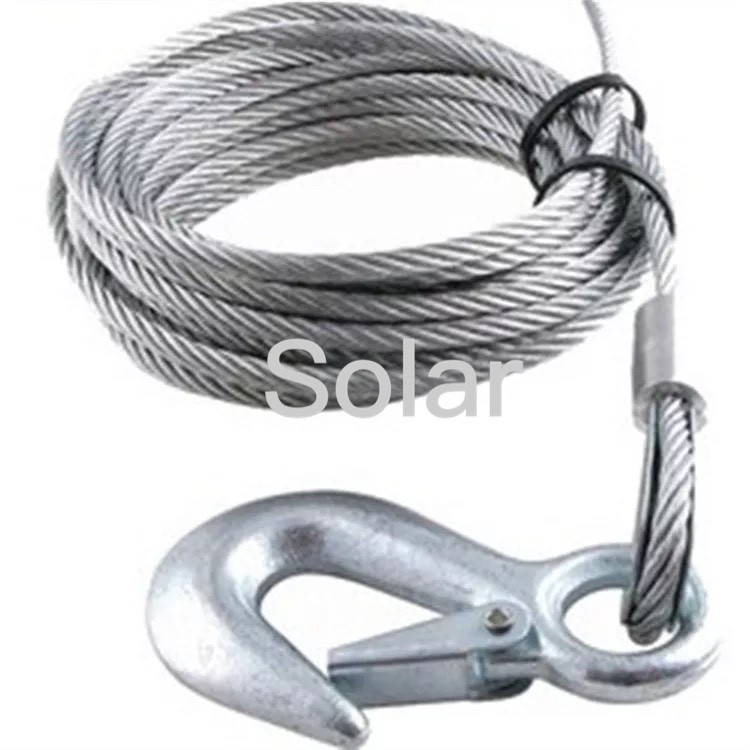

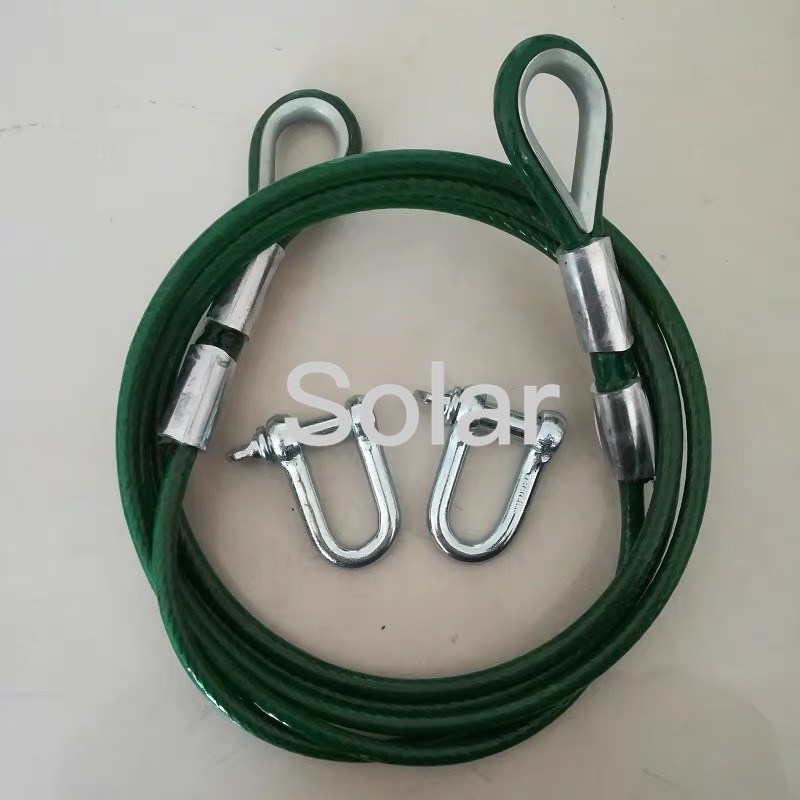

Steel Trailer Rope End With Hook/Shackle/Loop





About Steel Trailer Rope:

100% Brand New with High Quality
Fitment: Suitable for all vehicles. It is convenient, easy to carry and use. Does not take excessive amount of space in your car because of high      elasticity.
Material: Premium steel wire car tow rope, performs stronger and provides a more consistent pulling force than any other material.

The looped ends are well built and highly strengthened to take the tension at the connection points.



Features:

WEATHER RESISTANT: This rope is suitable for all the climates, and will not stretch, shrink, or mildew. However, we encourage you to take precautions and check tow rope for safety.
DURABILITY: Steel material is extremely durable and protects the strap edges from abrasion and wear off to ensure longevity.
5 TONS MAX CAPACITY: perfect for towing vehicles with the weight equal to or under 5 tons - lighter, easier, and prevents damages compared to tow chains.
Color: Customized (Stainless is Siliver, if coated PVC could be red/black/green/yellow)
Material: steel wire + iron hook/Shackle/Loop only
Diameter: regularly about 12mm, other Diameter can be customized
Length: about 5m / 16.4 ft (other length can be customized)
Rally: 7 tons (other size can be customized)



Precautions:
1. Can not be overloaded.
2. When towing, the vehicle should drive slowly.
3. Regularly check to ensure the normal use of traction belt
Package included:
1* Traction Rope
Only the above package content, other products are not included.





Customized Steel Trailer Rope End With Hook/Shackle Oilless Stell Wire Rope Car Towing Pull equipment 0



Rope Diameter Soft loop dimensions
(mm)
MBL(t) Working load limited(t)
(mm) A B n=5 n=6

5 130 65 1.25 0.25 0.2
6 150 75 1.8 0.36 0.3
7 150 75 2.46 0.5 0.4
8 200 100 3.21 0.6 0.5
9 200 100 4.07 0.8 0.7
10 200 100 5.03 1 0.8
11 230 115 6.08 1.2 1
12 230 115 7.23 1.5 1.2
13 230 115 8.49 1.7 1.4
14 250 125 9.85 2 1.6
16 300 150 12.85 2.6 2.1
18 300 150 16.32 3.3 2.7
20 350 175 20.09 4 3.4
22 350 175 24.27 4.9 4.1
24 450 225 28.96 5.8 4.8
26 450 225 33.96 6.8 5.7
28 500 250 39.36 7.9 6.6
30 500 250 45.17 9 7.5
32 550 275 51.39 10.3 8.6
34 600 300 58.12 11.6 9.7
36 600 300 65.06 13 10.8
38 600 300 72.5 14.5 12.1
40 700 350 80.35 16.1 13.4
42 800 400 88.61 17.7 14.8
44 800 400 97.28 19.5 16.2
46 900 450 106.05 21.2 17.7
48 900 450 116.25 23.3 19.4
50 1000 500 125.43 25.1 21
52 1000 500 135.62 27.1 22.7
54 1000 500 146.84 29.4 24.5
56 1000 500 157.04 31.4 26.2
58 1200 600 169.27 33.9 28.2
60 1200 600 180.49 36.1 30.1
62 1200 600 185.59 37.1 31
64 1300 650 197.82 40 33
66 1300 650 210.06 42 35
68 1400 700 223.32 44.7 37.2
70 1400 700 236.57 47.3 39.4
72 1400 700 249.93 50 41.6
74 1500 750 264.01 52.8 44
76 1500 750 278.38 55.7 46.4
78 1600 800 293.68 58.7 49
80 1600 800 307.95 61.1 51.3
82 1600 800 324.27 64.9 54
84 1700 850 339.57 67.9 56.6
86 1700 850 356.9 71.4 59.5
88 1800 900 373.22 74.6 62.2
90 1800 900 390.55 78.1 65.1
92 1800 900 407.89 81.6 68
94 1900 950 426.24 85.3 71
96 1900 950 444.6 88.9 74.1
98 2000 1000 462.95 92.6 77.2
100 2000 1000 482.33 96.5 80.4
102 2000 1000 501.1 100.4 83.6
104 2100 1050 521.07 104.2 86.9
106 2100 1050 541.47 108.3 90.3
108 2200 1100 561.86 112.4 93.6
110 2200 1100 583.28 116.7 97.2
