Detail Information
Product Name:	Welded Link Belt G80 Overhead Lifting Industrial Chain	Diameter:	Diameter Ф22x66mm Ф22x86mm
Specification:	Ф4mm-42mm	Surface Treatment:	Galvanized/Original Color/painted
Usage:	Lifting., Drag, Towing, Fishing, Shipping, Construction,	Keywords:	G80 Chain Supplier, G80 Chain Manufacturer, Lifting Chain Factory
Port Of Origin:	Shanghai China	Material:	Alloy Steel
Feature:	Welded Chain	Standard:	En818-2
Package:	Carton/Bag/Pallet	HS Code:	73269090
High Light:	Ф22x86mm crane chain sling , Ф22x66mm chain crane lift

Product Description

G80 Alloy Welded Crane Lifting Chains Diameter Ф22x66mm Ф22x86mm

Material: high quality alloy steel

surface treatment: original color, polishing, black, plastic coating, hot-dip, galvanized, ect.

Manufacture strandard: ISO, DIN, BS, JIS, ASTM

Quality Grade: G80, G100

Safety factor: min 4 times

Grade 80 Chain is manufactured from high quality, high tensile alloy steel and is hardened and tempered to produce a chain with a load bearing capacity in excess of three times that of mild steel chain. This chain complies with the mechanical properties and testing requirements of 2x the Working Load Limit. for Lifting Chains.

Application: Short links LIFTING CHAIN Grade 80, suitable for lifting & Transport lashing.

Material: alloy steel, high tensile, Heat Treated.

Safe Factor: 4:1

Large diameter grade 80 alloy chain is also available upon request. Sizes available are as below table.

Product Specifications and Selection:

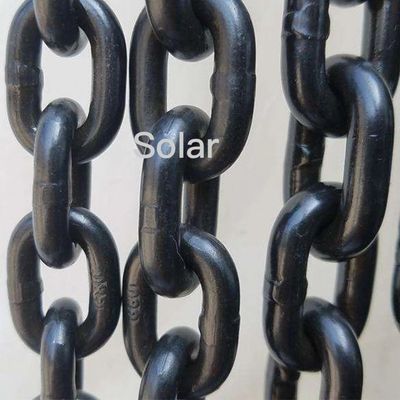

Ф22x66mm Crane Lifting Chains 0

Size dXt (mm)	Width(mm)		Unit Weight(kg/m)	Working Load Limit(kN)	Test Load(kN)	Breaking Load(kN)
Size dXt (mm)	Min.a	Max.b	Unit Weight(kg/m)	Working Load Limit(kN)	Test Load(kN)	Breaking Load(kN)

Φ4×12	5.5	14	0.4	5	12.5	20
Φ5×15	6.5	17	0.6	7.8	19.6	31.4
Φ6×18	7.5	21	0.8	11	27	45.2
Φ7×21	9	24.5	1.07	15	37	61.6
Φ8×24	10	28	1.4	20	48	80.4
Φ9×27	11	30	2	25.4	63.5	101.7
Φ10×30	12.5	35	2.2	32	76	125
Φ11×43	12.6	36.5	2.33	38	92	154
Φ12×36	15	42	3.2	46	109	181
Φ12.5×38	15.5	42.2	3.3	49	117	196
Φ13×36	16.3	44	4.1	50	128	212
Φ13×39	16.3	46	3.84	50	128	212
Φ14×42	18	49	4.2	63	150	246
Φ14×50	17	48	4	63	150	246
Φ16×48	20	56	5.71	80	192	320
Φ16×50	20	56	5.6	80	192	320
Φ16×64	20	56	5.2	80	192	320
Φ18×54	23	63	7	100	246	410
Φ18×64	21	58	6.6	100	246	410
Φ19×57	23.7	63.2	7.7	113	270	450
Φ20×60	25	70	9	125	300	500
Φ22×66	28	77	10.8	153	366	610
Φ22×86	26	74	9.5	153	366	610
Φ24×72	32	82	12.8	180	432	720
Φ24×86	28	79	11.6	180	432	720
Φ25×75	33	85	14	196	408	784
Φ25×86	30	83	13.5	196	408	784
Φ26×78	35	91	15	213	510	850
Φ26×92	30	86	13.7	213	510	850
Φ28×84	37	95	18	246	580	984
Φ30×90	38	105	19.6	283	678	1130
Φ30×108	34	98	18	283	678	1130
Φ32×96	40	106	22.6	322	772	1286
Φ34×102	46.5	121.5	25.5	363	870	1450
Φ34×126	38	109	22.7	363	870	1450
Φ35×105	45	118	30.5	384	883	1530
Φ36×108	49.5	128.5	31	407	978	1630
Φ38×114	52	132	32	453	1086	1810
Φ38×137	45	123	29	453	1086	1810
Φ42×126	55.5	144.5	38.6	554	1332	2200

Ф22x66mm Crane Lifting Chains 1

Ф22x66mm Crane Lifting Chains 6

Tag:

Product Details:
Place of Origin:	Made in China
Brand Name:	SOLAR
Certification:	ISO, CE, SGS
Model Number:	G80 lifting chain
Payment & Shipping Terms:
Minimum Order Quantity:	1 length
Price:	Negotiable
Packaging Details:	wooden box/Plastic Bags
Delivery Time:	7 days
Payment Terms:	L/C, T/T
Supply Ability:	depends on order
