50mm Lifting And Rigging Hardware
50mm Lifting And Rigging Hardware 50mm Lifting And Rigging Hardware 50mm Lifting And Rigging Hardware 50mm Lifting And Rigging Hardware

50mm Lifting And Rigging Hardware

Product Details:
Place of Origin: Made in China
Brand Name: SOLAR
Certification: JIS CE
Model Number: JIS F 3403 Rigging Screws Fastener Hardware
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Pallet, Reels
Delivery Time: within 7 days
Payment Terms: L/C, D/P, T/T
Supply Ability: Depends on Order
Contact Now

Detail Information
Product Name: JIS F 3403 Rigging Screws Fastener Hardware Marine Turnbuckles Material: Steel
Size: M24-M76 Wire Rope Diameter: 14mm-50mm
Surface: Galvanized And HDG Length: Depends On Order， 1~1000meter
Core Type: IWR/IWS/FC Condition: New
Installation: External Standard: GB/DIN/BS/JIS/ASTM/RR-W-410/API/ISO
Usage: Industrial Packing: Reel/Pallet/Plastic Bags/Wooden Box
Port Of Origin: Shanghai China HS Code: 7326909000
High Light:

50mm rope rigging hardware

,

Screw steel cable hardware

Product Description

JIS F 3403 Rigging Screws Fastener Hardware China Marine supplier




About Heavy Duty Marine Turnbuckle:



  • Marine rigging turnbuckles are like cable railing turnbuckles: integrated design, machine swaged directly onto the cable. They differ from a cable railing turnbuckle because they’re heavy duty-designed for higher strength loads.
  • They are well suited for architectural as well as marine applications.



50mm Lifting And Rigging Hardware 0

TYPE WIRE ROPE DIA(mm) SWL(t) Dimension(mm) WEIGHT(kg)
L I d H d1

14 14 2.1 488 145 24 30 M24 5.97
16 16 2.6 537 160 26 34 M27 6.58
18 18 3.3 587 172 30 37 M30 11.6
22 20/22.4 5.1 636 188 30 40 M33 14.8
24 24 5.9 688 198 32 44 M39 19.4
25 25 6.9 716 205 35 47 M42 23.9
30 28/30 9.2 768 220 41 54 M48 30.2
32 32 10.5 807 230 41 54 M48 36.2
34 34 11.5 846 240 45 58 M52 43.2
36 36 13 898 250 48 60 M56 51.1
38 38 14.5 938 258 50 67 M60 59.9
40 40 16.5 988 268 55 71 M64 70.7
42 42.5 18.5 1067 288 59 75 M68 93.5
45 45 21 1098 295 63 75 M68 105
48 47.5 23 1138 305 67 85 M76*6 117
50 50 25.5 1157 310 67 88 M76*6 124

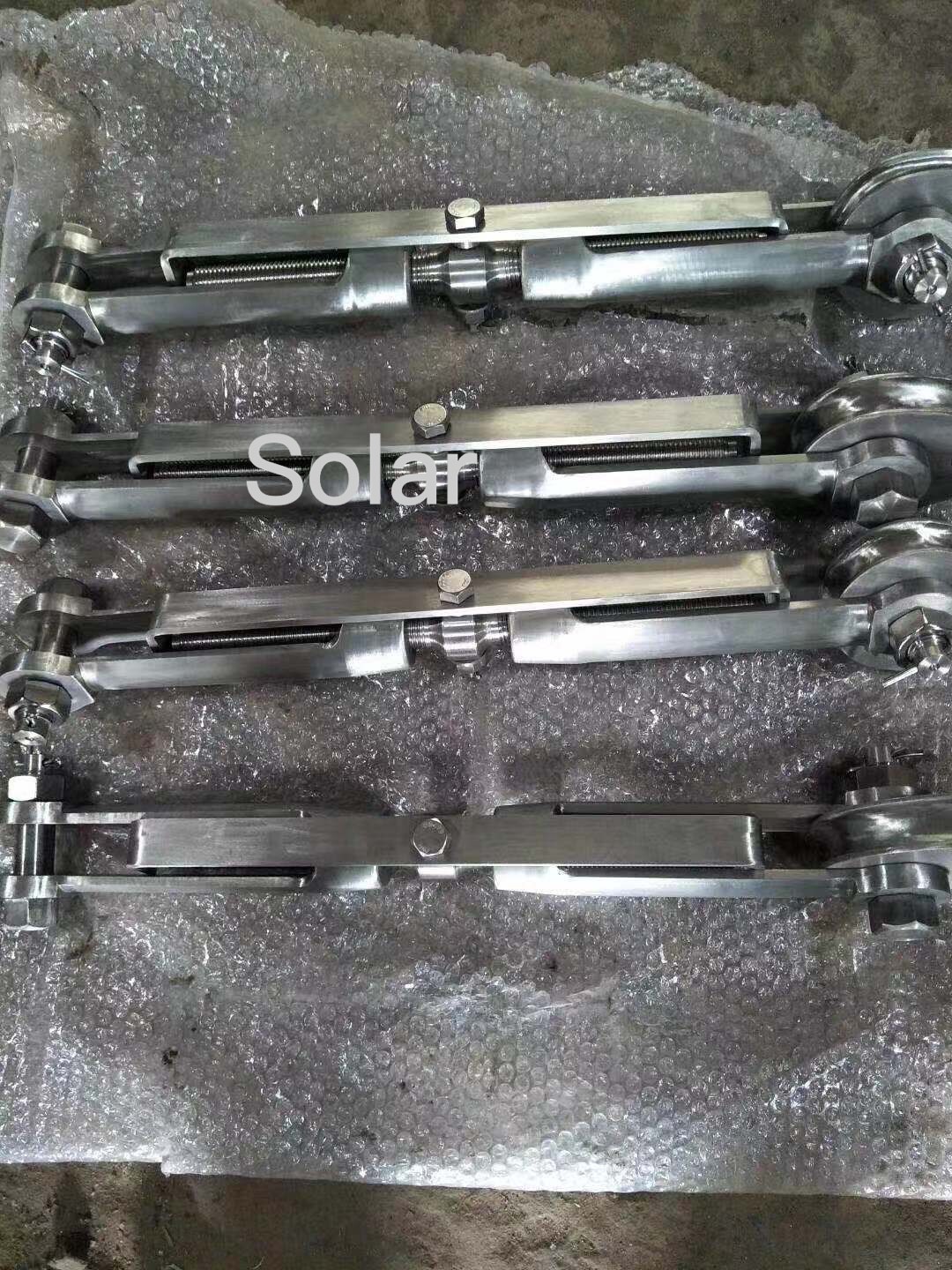

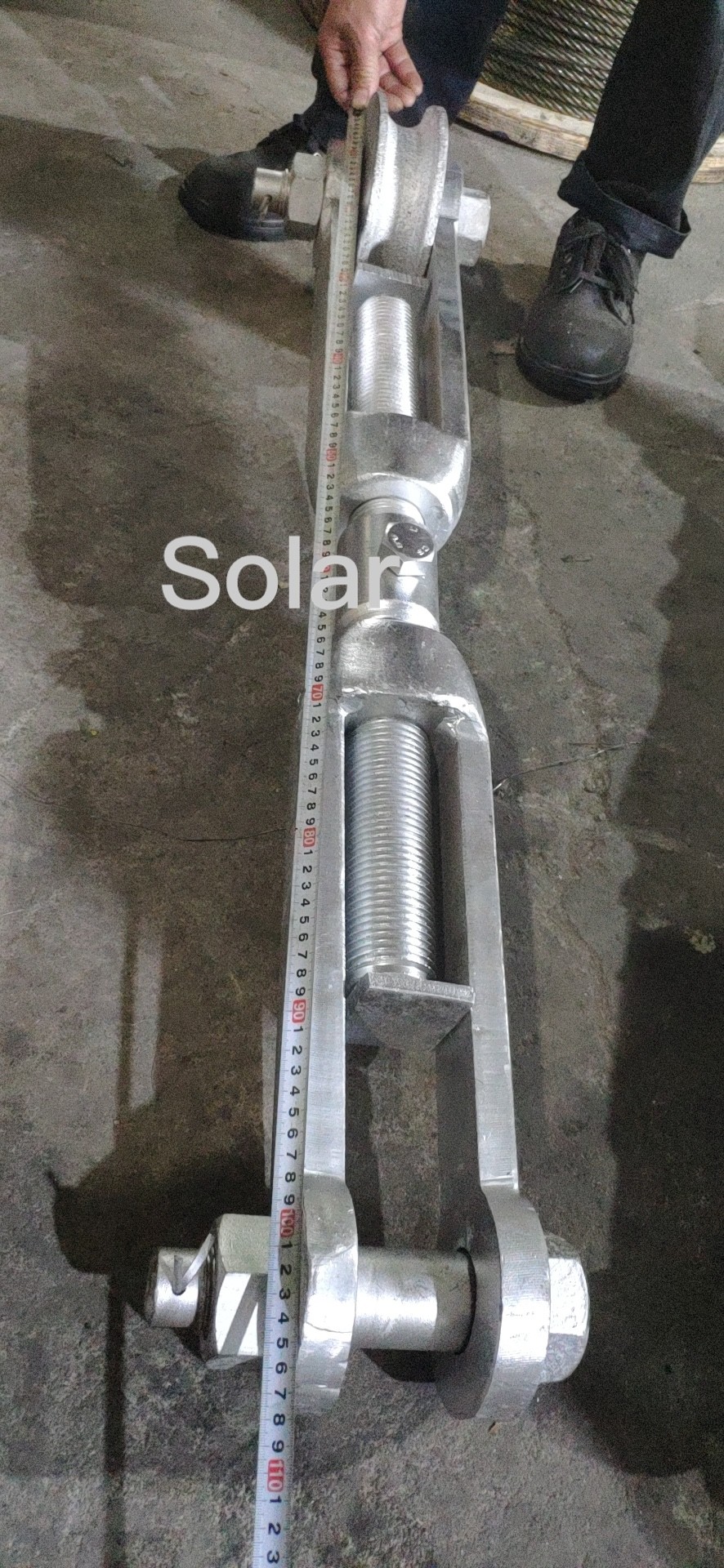

50mm Lifting And Rigging Hardware 150mm Lifting And Rigging Hardware 250mm Lifting And Rigging Hardware 3



50mm Lifting And Rigging Hardware 4



50mm Lifting And Rigging Hardware 5







Other Turnbucles:





50mm Lifting And Rigging Hardware 6



50mm Lifting And Rigging Hardware 7
