Product Details:
|
|
Place of Origin: | Made in China |
---|---|
Brand Name: | SOLAR |
Certification: | ISO |
Model Number: | 3 1/4~ 3 3/8 (in.) |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 1 pcs |
Price: | Negotiable |
Packaging Details: | Pallet or other way on customers' request |
Delivery Time: | 20 days |
Payment Terms: | L/C, D/P, T/T |
Supply Ability: | 100 pcs per day |
Detail Information |
|||
Product Name: | Galvanized US Standard Closed Spelter Sockets Casted The End Of Wire Ropes | Size: | 3 1/4~ 3 3/8 (in.) |
---|---|---|---|
Surface: | Galvanized | Diameter: | For Dia 82~120mm Wire Rope |
WLL: | 82 ~171ton | Material: | Alloy Steel |
Standard: | ISO | Stock Or Not: | Small Size We Have Stock Of Self-Color |
Delivery: | Depends On The Size Of Order | Class Certificate: | ABS/BV/DNV/LR/CCS Class Certificates |
HS Code: | 7312900000 | ||
High Light: | 6×19 flat webbing sling,Swaged endless round sling |
Product Description
Galvanized Swaged Heavy Duty Lifting Wire Rope Sling For Marine
About Wire Ropes, we also supplying:
6x36WS+IWR
6*25Fi+FC
6*29Fi+FC
6*36WS+FC
6*25Fi+IWR
6*26WS+IWR
6*29Fi+IWR
6*31WS+IWR
6*36WS+IWR
35Wx7 Non-rotating Wire Rope with Many Layers (ungalvanized & galvanized), anti-twist wire rope for crane use. Hoisting/ luffing
4V*39S+5FC
4V*48S+5FC
Classification | Wire Rope Structure | Application | |
Cross Lay Wire Rope | 6×19 | Rigging Rope | |
6×37 | |||
6×61 | |||
Paralell Lay Wire Rope | 6×7 | Haulage Rope For Coal Inclined Shaft | |
6×19S | Haulage Rope For Coal Inclined Shaft Rope For Oil Drilling |
||
6×19W | Hoist Rope For Steel Works Hoist Rope For Coal Mining Rope For Oil Drilling |
||
6×25Fi | |||
6×26WS | |||
6×31WS | |||
6×29Fi | Wintch Rope For Blast Fumace Ropes For Harbour And Ship Rope For Petroleum Rope For Heavy Crane Rope For Cableway |
||
6×36WS | |||
6×37S | |||
6×41WS | |||
6×49SWS | |||
6×55SWS | |||
8×19S | Elevator Rope | ||
8×19W | |||
8×25Fi | |||
8×26WS | Hoist Rope | ||
8×31WS | |||
8×29Fi | Rope For Heavy Crane Rope For Marine Engineering Rope For Ships |
||
8×36WS | |||
8×41WS | |||
8×49SWS | |||
8×55SWS | |||
4 Strand Wire Rope | 4V×39S | Crane Wire Rope | |
4V×48S | |||
Multi-Layer | 18×7 | Rope For Vertical Shaft Lifting Rope For Harbour And Ship |
|
18×19W | Rope For Ships | ||
18×19S | |||
18×19 | |||
35W×7 | Hoist Rope | ||
Compacted Strand Wire Rope | 6×K7 | Hoist Rope For Coal Mining | |
6×K19S | |||
6×K25Fi | |||
6×K26WS | |||
6×K31WS | Hoist Rope For Steel Works | ||
6×K36WS | Wire Rope For Heavy Crane Hoist Wire Rope For Port | ||
6×K41WS | |||
8×K19S | Wire Rope For Heavy Crane Wire Hoist Wire Rope For Port | ||
8×K26WS | |||
8×K31WS | |||
8×K36WS | Wire Rope For Marine Engineering | ||
8×K41WS | |||
18×K7 | Hoisting Wire Rope | ||
18×K19S | |||
35W×K7 | |||
Large Diameter Steel Wire Ropes | 6×36WS | Wire Rope For Ships Wire Rope For Maine Engineering Mooring Anchoring Wire Rope |
|
6×41WS | |||
6×49SWS | |||
6×55SWS | |||
6×65FNS | |||
6×80WSNS | |||
6×84WSNS | |||
6×111SWSNS | |||
6×103FSNS | |||
6×109SWSNS | |||
6×61 | |||
8×25Fi | |||
8×31WS | |||
8×36WS | |||
8×41WS | |||
8×49SWS | |||
8×55SWS | |||
8×65FNS | |||
8×80WSNS | |||
8×84WSNS | |||
8×111SWSNS | |||
8×103FSNS | |||
8×109SWSNS | |||
Steel Wire Ropes For Elevators | 6×19S | Elevators Wire Rope | |
6×19W | |||
6×25Fi | |||
8×19S | |||
8×19W | |||
8×25F | |||
9×19S | |||
9×25Fi | |||
Steel Wire Ropes For Fisheries | 6×12 | Fisheries Wire Rope | |
6×15 | |||
6×24 | |||
6×24S | |||
6×24W | |||
Steel Wire Ropes For Aviation | 1×7 | Aviation Wire Rope | |
1×19 | |||
6×7 | |||
6×19 |
About Wire Rope Slings:
Steel wire rope slings as a basic material handling tool are most frequently used in marine line. Also they offer a strong, dependable and economical option for most lifting applications. Their popularity is enhanced by the numerous sling configurations available to support a broad range of applications. These configurations include single and multi-part slings (such as round braids, flat braids, Tri-Flex and cable laid slings), grommets, single leg slings, multiple leg bridles, and a wide variety of fittings and attachments.
Relative to other types of slings, wire rope slings are average in strength/weight ratio, average in abrasion and cut resistance, poorest in elongation and flexibility, and average for high temperatures (IWRC only).
Features:

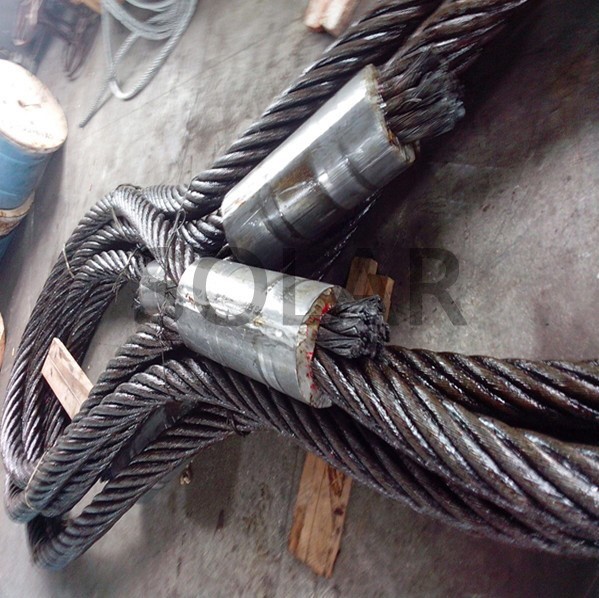

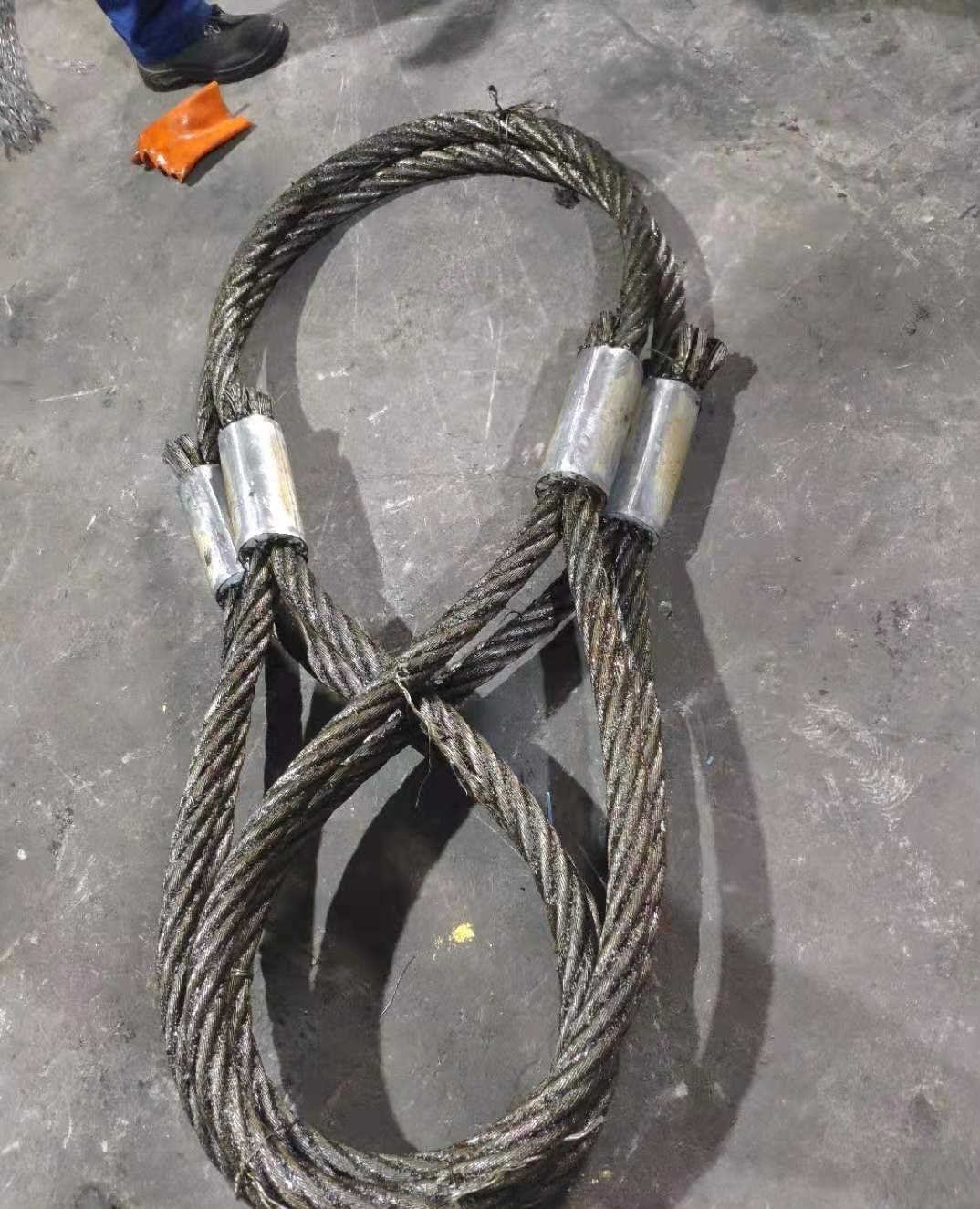

A mechanical (or flemish) splice sling is most frequently used and is fabricated by unlaying the rope body into two parts, one having three strands, the other having the remaining three strands and core. The rope is unlayed far enough back to allow the eye to be formed by looping one part in one direction and the other part in the opposite direction and laying the rope back together.
The strands are rolled back around the rope body and a metal sleeve is slipped over the ends and pressed (or swaged) to secure the ends to the sling body. A hydraulic swaging press with special dies is used to bond the sleeve in place. Extreme pressure forces the steel sleeve to flow into the voids between the wires and strands, creating an assembly that maintains most of the wire rope's nominal breaking strength.
Why SOLAR Brand?
As a professional manufacturer for wire rope slings and heavy lift assemblies, SOLAR has been the No.1 wire rope and sling supplier in SH area. Our customers are mostly Shipbuilding, Shipping, Offshore construction, and ship service providers. With swaging machine up to size 120mm and experienced splicing workers, we provide strongest and safest wire rope slings. Also our sales staffs are professional with lifting equipment, and could provide with customer correct wire rope and slings for their equipment or lifting requirements.
Applications:
1. Steel wire ropes with diameters from 4mm to 120mm, Diameter and strcuture depends on customers' requirements.
2. 4:1/5:1/6:1 safety factors
HOW TO ORDER WIRE ROPE SLINGS
Rope Diameter | Main Technical Parameters | |||||||||
A | B | C | D | F | G | H | J | K | ||
(in.) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) |
1/4 | 6 | 114.30 | 12.70 | 38.10 | 22.35 | 9.65 | 17.53 | 39.62 | 57.15 | 12.70 |
5/16-3/8 | 8-9 | 123.95 | 15.75 | 42.93 | 24.64 | 12.70 | 20.57 | 42.93 | 57.15 | 17.53 |
7/16-1/2 | 11-12 | 138.18 | 17.53 | 50.80 | 29.64 | 14.22 | 23.88 | 47.75 | 63.50 | 22.35 |
9/16-5/8 | 14-16 | 160.27 | 20.57 | 66.80 | 35.81 | 17.53 | 28.45 | 60.45 | 76.20 | 25.40 |
3/4 | 19 | 192.02 | 26.92 | 76.20 | 42.16 | 20.57 | 31.75 | 69.85 | 90.42 | 31.75 |
7/8 | 22 | 222.25 | 31.75 | 92.20 | 47.75 | 23.88 | 38.10 | 81.55 | 101.60 | 38.10 |
1 | 25 | 250.95 | 35.05 | 104.90 | 58.42 | 28.70 | 44.45 | 95.25 | 112.78 | 44.45 |
1 1/8 | 28 | 279.40 | 38.10 | 114.30 | 65.02 | 31.75 | 50.80 | 104.90 | 127.00 | 50.80 |
1 1/4-1 3/8 | 31.5-35 | 307.85 | 41.40 | 134.62 | 71.37 | 38.10 | 57.15 | 120.65 | 139.70 | 57.15 |
1 1/2 | 38 | 354.08 | 49.28 | 135.38 | 81.03 | 41.40 | 69.85 | 133.35 | 152.40 | 63.50 |
1 5/8 | 42 | 384.30 | 54.10 | 146.05 | 82.55 | 44.45 | 76.20 | 139.70 | 165.10 | 69.85 |
1 3/4-1 7/8 | 45-47.5 | 438.15 | 55.63 | 171.45 | 95.25 | 50.80 | 79.50 | 162.05 | 190.50 | 76.20 |
2-2 1/8 | 50-53 | 495.30 | 61.98 | 193.80 | 111.25 | 57.15 | 95.25 | 187.45 | 215.90 | 82.55 |
2 1/4-2 3/8 | 57-60 | 536.70 | 66.80 | 215.90 | 127.00 | 63.50 | 101.60 | 209.55 | 228.60 | 92.20 |
2 1/2-2 5/8 | 63-66 | 596.90 | 79.25 | 241.30 | 139.70 | 73.15 | 114.30 | 234.95 | 247.65 | 101.60 |
2 3/4-2 7/8 | 70-73 | 644.65 | 79.25 | 273.05 | 158.75 | 79.25 | 123.95 | 285.83 | 279.40 | 123.95 |
3-3 1/8 | 76-80 | 685.80 | 82.55 | 292.10 | 171.45 | 85.85 | 133.25 | 292.10 | 304.80 | 133.35 |
3 1/4-3 3/8 | 82-85 | 742.95 | 101.60 | 311.15 | 184.15 | 91.95 | 146.05 | 311.15 | 330.20 | 146.05 |
3 1/2-3 5/8 | 89-92 | 787.40 | 101.60 | 330.20 | 196.85 | 98.55 | 165.10 | 330.20 | 335.60 | 158.75 |
3 3/4-4 | 95-100 | 844.55 | 107.95 | 361.95 | 215.90 | 107.95 | 184.15 | 361.95 | 381.00 | 177.80 |
We have done some Big Towing Project in China State-owned Shipyard, if you are interested, please contact us to discuss the details with Products and Certificates.
ABS/BV/DNV/LR/CCS Class Certificates are available
