Electric Shares Line Contacted 8x25Fi+FC Wire Rope Steel

Product Details:
Place of Origin: Made in China
Brand Name: SOLAR
Certification: ABS(USA), BV(France), CCS(China), DNV(Norway), GL(Germany), KR(Korea), LR(U. K. ), NK(Japan), RINA(Italy), RS(Russia) & Works Certificate.
Model Number: 8x25Fi+FC
Payment & Shipping Terms:
Minimum Order Quantity: 1 meter
Price: Negotiable
Packaging Details: Pallet, Reels
Delivery Time: within 7 days
Payment Terms: L/C, D/P, T/T
Supply Ability: Depends on Order

Detail Information

Product Name: 8x25Fi+FC Glva/Bright Wire Rope Wire Rope Structure: 8x25Fi+FC
Standard: GB/DIN/BS/JIS/ASTM/AISI/API/ISO Technique: Galvanized/Ungalvanized/Bright
Diameter: 20mm~200mm, On Your Request Length: Depends On Order,1~1000 Meter
Tensile Strength: 1570Mpa 1670Mpa 1770Mpa 1870Mpa~1960Mpa PS IPS EIPS Core Type: Fiber Core/ IWRC
Packing: Reel/Pallet Application: Mine Lifting, High-furnace Hoist, Lifting, Marine,offshore,Oil Drilling, Shipping, Construction, Mining
Company Type: Manufacturer, Supplier, Expoter Port Of Origin: Shanghai China
HS Code: 73121000
High Light:

8x25Fi+FC

,

Contacted stainless wire rope

Product Description

8x25Fi+FC High Strength Line Contacted Steel Wire Rope For Electric Shares

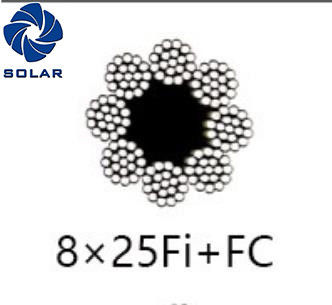

Rope Type: 8x25Fi

Rope Construction: 8x25Fi+FC

Application:

1. It is used in heavy rigging,heavy-duty hoisting machinery ,salvage,etc.

2. Steel wire ropes with diameters from 20mm to 200mm

3. 4:1/5:1/6:1 safety factors





EIPS = 1960Mpa (Extra Improved Plow Steel)

EEIPS= 2160Mpa

IPS=1870Mpa

PS=1770Mpa



FC = Fiber Core

IWRC = Independent Wire Rope Core



Electric Shares Line Contacted 8x25Fi+FC Wire Rope Steel 0



Environmental Considerations

IWRC must not be used at temperatures above 400°F.

FC must not be used at temperatures above 180°F.

Fiber core ropes should not be subjected to degreasing solvents







Electric Shares Line Contacted 8x25Fi+FC Wire Rope Steel 1





Nominal Diameter Approx.Weight Nominal Tensile Strength of Rope (MPa)
1570 1670 1770 1870 1960
Minimun Breaking Load of Rope
D FC IWR/IWS FC IWR/IWS FC IWR/IWS FC IWR/IWS FC IWR/IWS FC IWR/IWS
mm kg/100m (KN)

20 142 166 158 187 168 198 178 210 188 222 197 233
22 172 201 191 226 203 240 215 254 227 269 238 282
24 205 239 227 269 241 286 256 303 270 320 283 335
26 241 281 266 315 283 335 300 355 317 375 333 394
28 279 325 309 366 329 389 348 412 368 435 386 456
30 320 374 355 420 377 446 400 473 422 500 443 524
32 365 425 404 477 429 508 455 538 481 569 504 596
34 412 480 456 539 485 573 514 608 543 642 569 673
36 461 538 511 604 543 643 576 681 608 720 638 754
38 514 599 569 673 605 716 642 759 678 802 710 841
40 570 664 631 746 671 794 711 841 751 889 787 931
42 628 732 695 823 739 875 784 927 828 980 868 1030
44 689 803 763 903 812 960 860 1020 909 1080 952 1130
46 753 878 834 987 887 1050 940 1110 993 1180 1040 1230
48 820 956 908 1070 966 1140 1020 1210 1080 1280 1130 1340
50 890 1040 985 1170 1050 1240 1110 1310 1170 1390 1230 1460
52 963 1120 1070 1260 1130 1340 1200 1420 1270 1500 1330 1570
54 1040 1210 1150 1360 1220 1450 1300 1530 1370 1620 1430 1700
56 1120 1300 1240 1460 1310 1560 1390 1650 1470 1740 1540 1830
58 1200 1400 1330 1570 1410 1670 1490 1770 1580 1870 1650 1960
60 1280 1490 1420 1680 1510 1790 1600 1890 1690 2000 1770 2100
62 1370 1600 1510 1790 1610 1910 1710 2020 1800 2130 1890 2240
64 1460 1700 1610 1910 1720 2030 1820 2150 1920 2270 2020 2380
66 1550 1810 1720 2030 1830 2160 1940 2290 2040 2420 2140 2540
68 1650 1920 1820 2160 1940 2290 2050 2430 2170 2570 2270 2690
70 1740 2030 1930 2280 2050 2430 2180 2580 2300 2720 2410 2850
72 1850 2150 2040 2420 2170 2570 2300 2730 2430 2880 2550 3020
74 1950 2270 2160 2550 2300 2720 2430 2880 2570 3040 2690 3190
76 2060 2400 2280 2690 2420 2860 2570 3040 2710 3210 2840 3360
78 2170 2520 2400 2840 2550 3020 2700 3200 2860 3380 2990 3540
80 2280 2660 2520 2980 2680 3170 2840 3360 3000 3550 3150 3730
82 2390 2790 2650 3140 2820 3340 2990 3530 3160 3730 3310 3910
84 2510 2930 2780 3290 2960 3500 3130 3710 3310 3920 3470 4110
86 2630 3070 2910 3450 3100 3670 3290 3890 3470 4110 3640 4310
88 2760 3210 3050 3610 3250 3840 3440 4070 3630 4300 3810 4510
90 2880 3360 3190 3780 3400 4020 3600 4260 3800 4500 3980 4720
92 3010 3510 3340 3950 3550 4200 3760 4450 3970 4700 4160 4930
94 3150 3670 3480 4120 3700 4380 3930 4640 4150 4910 4350 5140
96 3280 3820 3630 4300 3860 4570 4090 4840 4330 5120 4530 5360
98 3420 3990 3780 4480 4030 4760 4270 5050 4510 5330 4720 5590
100 3560 4150 3940 4660 4190 4960 4440 5260 4690 5550 4920 5820
106 4000 4660 4430 5240 4710 5570 4990 5910 5270 6240 5530 6540
110 4310 5020 4770 5640 5070 6000 5380 6360 5680 6720 5950 7040
116 4790 5580 5300 6270 5640 6670 5980 7070 6320 7470 6620 7830
120 5130 5980 5670 6710 6040 7140 6400 7570 6760 8000 7080 8380
126 5650 6590 6260 7400 6650 7870 7050 8350 7450 8820 7810 9240
130 6020 7010 6660 7880 7080 8380 7510 8880 7930 9390 8310 9840
136 6580 7680 7290 8620 7750 9170 8220 9720 8680 10200 9100 10700
140 6980 8130 7720 9140 8220 9720 8710 10300 9200 10900 9640 11400
146 7590 8850 8400 9940 8940 10500 9470 11200 10000 11800 10500 12400
150 8010 9340 8870 10500 9430 11100 10000 11800 10500 12500 11000 13100
156 8660 10100 9590 11300 10200 12000 10800 12800 11400 13500 11900 14100
160 9110 10600 10100 11900 10700 12700 11300 13400 12000 14200 12600 14900
166 9810 11400 10800 12800 11500 13600 12200 14500 12900 15300 13500 16000
170 10200 12000 11400 13400 12100 14300 12800 15200 13500 16000 14200 16800
176 11000 12800 12200 14400 13000 15300 13700 16300 14500 17200 15200 18000
180 11500 13400 12700 15100 13600 16000 14400 17000 15200 18000 15900 18800
186 12300 14300 13600 16100 14500 17100 15300 18200 16200 19200 17000 20100
190 12800 15000 14200 16800 15100 17900 16000 19000 16900 20000 17700 21000
196 13600 15900 15100 17900 16100 19000 17000 20200 18000 21300 18900 22300
200 14200 16600 15700 18600 16700 19800 17700 21000 18700 22200 19600 23300



Electric Shares Line Contacted 8x25Fi+FC Wire Rope Steel 2Electric Shares Line Contacted 8x25Fi+FC Wire Rope Steel 3











Electric Shares Line Contacted 8x25Fi+FC Wire Rope Steel 4



Electric Shares Line Contacted 8x25Fi+FC Wire Rope Steel 5










We can also provide Steel Wire Rope Slings

HOW TO ORDER WIRE ROPE SLINGS

  • Define rope diameter. 1-1/4" or 24mm in example
  • Rope Structure. 6X37 IWRC EIPS construction for example.
  • laid RHLL(Z) or LHLL(S) for cable laid rope.
  • Sling Length (length could be 0.5~1000meter, feet and meter both OK)
  • Terminations, end with soft eye or Hard eye (Thimble Eye)

Electric Shares Line Contacted 8x25Fi+FC Wire Rope Steel 6



Electric Shares Line Contacted 8x25Fi+FC Wire Rope Steel 7



Electric Shares Line Contacted 8x25Fi+FC Wire Rope Steel 8



Electric Shares Line Contacted 8x25Fi+FC Wire Rope Steel 9









Electric Shares Line Contacted 8x25Fi+FC Wire Rope Steel 10
