Galvanized steel messenger cable 10 mm /14mm/16mm/22mm/34mm steel towing wire rope

Product Details:
Place of Origin: Made in China
Brand Name: SOLAR
Certification: ISO
Model Number: Wire Rope Open Spelter Socket
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Pallet or other way on customers' request
Delivery Time: 20 days
Payment Terms: L/C, D/P, T/T
Supply Ability: 100 pcs per day

Detail Information

Product Name: Galvanized US Standard Open Spelter Sockets Casted The End Of Wire Ropes Size: 3 1/2 ~ 3 5/8 (in.)
Surface: Galvanized Diameter: For Dia 82~100mm Wire Rope
WLL: 82 ~171ton Material: Alloy Steel
Standard: ISO Packing: Pallet/Wooden Box On Your Request
Stock Or Not: Small Size We Have Stock Of Self-Color Delivery: Depends On The Size Of Order
Port Of Origin: Shanghai China

Product Description

Galvanized steel messenger cable 10 mm /14mm/16mm/22mm/34mm steel towing wire rope





About Wire Ropes, we also supplying:



6*37+FC (ungalvanized & galvanized)

6*37+IWS

6*37+IWR



6x36WS+IWR

6*25Fi+FC

6*29Fi+FC

6*36WS+FC



6*25Fi+IWR

6*26WS+IWR

6*29Fi+IWR

6*31WS+IWR

6*36WS+IWR



35Wx7 Non-rotating Wire Rope with Many Layers (ungalvanized & galvanized), anti-twist wire rope for crane use. Hoisting/ luffing

4V*39S+5FC

4V*48S+5FC



Classification Wire Rope Structure Application
Cross Lay Wire Rope 6×19 Rigging Rope
6×37
6×61
Paralell Lay Wire Rope 6×7 Haulage Rope For Coal Inclined Shaft
6×19S Haulage Rope For Coal Inclined Shaft
Rope For Oil Drilling
6×19W Hoist Rope For Steel Works
Hoist Rope For Coal Mining
Rope For Oil Drilling
6×25Fi
6×26WS
6×31WS
6×29Fi Wintch Rope For Blast Fumace
Ropes For Harbour And Ship
Rope For Petroleum
Rope For Heavy Crane
Rope For Cableway
6×36WS
6×37S
6×41WS
6×49SWS
6×55SWS
8×19S Elevator Rope
8×19W
8×25Fi
8×26WS Hoist Rope
8×31WS
8×29Fi Rope For Heavy Crane
Rope For Marine Engineering
Rope For Ships
8×36WS
8×41WS
8×49SWS
8×55SWS
4 Strand Wire Rope 4V×39S Crane Wire Rope
4V×48S
Multi-Layer 18×7 Rope For Vertical Shaft Lifting
Rope For Harbour And Ship
18×19W Rope For Ships
18×19S
18×19
35W×7 Hoist Rope
Compacted Strand Wire Rope 6×K7 Hoist Rope For Coal Mining
6×K19S
6×K25Fi
6×K26WS
6×K31WS Hoist Rope For Steel Works
6×K36WS Wire Rope For Heavy Crane Hoist Wire Rope For Port
6×K41WS
8×K19S Wire Rope For Heavy Crane Wire Hoist Wire Rope For Port
8×K26WS
8×K31WS
8×K36WS Wire Rope For Marine Engineering
8×K41WS
18×K7 Hoisting Wire Rope
18×K19S
35W×K7
Large Diameter Steel Wire Ropes 6×36WS Wire Rope For Ships Wire Rope For Maine Engineering
Mooring Anchoring Wire Rope
6×41WS
6×49SWS
6×55SWS
6×65FNS
6×80WSNS
6×84WSNS
6×111SWSNS
6×103FSNS
6×109SWSNS
6×61
8×25Fi
8×31WS
8×36WS
8×41WS
8×49SWS
8×55SWS
8×65FNS
8×80WSNS
8×84WSNS
8×111SWSNS
8×103FSNS
8×109SWSNS
Steel Wire Ropes For Elevators 6×19S Elevators Wire Rope
6×19W
6×25Fi
8×19S
8×19W
8×25F
9×19S
9×25Fi
Steel Wire Ropes For Fisheries 6×12 Fisheries Wire Rope
6×15
6×24
6×24S
6×24W
Steel Wire Ropes For Aviation 1×7 Aviation Wire Rope
1×19
6×7
6×19



About Wire Rope Slings:

Steel wire rope slings as a basic material handling tool are most frequently used in marine line. Also they offer a strong, dependable and economical option for most lifting applications. Their popularity is enhanced by the numerous sling configurations available to support a broad range of applications. These configurations include single and multi-part slings (such as round braids, flat braids, Tri-Flex and cable laid slings), grommets, single leg slings, multiple leg bridles, and a wide variety of fittings and attachments.

Relative to other types of slings, wire rope slings are average in strength/weight ratio, average in abrasion and cut resistance, poorest in elongation and flexibility, and average for high temperatures (IWRC only).



Features:

A mechanical (or flemish) splice sling is most frequently used and is fabricated by unlaying the rope body into two parts, one having three strands, the other having the remaining three strands and core. The rope is unlayed far enough back to allow the eye to be formed by looping one part in one direction and the other part in the opposite direction and laying the rope back together.
The strands are rolled back around the rope body and a metal sleeve is slipped over the ends and pressed (or swaged) to secure the ends to the sling body. A hydraulic swaging press with special dies is used to bond the sleeve in place. Extreme pressure forces the steel sleeve to flow into the voids between the wires and strands, creating an assembly that maintains most of the wire rope's nominal breaking strength.



Why SOLAR Brand?

As a professional manufacturer for wire rope slings and heavy lift assemblies, SOLAR has been the No.1 wire rope and sling supplier in SH area. Our customers are mostly Shipbuilding, Shipping, Offshore construction, and ship service providers. With swaging machine up to size 120mm and experienced splicing workers, we provide strongest and safest wire rope slings. Also our sales staffs are professional with lifting equipment, and could provide with customer correct wire rope and slings for their equipment or lifting requirements.





Applications:

1. Steel wire ropes with diameters from 4mm to 120mm, Diameter and strcuture depends on customers' requirements.

2. 4:1/5:1/6:1 safety factors



HOW TO ORDER WIRE ROPE SLINGS

  • Define rope diameter. 1-1/4" or 24mm in example
  • Rope Structure. 6X37 IWRC EIPS construction for example.
  • laid RHLL(Z) or LHLL(S) for cable laid rope.
  • Sling Length (feet or Meter)
  • Terminations, end with soft eye or Hard eye (Thimble Eye)

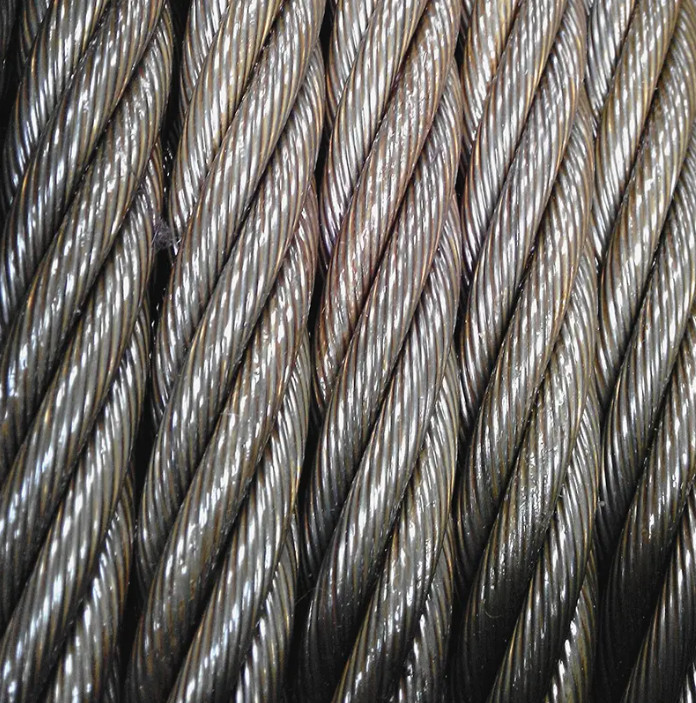

Galvanized steel messenger cable 10 mm /14mm/16mm/22mm/34mm steel towing wire rope 0





Galvanized steel messenger cable 10 mm /14mm/16mm/22mm/34mm steel towing wire rope 1



Galvanized steel messenger cable 10 mm /14mm/16mm/22mm/34mm steel towing wire rope 2

Rope Diameter 适用钢丝绳直径 Main technical parameters 主要技术参数
A C D F G H J L M N
(in.) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm)

1/4 6 115.82 23.11 17.53 9.65 11.53 39.62 57.15 39.62 33.27 9.14
5/16-3/8 8-9 122.94 20.57 20.57 12.70 20.57 42.93 57.15 44.45 38.10 11.18
7/16-1/2 11-12 141.22 25.40 25.40 14.22 23.88 47.75 62.50 60.80 47.75 12.70
9/16-5/8 14-16 171.45 31.75 30.23 17.53 28.70 57.15 76.20 63.60 57.15 14.22
3/4 19 201.68 38.10 35.05 20.57 31.75 66.53 88.90 76.20 66.55 15.75
7/8 22 234.95 44.45 41.40 23.88 38.10 82.55 101.60 88.80 79.50 23.32
1 25 268.22 50.80 50.80 28.70 44.45 95.25 114.30 101.60 95.25 22.35
1 1/8 28 299.97 57.15 57.15 31.75 50.80 104.65 127.00 117.35 104.65 25.40
1 1/4-1 3/8 31.5-35 335.03 63.50 63.50 38.10 57.15 120.65 139.70 127.00 120.60 28.70
1 1/2 38 384.05 76.02 69.85 41.4 69.85 133.35 152.40 152.40 136.65 30.23
1 5/8 42 412.75 76.20 76.20 44.45 76.20 139.70 165.10 165.10 146.05 33.27
1 3/4-1 7/8 45-47.5 463.55 88.90 88.90 50.80 79.50 162.05 190.50 177.80 165.10 39.62
2-2 1/8 50-53 546.10 101.60 95.25 57.17 95.25 187.45 215.90 228.60 177.80 45.97
2 1/4-2 3/8 57-60 596.90 114.30 107.95 63.50 101.60 209.55 228.60 254.00 196.85 54.10
2 1/2-2 5/8 63-66 647.70 127.00 120.65 73.15 114.30 234.95 247.65 273.05 215.90 60.45
2 3/4-2 7/8 70-73 692.15 133.35 127.00 97.25 123.95 266.70 279.40 279.40 228.60 73.15
3-3 1/8 76-80 736.60 146.05 133.35 85.85 133.25 282.45 304.80 285.75 241.30 76.20
3 1/4-3 3/8 82-85 784.35 158.75 139.70 91.95 146.05 301.75 330.40 298.45 254.00 79.25
3 1/2-3 5/8 89-92 844.55 171.45 152.40 95.55 165.10 314.45 355.60 317.50 273.05 82.55
3 3/4-4 95-100 920.75 190.50 177.80 107.95 184.15 345.95 381.00 342.90 317.50 88.90





Galvanized steel messenger cable 10 mm /14mm/16mm/22mm/34mm steel towing wire rope 3Galvanized steel messenger cable 10 mm /14mm/16mm/22mm/34mm steel towing wire rope 4Galvanized steel messenger cable 10 mm /14mm/16mm/22mm/34mm steel towing wire rope 5Galvanized steel messenger cable 10 mm /14mm/16mm/22mm/34mm steel towing wire rope 6





Galvanized steel messenger cable 10 mm /14mm/16mm/22mm/34mm steel towing wire rope 7



Galvanized steel messenger cable 10 mm /14mm/16mm/22mm/34mm steel towing wire rope 8
