100% Polyester Lifting Slings , Ratchet Tie Down Straps With Double J Hooks

Product Details:
Place of Origin: Made in China
Brand Name: SOLAR
Certification: ISO
Model Number: Ratchet Tie Down Straps With Double J Hooks
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: Pallet or other way on customers' request
Delivery Time: 3 days
Payment Terms: L/C, D/P, T/T
Supply Ability: depends on Order

Detail Information

Product Name: Ratchet Tie Down Straps With Double J Hooks Material: Polyester
Capacity: 5Ton Color: Orange/Blue/Yellow/Red/Green
Width: Customized Length: Customized In Any Length
Delivery Time: 3 Days Safety Factor: Normally 1:3
Temperature Range: -40℃~100℃ Condition: New
Usage: Lashing Marking: WLL, Length
Standard: EN12195 Stock Or Not: Yes
Packing: Pallet/Plastic Bag Carton, On Your Request HS Code: 56090000
Port Of Origin: Shanghai China
High Light:

dyneema sling for anchor

,

ratchet tie down straps

Product Description

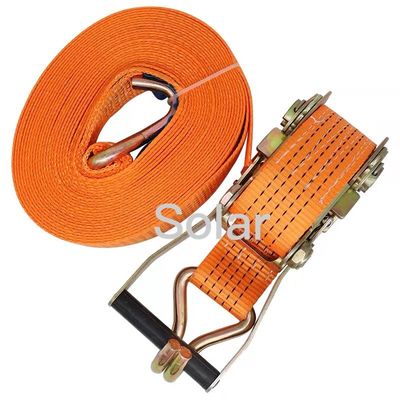

Ratchet Tie Down Straps With Double J Hooks ​





Applications:



Strap Material: High tenacity 100% Polyester
Safety Factor: 2:1 or 3:1
Length/Color: As required
Certificate:CE/GS
Standard: EN 12195-2, WSTDA, AS/NZS 4380.2001
End fittings: Double J hook,Claw hook,S hook,Flat hook,Swivel hook,
Characteristic: PU impregnated ,Low elongation,Durable ratchet & hooks,etc
Package:Single packed in shrinking foil or plastic with Certificate of Conformity



Ratchet straps are used to secure loads while transporting, shifting or storage on flatbed trucks, in vans, lorries,moving trucks, and many other types of trucks and trailers etc.Ratchet straps offer one handed tensioning and an easy release buckle for effortless tightening. The ratchet buckle provides the tension force and its locking mechanism ensures that the tension is retained till it is unlocked. This ensures complete locking of strap in position and easy to handle.They are more secure, reliable and lighter when compared to traditionally used items like chains, wires ,etc.OEM service is available.





Ratchet Straps
Width 25MM 38MM
(Regular)
38MM
(Thickening)
50MM (Regular) 50MM
(Thickening)
75MM
(Thickening)
100MM
(Thickening)
Pull Strength 0.8T 2T 3T 4T 5T 8T 10T
Length 1-15M (can be customized)












集装箱防风带ratchet tie down

Model Width(mm) LC(kg) MBS(kg) Webbing B/S(kg) Length
RTD100-500 100 5000 10000 12500 Any
RTD75-350 75 5000 10000 12500 Any



集装箱防风带ratchet tie down



Model Width(mm) LC(kg) MBS(kg) Webbing B/S(kg) Length
RTD50-250 50 2500 5000 6250 Any
RTD50-250-1 50 2500 5000 7500 Any



集装箱防风带ratchet tie down

Model Width(mm) LC(kg) MBS(kg) Webbing B/S(kg) Length
RTD50-200 50 2000 4000 5000 Any
RTD50-200-1 50 2000 4000 6000 Any



集装箱防风带ratchet tie down

Model Width(mm) LC(kg) MBS(kg) Webbing B/S(kg) Length
RTD50-150 50 1500 3000 3750 Any





集装箱防风带ratchet tie down

Model Width(mm) LC(kg) MBS(kg) Webbing B/S(kg) Length
RTD35-150 35 1500 3000 3750 Any







集装箱防风带ratchet tie down

Model Width(mm) LC(kg) MBS(kg) Webbing B/S(kg) Length
RTD35-100 35 1000 2000 2500 Any
RTD35-100-1 35 1000 2000 3000 Any







集装箱防风带ratchet tie down

Model Width(mm) LC(kg) MBS(kg) Webbing B/S(kg) Length
RTD25-050 25 500 1000 1250 Any
RTD25-050-1 25 500 1000 1500 Any
Model Width(mm) LC(kg) MBS(kg) Webbing B/S(kg) Length
RTD25-040 25 400 800 1000 Any
RTD25-040-1 25 400 800 1200 Any



集装箱防风带ratchet tie down



Warning:
1. Ratchet straps should not be used as a load lifting gear.

2. Ratchet straps must not beoverload.

3. Avoid twisted positioning of the Ratchet straps.

4. Do not tie knots in the webbing.



Ratchet straps (also called lashing straps, webbing with linking device or tie downs) are fasteners used to hold down cargo or equipment during transport. Ratchet straps are essentially webbing that is outfitted with tie down hardware. This hardware allows the tie down strap to attach to the area surrounding the cargo or equipment, loop over the cargo or equipment, and/or attach to the cargo or equipment. It usually also includes a method of tensioning the strap, such as a ratchet.



Common types: Two common types of Ratchet straps are loop straps and two-piece straps.


Loop straps, like their name implies, are a single piece of webbing that is looped around the item to be protected and the two endpoints are brought together at the tie down fastener for fastening and providing tension.



Two-piece Ratchet straps are a single assembly that is constructed out of two separate pieces of webbing each with their own hardware that are fastened at one end to the area surrounding the equipment to be protected and connect to each other, typically at the fastener. Webbing with linking device is a product used for fastening of goods with truck, trailer, pallets, boxes, containers etc. This is also known as Ratchet lashing, Cargo lashing, Ratchet tie down, Tie down straps, lashing with webbing etc
