35WxK7 Special Wire Rope Rotating Resistance ASTM Standard Steel Material

Product Description

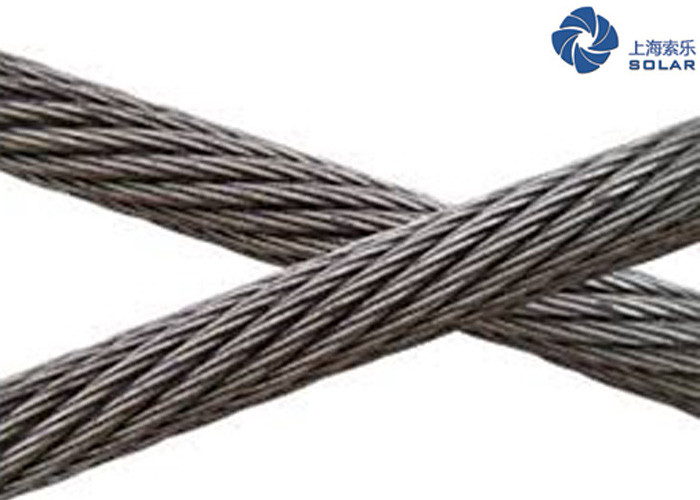

35(W)x7 Class EIPS Rotating Resistance Steel Wire Rope 6mm- 60mm

Applications:

1. Steel wire ropes with diameters from 6mm to 60mm, Diameter and strcuture depends on customers' requirements.

2. 4:1/5:1/6:1 safety factors

3. Strength class 1770 Mpa 1960Mpa or 2160 MPa. The ropes may run with or without rotating clamping.

EIPS = 1960Mpa (Extra Improved Plow Steel)

EEIPS= 2160Mpa

IPS=1870Mpa

PS=1770Mpa

FC = Fiber Core

IWRC = Independent Wire Rope Core

IWSC = Independent wire strand core

Environmental Considerations

IWRC must not be used at temperatures above 400°F.

FC must not be used at temperatures above 180°F.

Fiber core ropes should not be subjected to degreasing solvents

We can also provide Steel Wire Rope Slings

​HOW TO ORDER WIRE ROPE SLINGS

• Define rope diameter. 1-1/4" or 24mm in example
• Rope Structure. 6X37 IWRC EIPS construction for example.
• laid RHLL(Z) or LHLL(S) for cable laid rope.
• Sling Length (length could be 0.5~1000meter, feet and meter both OK)
• Terminations, end with soft eye or Hard eye (Thimble Eye)
