China Wire Rope Sling manufacturer

High Stength Lifting 6Vx19+IWR 6Vx19+FC Special Wire Rope

Product Details:
Place of Origin: Made in China
Brand Name: SOLAR
Certification: ABS(USA), BV(France), CCS(China), DNV(Norway), GL(Germany), KR(Korea), LR(U. K. ), NK(Japan), RINA(Italy), RS(Russia) & Works Certificate.
Model Number: Glva/Bright Wire Rope
Payment & Shipping Terms:
Minimum Order Quantity: 1 meter
Price: Negotiable
Packaging Details: Pallet, Reels
Delivery Time: within 7 days
Payment Terms: L/C, D/P, T/T
Supply Ability: Depends on Order

Detail Information

Product Name: 6Vx19+IWR 6Vx19+FC Glva/Bright Wire Rope Wire Rope Structure: 6Vx19+IWR 6Vx19+FC
Standard: GB/DIN/BS/JIS/ASTM/AISI/API/ISO Technique: Galvanized/Ungalvanized/Bright
Diameter: 20mm~200mm, On Your Request Length: Depends On Order, 1~1000 Meter
Tensile Strength: 1570Mpa 1670Mpa 1770Mpa 1870Mpa~1960Mpa PS IPS EIPS Core Type: Fiber Core/IWRC
Packing: Reel/Pallet Application: Mine Lifting, High-furnace Hoist, Lifting, Marine,offshore,Oil Drilling, Shipping, Construction, Mining
Company Type: Manufacturer, Supplier, Expoter Port Of Origin: Shanghai China
HS Code: 73121000
High Light:

6Vx19+IWR

,

6Vx19+FC

Product Description

6Vx19+IWR 6Vx19+FC High Stength Lifting Carbon Steel Wire Rope

High Stength Lifting 6Vx19+IWR 6Vx19+FC Special Wire Rope



Rope Type: 6Vx19

Rope Construction: 6Vx19+IWR 6Vx19+FC

Application:

1. It is used in heavy rigging,heavy-duty hoisting machinery,salvage,etc.

2. Steel wire ropes with diameters from 20mm to 200mm

3. 4:1/5:1/6:1 safety factors





EIPS = 1960Mpa (Extra Improved Plow Steel)

EEIPS= 2160Mpa

IPS=1870Mpa

PS=1770Mpa





FC = Fiber Core

IWRC = Independent Wire Rope Core







Environmental Considerations

IWRC must not be used at temperatures above 400°F.

FC must not be used at temperatures above 180°F.

Fiber core ropes should not be subjected to degreasing solvents

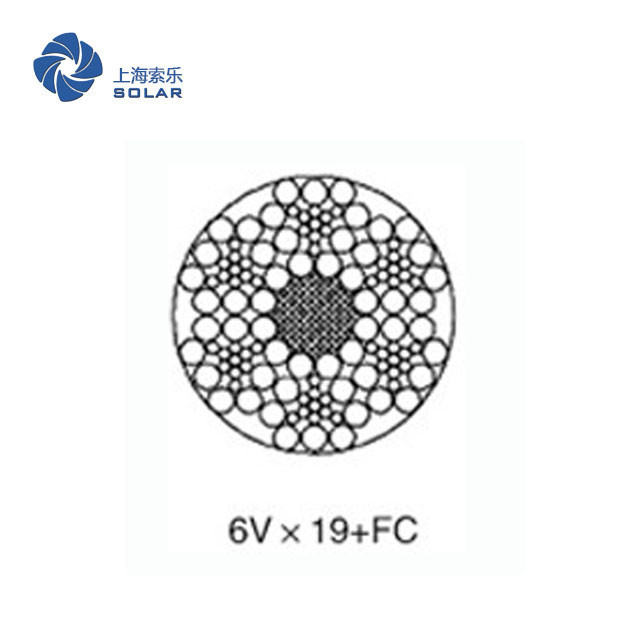

High Stength Lifting 6Vx19+IWR 6Vx19+FC Special Wire Rope 0

Nominal Diameter Approx.Weight Nominal Tensile Strength of Rope(MPa)
1570 1670 1770 1870 1960
Minimun Breaking Load of Rope
D NF SF IWR/IWS FC IWR/IWS FC IWR/IWS FC IWR/IWS FC IWR/IWS FC IWR/IWS
mm kg/100m (KN)

5 9.22 9 10.1 13 14 13.8 14.9 14.6 15.8 15.4 16.6 16.2 17.4
6 13.3 13 14.6 18.7 20.1 19.8 21.4 21 22.7 22.2 24 23.3 25.1
7 18.1 17.6 19.9 25.4 27.4 27 29.1 28.6 30.9 30.2 32.6 31.7 34.2
8 23.6 23 25.9 33.2 35.8 35.3 38 37.4 40.3 39.5 42.6 41.4 44.7
9 29.9 29.1 32.8 42 45.3 44.6 48.2 47.3 51 50 53.9 52.4 56.5
10 36.9 36 40.5 51.8 55.9 55.1 59.5 58.4 63 61.7 66.6 64.7 69.8
11 44.6 43.5 49.1 62.7 67.6 66.7 71.9 70.7 76.2 74.7 80.6 78.3 84.4
12 53.1 51.8 58.4 74.6 80.5 79.4 85.6 84.1 90.7 88.9 95.9 93.1 101
13 62.3 60.8 68.5 87.6 94.5 93.1 101 98.7 107 104 113 109 118
14 72.2 70.5 79.5 102 110 108 117 115 124 121 131 127 137
15 82.9 81 91.2 117 126 124 134 131 142 139 150 146 157
16 94.4 92.1 104 133 143 141 152 150 161 158 170 166 179
18 119 117 131 168 181 179 193 189 204 200 216 210 226
19 133 130 146 187 202 199 215 211 228 223 240 234 252
20 147 144 162 207 224 220 238 234 252 247 266 259 279
22 178 174 196 251 271 267 288 283 305 299 322 313 338
24 212 207 234 298 322 317 342 336 363 355 384 373 402
26 249 243 274 350 378 373 402 395 426 417 450 437 472
28 289 282 318 406 438 432 466 458 494 484 522 507 547
30 332 324 365 466 503 496 535 526 567 555 599 582 628
32 377 369 415 531 572 564 609 598 645 632 682 662 715
34 426 416 469 599 646 637 687 675 728 713 770 748 807
36 478 466 526 672 724 714 771 757 817 800 863 838 904
38 532 520 586 748 807 796 859 843 910 891 961 934 1010
40 590 576 649 829 894 882 951 935 1010 987 1070 1030 1120
42 650 635 715 914 986 972 1050 1030 1110 1090 1170 1140 1230
44 714 697 785 1000 1080 1070 1150 1130 1220 1190 1290 1250 1350
46 780 762 858 1100 1180 1170 1260 1240 1330 1310 1410 1370 1480
48 849 829 934 1190 1290 1270 1370 1350 1450 1420 1530 1490 1610
50 922 900 1010 1300 1400 1380 1490 1460 1580 1540 1660 1620 1740
52 997 973 1100 1400 1510 1490 1610 1580 1700 1670 1800 1750 1890
54 1080 1050 1180 1510 1630 1610 1730 1700 1840 1800 1940 1890 2030
56 1160 1130 1270 1620 1750 1730 1860 1830 1980 1940 2090 2030 2190
58 1240 1210 1360 1740 1880 1850 2000 1960 2120 2080 2240 2180 2350
60 1330 1300 1460 1870 2010 1980 2140 2100 2270 2220 2400 2330 2510
62 1420 1380 1560 1990 2150 2120 2290 2250 2420 2370 2560 2490 2680
64 1510 1470 1660 2120 2290 2260 2440 2390 2580 2530 2730 2650 2860
66 1610 1570 1770 2260 2430 2400 2590 2540 2740 2690 2900 2820 3040
68 1700 1660 1870 2400 2580 2550 2750 2700 2910 2850 3080 2990 3230
70 1810 1760 1990 2540 2740 2700 2910 2860 3090 3020 3260 3170 3420
72 1910 1870 2100 2690 2900 2860 3080 3030 3270 3200 3450 3350 3620
74 2020 1970 2220 2840 3060 3020 3260 3200 3450 3380 3650 3540 3820
76 2130 2080 2340 2990 3230 3180 3430 3370 3640 3560 3850 3740 4030
78 2240 2190 2470 3150 3400 3350 3620 3550 3830 3750 4050 3940 4250
80 2360 2300 2590 3320 3580 3530 3800 3740 4030 3950 4260 4140 4470

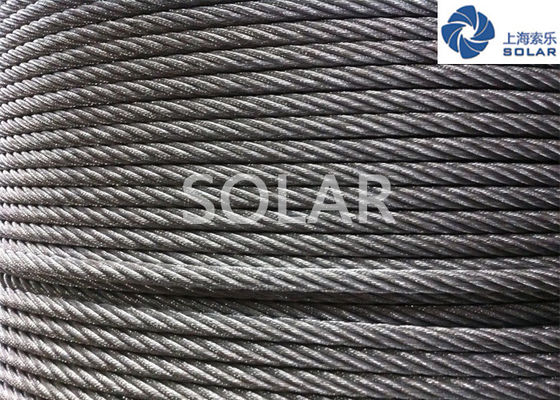

High Stength Lifting 6Vx19+IWR 6Vx19+FC Special Wire Rope 1

High Stength Lifting 6Vx19+IWR 6Vx19+FC Special Wire Rope 2











High Stength Lifting 6Vx19+IWR 6Vx19+FC Special Wire Rope 3



High Stength Lifting 6Vx19+IWR 6Vx19+FC Special Wire Rope 4










We can also provide Steel Wire Rope Slings

HOW TO ORDER WIRE ROPE SLINGS

  • Define rope diameter. 1-1/4" or 24mm in example
  • Rope Structure. 6X37 IWRC EIPS construction for example.
  • laid RHLL(Z) or LHLL(S) for cable laid rope.
  • Sling Length (length could be 0.5~1000meter, feet and meter both OK)
  • Terminations, end with soft eye or Hard eye (Thimble Eye)

High Stength Lifting 6Vx19+IWR 6Vx19+FC Special Wire Rope 5

High Stength Lifting 6Vx19+IWR 6Vx19+FC Special Wire Rope 6



High Stength Lifting 6Vx19+IWR 6Vx19+FC Special Wire Rope 7





High Stength Lifting 6Vx19+IWR 6Vx19+FC Special Wire Rope 8









High Stength Lifting 6Vx19+IWR 6Vx19+FC Special Wire Rope 9
