Diameter 6mm~60mm Crane Lifting Slings With Galvanized / Ungalvanized Surface

Product Details:
Place of Origin: Made in China
Brand Name: SOLAR
Certification: ABS(USA), BV(France), CCS(China), DNV(Norway), GL(Germany), KR(Korea), LR(U. K. ), NK(Japan), RINA(Italy), RS(Russia) & Works Certificate.
Model Number: 6mm~60mm
Payment & Shipping Terms:
Minimum Order Quantity: 1 length
Price: Negotiable
Packaging Details: Pallet, Reels
Delivery Time: within 7 days
Payment Terms: L/C, D/P, T/T
Supply Ability: Depends on Order

Detail Information

Product Name: Non-Rotating Galvanized Wire Rope Structure 35Wx7 Anti-Twist Diameter 6mm~60mm Wire Rope Structure: 35Wx7 Some Other Structure See Description Section
Surface: Galvanized / Ungalvanized Diameter: 6mm~60mm
Length: Depends On Order, 1~1000meter Core Type: IWR/IWS/FC
Standard: GB/DIN/BS/JIS/ASTM/RR-W-410/API/ISO Packing: Reel/Pallet/Plastic Bags/Wooden Box
Safe Working Load (SWL): 20Ton~180Ton Application: Crane
Port Of Origin: Shanghai China Company Type: Manufacturer, Supplier, Expoter
High Light:

steel wire rope for cranes

,

overhead crane wire rope

Product Description

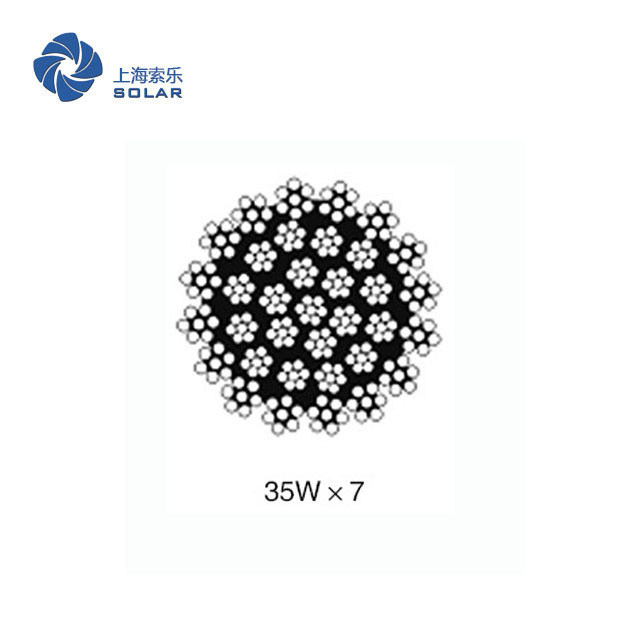

35WxK7 Non-Rotating Galvanized Wire Rope Structure 35Wx7 Anti-Twist Diameter 6mm~60mm



Classification Wire Rope Structure Application
Cross Lay Wire Rope 6×19 Rigging Rope
6×37
6×61
Paralell Lay Wire Rope 6×7 Haulage Rope For Coal Inclined Shaft
6×19S Haulage Rope For Coal Inclined Shaft
Rope For Oil Drilling
6×19W Hoist Rope For Steel Works
Hoist Rope For Coal Mining
Rope For Oil Drilling
6×25Fi
6×26WS
6×31WS
6×29Fi Wintch Rope For Blast Fumace
Ropes For Harbour And Ship
Rope For Petroleum
Rope For Heavy Crane
Rope For Cableway
6×36WS
6×37S
6×41WS
6×49SWS
6×55SWS
8×19S Elevator Rope
8×19W
8×25Fi
8×26WS Hoist Rope
8×31WS
8×29Fi Rope For Heavy Crane
Rope For Marine Engineering
Rope For Ships
8×36WS
8×41WS
8×49SWS
8×55SWS
4 Strand Wire Rope 4V×39S Crane Wire Rope
4V×48S
Multi-Layer 18×7 Rope For Vertical Shaft Lifting
Rope For Harbour And Ship
18×19W Rope For Ships
18×19S
18×19
35W×7 Hoist Rope
Compacted Strand Wire Rope 6×K7 Hoist Rope For Coal Mining
6×K19S
6×K25Fi
6×K26WS
6×K31WS Hoist Rope For Steel Works
6×K36WS Wire Rope For Heavy Crane Hoist Wire Rope For Port
6×K41WS
8×K19S Wire Rope For Heavy Crane Wire Hoist Wire Rope For Port
8×K26WS
8×K31WS
8×K36WS Wire Rope For Marine Engineering
8×K41WS
18×K7 Hoisting Wire Rope
18×K19S
35W×K7
Large Diameter Steel Wire Ropes 6×36WS Wire Rope For Ships Wire Rope For Maine Engineering
Mooring Anchoring Wire Rope
6×41WS
6×49SWS
6×55SWS
6×65FNS
6×80WSNS
6×84WSNS
6×111SWSNS
6×103FSNS
6×109SWSNS
6×61
8×25Fi
8×31WS
8×36WS
8×41WS
8×49SWS
8×55SWS
8×65FNS
8×80WSNS
8×84WSNS
8×111SWSNS
8×103FSNS
8×109SWSNS
Steel Wire Ropes For Elevators 6×19S Elevators Wire Rope
6×19W
6×25Fi
8×19S
8×19W
8×25F
9×19S
9×25Fi
Steel Wire Ropes For Fisheries 6×12 Fisheries Wire Rope
6×15
6×24
6×24S
6×24W
Steel Wire Ropes For Aviation 1×7 Aviation Wire Rope
1×19
6×7
6×19



About Wire Rope Slings:

Steel wire rope slings as a basic material handling tool are most frequently used in marine line. Also they offer a strong, dependable and economical option for most lifting applications. Their popularity is enhanced by the numerous sling configurations available to support a broad range of applications. These configurations include single and multi-part slings (such as round braids, flat braids, Tri-Flex and cable laid slings), grommets, single leg slings, multiple leg bridles, and a wide variety of fittings and attachments.

Relative to other types of slings, wire rope slings are average in strength/weight ratio, average in abrasion and cut resistance, poorest in elongation and flexibility, and average for high temperatures (IWRC only).



EIPS = Extra Improved Plow Steel

FC = Fiber Core

IWRC = Independent Wire Rope Core



Features:

A mechanical (or flemish) splice sling is most frequently used and is fabricated by unlaying the rope body into two parts, one having three strands, the other having the remaining three strands and core. The rope is unlayed far enough back to allow the eye to be formed by looping one part in one direction and the other part in the opposite direction and laying the rope back together.
The strands are rolled back around the rope body and a metal sleeve is slipped over the ends and pressed (or swaged) to secure the ends to the sling body. A hydraulic swaging press with special dies is used to bond the sleeve in place. Extreme pressure forces the steel sleeve to flow into the voids between the wires and strands, creating an assembly that maintains most of the wire rope's nominal breaking strength.



Why SOLAR Brand?

As a professional manufacturer for wire rope slings and heavy lift assemblies, SOLAR has been the No.1 wire rope and sling supplier in SH area. Our customers are mostly Shipbuilding, Shipping, Offshore construction, and ship service providers. With swaging machine up to size 120mm and experienced splicing workers, we provide strongest and safest wire rope slings. Also our sales staffs are professional with lifting equipment, and could provide with customer correct wire rope and slings for their equipment or lifting requirements.





Applications:

1. Steel wire ropes with diameters from 4mm to 120mm, Diameter and strcuture depends on customers' requirements.

2. 4:1/5:1/6:1 safety factors



Environmental Considerations

IWRC must not be used at temperatures above 400°F.

FC must not be used at temperatures above 180°F.

Fiber core ropes should not be subjected to degreasing solvents









Diameter 6mm~60mm Crane Lifting Slings With Galvanized / Ungalvanized Surface 0

Nominal Diameter Approx.Weight Nominal Tensile Strength of Rope 钢丝绳公称抗拉强度(MPa)
1570 1670 1770 1870 1960 2160
Minimun Breaking Load of Rope 钢丝绳最小破断拉力
D/mm kg/100m (KN)

6 16.6 20.3 21.6 22.9 24.2 25.4 28
8 29.4 36.2 38.5 40.8 43.1 45.2 49.8
10 46 56.5 60.1 63.7 67.3 70.6 77.8
12 66.2 81.4 86.6 91.8 96.9 102 112
14 90.2 111 118 125 132 138 152
16 118 145 154 163 172 181 199
18 149 183 195 206 218 229 252
20 184 226 240 255 269 282 311
22 223 274 291 308 326 342 376
24 265 326 346 367 388 406 448
26 311 382 406 431 455 477 526
28 361 443 471 500 528 553 610
30 414 509 541 573 606 635 700
32 471 579 616 652 689 723 796
34 532 653 695 737 778 816 899
36 596 732 779 826 872 914 1010
38 664 816 868 920 972 1020 1120
40 736 904 962 1020 1080 1130 1240
42 811 997 1060 1120 1190 1240 1370
44 891 1090 1160 1230 1300 1370 1510
46 973 1200 1270 1350 1420 1490 1650
48 1060 1300 1390 1470 1550 1630 1790
50 1150 1410 1500 1590 1680 1760 1940
52 1240 1530 1630 1720 1820 1910 2100
54 1340 1650 1750 1860 1960 2060 2270
56 1440 1770 1890 2000 2110 2210 2440
58 1550 1900 2020 2140 2260 2370 2620
60 1660 2030 2160 2290 2420 2540 2800





Diameter 6mm~60mm Crane Lifting Slings With Galvanized / Ungalvanized Surface 1Diameter 6mm~60mm Crane Lifting Slings With Galvanized / Ungalvanized Surface 2





HOW TO ORDER WIRE ROPE SLINGS

  • Define rope diameter. 1-1/4" or 24mm in example
  • Rope Structure. 6X37 IWRC EIPS construction for example.
  • laid RHLL(Z) or LHLL(S) for cable laid rope.
  • Sling Length (length could be 0.5~1000meter, feet and meter both OK)
  • Terminations, end with soft eye or Hard eye (Thimble Eye)



Diameter 6mm~60mm Crane Lifting Slings With Galvanized / Ungalvanized Surface 3



Diameter 6mm~60mm Crane Lifting Slings With Galvanized / Ungalvanized Surface 4









Diameter 6mm~60mm Crane Lifting Slings With Galvanized / Ungalvanized Surface 5



Diameter 6mm~60mm Crane Lifting Slings With Galvanized / Ungalvanized Surface 6





Diameter 6mm~60mm Crane Lifting Slings With Galvanized / Ungalvanized Surface 7



Diameter 6mm~60mm Crane Lifting Slings With Galvanized / Ungalvanized Surface 8
