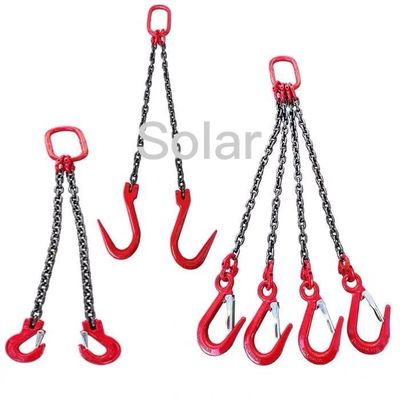

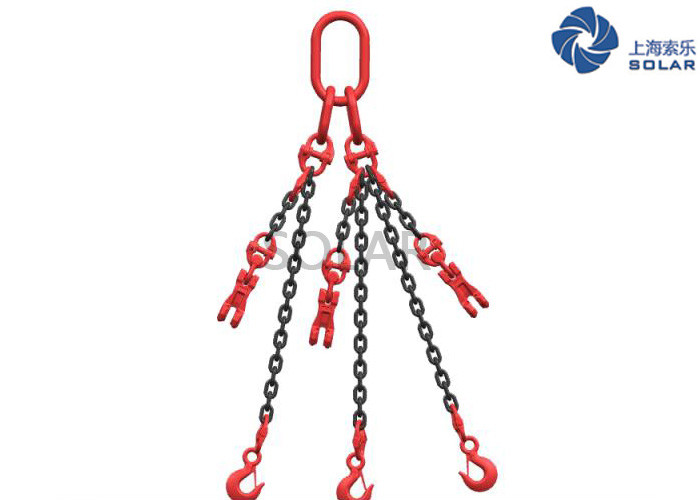

Multi-Leg Chain Sling Customized Length Lifting Chain Slings Welded Chain Structure With Hook
Multi-Leg Chain Sling Customized Length Lifting Chain Slings Welded Chain Structure With Hook Multi-Leg Chain Sling Customized Length Lifting Chain Slings Welded Chain Structure With Hook Multi-Leg Chain Sling Customized Length Lifting Chain Slings Welded Chain Structure With Hook Multi-Leg Chain Sling Customized Length Lifting Chain Slings Welded Chain Structure With Hook

Multi-Leg Chain Sling Customized Length Lifting Chain Slings Welded Chain Structure With Hook

Product Details:
Place of Origin: made in China
Brand Name: SOLAR
Certification: Mill Certificate
Model Number: Multi-Leg Chain Sling
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: plastic bags, wooden boxes
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: Depends on the Diameter and length of Chain
Contact Now

Detail Information
Product Name: Multi-Leg Chain Sling Material: G80 Chain
Surface Treatment: Electroplating Manufacture Standard: ISO, DIN， BS， JIS， ASTM
Quality Grade: G80 Safety Factor: 1:4
Usage: Transport Chain， Lashing Chain Structure: Welded Chain
HS Code: 73158200 Port Of Origin: Shanghai China
High Light:

tower crane wire rope

,

steel wire rope for cranes

Product Description

Multi-Leg Chain Sling



If heavy loads are to be lifted successfully, the right equipment must be used. One of those pieces of equipment often utilized to lift these types of loads is the chain sling. These slings can be used in various industrial and construction applications. These slings are flexible, temperature resistant, and strong enough to handle a wide array of loading conditions. It is essential that adequate safety precautions are followed at all times and in all aspects of any particular lifting scenario. The types of chain slings available for these various applications include single, double, and multi-leg slings.

  • Our Chain Slings are made up of master ring, connecting link, chain and fittings.
  • The length can be made according to the customers' requirements.
  • You can choose any kind of hooks according to the lifted objectives.
  • When lifting the angle won't over than 60
  • Standard safety factor is 4:1.

Note!!! several options are available for Chain slings:

  • Specify rigging hardware requirements for bottom of sling: eye hooks, thimbles, standard eyes, sorting hooks, etc.
  • Specify Chain size, grade, and finish if other than standard
  • Specify master link and hooks size if other than standard



Multi-Leg Chain Sling Customized Length Lifting Chain Slings Welded Chain Structure With Hook 0

Size dXt(mm) Width(mm) Unit Weight(kg/m) Working Load Limit(kN) Test Load(kN) Breaking Load(kN)
Min.a Max.b

Φ4×12 5.5 14 0.4 5 12.5 20
Φ5×15 6.5 17 0.6 7.8 19.6 31.4
Φ6×18 7.5 21 0.8 11 27 45.2
Φ7×21 9 24.5 1.07 15 37 61.6
Φ8×24 10 28 1.4 20 48 80.4
Φ9×27 11 30 2 25.4 63.5 101.7
Φ10×30 12.5 35 2.2 32 76 125
Φ11×43 12.6 36.5 2.33 38 92 154
Φ12×36 15 42 3.2 46 109 181
Φ12.5×38 15.5 42.2 3.3 49 117 196
Φ13×36 16.3 44 4.1 50 128 212
Φ13×39 16.3 46 3.84 50 128 212
Φ14×42 18 49 4.2 63 150 246
Φ14×50 17 48 4 63 150 246
Φ16×48 20 56 5.71 80 192 320
Φ16×50 20 56 5.6 80 192 320
Φ16×64 20 56 5.2 80 192 320
Φ18×54 23 63 7 100 246 410
Φ18×64 21 58 6.6 100 246 410
Φ19×57 23.7 63.2 7.7 113 270 450
Φ20×60 25 70 9 125 300 500
Φ22×66 28 77 10.8 153 366 610
Φ22×86 26 74 9.5 153 366 610
Φ24×72 32 82 12.8 180 432 720
Φ24×86 28 79 11.6 180 432 720
Φ25×75 33 85 14 196 408 784
Φ25×86 30 83 13.5 196 408 784
Φ26×78 35 91 15 213 510 850
Φ26×92 30 86 13.7 213 510 850
Φ28×84 37 95 18 246 580 984
Φ30×90 38 105 19.6 283 678 1130
Φ30×108 34 98 18 283 678 1130
Φ32×96 40 106 22.6 322 772 1286
Φ34×102 46.5 121.5 25.5 363 870 1450
Φ34×126 38 109 22.7 363 870 1450
Φ35×105 45 118 30.5 384 883 1530
Φ36×108 49.5 128.5 31 407 978 1630
Φ38×114 52 132 32 453 1086 1810
Φ38×137 45 123 29 453 1086 1810
Φ42×126 55.5 144.5 38.6 554 1332 2200



Multi-Leg Chain Sling Customized Length Lifting Chain Slings Welded Chain Structure With Hook 1



Multi-Leg Chain Sling Customized Length Lifting Chain Slings Welded Chain Structure With Hook 2











Multi-Leg Chain Sling Customized Length Lifting Chain Slings Welded Chain Structure With Hook 3



Multi-Leg Chain Sling Customized Length Lifting Chain Slings Welded Chain Structure With Hook 4



Multi-Leg Chain Sling Customized Length Lifting Chain Slings Welded Chain Structure With Hook 5



Multi-Leg Chain Sling Customized Length Lifting Chain Slings Welded Chain Structure With Hook 6



Multi-Leg Chain Sling Customized Length Lifting Chain Slings Welded Chain Structure With Hook 7



Multi-Leg Chain Sling Customized Length Lifting Chain Slings Welded Chain Structure With Hook 8
