High Strength Alloy Steel Lifting Chain Slings End With Steel Wire Rope

Product Details:
Place of Origin: made in China
Brand Name: SOLAR
Certification: Mill Certificate
Model Number: G80
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: plastic bags, wooden boxes
Delivery Time: 7 days
Payment Terms: L/C, T/T
Supply Ability: Depends on the Diameter and length of Chain

Detail Information

Product Name: Customized Chain Sling End With Steel Wire Rope Material: High-quality Alloy Steel
Surface Treatment: Self-color, Polishing, Black, Plastic Coating, Hot-dip, Galvanized Manufacture Standard: ISO, DIN, BS, JIS, ASTM
Quality Grade: G80 Safety Factor: 1 To 4
High Light:

tower crane wire rope

,

steel wire rope for cranes

Product Description

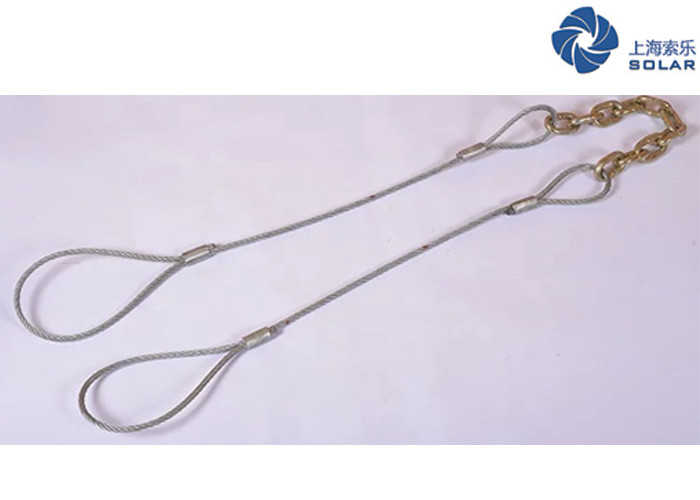

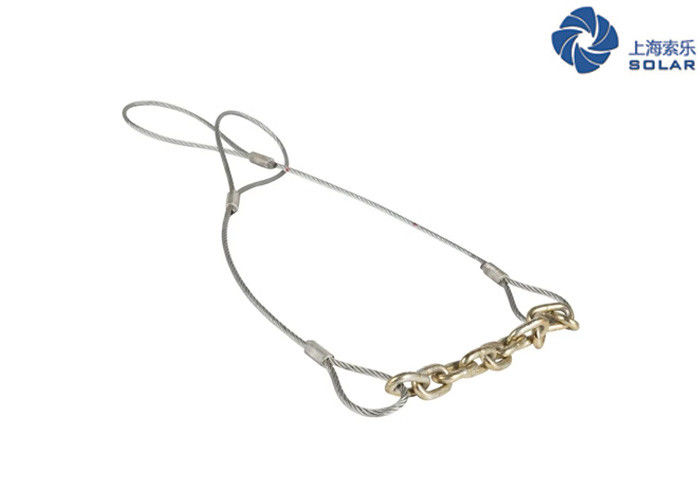

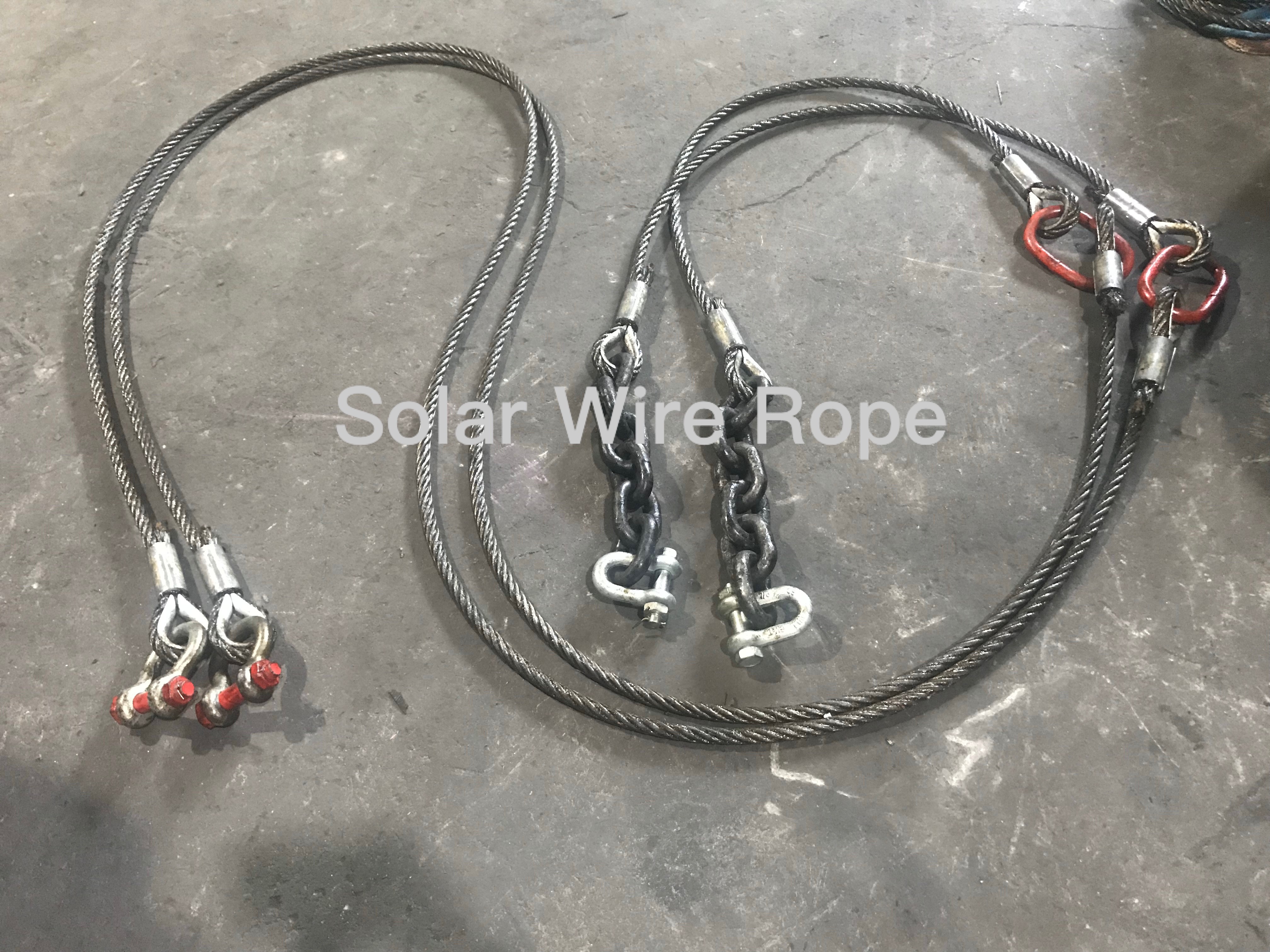

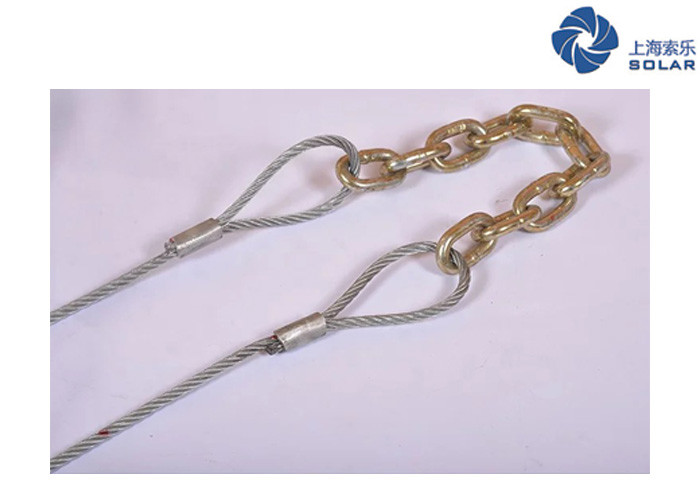

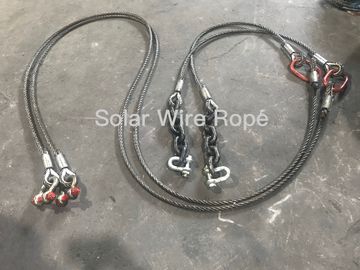

Chain Sling End With Steel Wire Rope



This Product is Customized, please contact us to let us know your requirements.

  • Our Chain Slings are made up of master ring, connecting link, chain and fittings.
  • The length can be made according to the customers' requirements.
  • You can choose any kind of hooks according to the lifted objectives.
  • When lifting the angle won't over than 60
  • Standard safety factor is 4:1. We can also provide 5:1 & 6:1.





High Strength Alloy Steel Lifting Chain Slings End With Steel Wire Rope 0

Size dXt(mm) Width(mm) 单位长度约重 Unit Weight(kg/m) 工作极限负荷 Working Load Limit(kN) 试验负荷 Test Load(kN) 最小破断负荷 Breaking Load(kN)
Min.a 最小外宽 Max.b

Φ4×12 5.5 14 0.4 5 12.5 20
Φ5×15 6.5 17 0.6 7.8 19.6 31.4
Φ6×18 7.5 21 0.8 11 27 45.2
Φ7×21 9 24.5 1.07 15 37 61.6
Φ8×24 10 28 1.4 20 48 80.4
Φ9×27 11 30 2 25.4 63.5 101.7
Φ10×30 12.5 35 2.2 32 76 125
Φ11×43 12.6 36.5 2.33 38 92 154
Φ12×36 15 42 3.2 46 109 181
Φ12.5×38 15.5 42.2 3.3 49 117 196
Φ13×36 16.3 44 4.1 50 128 212
Φ13×39 16.3 46 3.84 50 128 212
Φ14×42 18 49 4.2 63 150 246
Φ14×50 17 48 4 63 150 246
Φ16×48 20 56 5.71 80 192 320
Φ16×50 20 56 5.6 80 192 320
Φ16×64 20 56 5.2 80 192 320
Φ18×54 23 63 7 100 246 410
Φ18×64 21 58 6.6 100 246 410
Φ19×57 23.7 63.2 7.7 113 270 450
Φ20×60 25 70 9 125 300 500
Φ22×66 28 77 10.8 153 366 610
Φ22×86 26 74 9.5 153 366 610
Φ24×72 32 82 12.8 180 432 720
Φ24×86 28 79 11.6 180 432 720
Φ25×75 33 85 14 196 408 784
Φ25×86 30 83 13.5 196 408 784
Φ26×78 35 91 15 213 510 850
Φ26×92 30 86 13.7 213 510 850
Φ28×84 37 95 18 246 580 984
Φ30×90 38 105 19.6 283 678 1130
Φ30×108 34 98 18 283 678 1130
Φ32×96 40 106 22.6 322 772 1286
Φ34×102 46.5 121.5 25.5 363 870 1450
Φ34×126 38 109 22.7 363 870 1450
Φ35×105 45 118 30.5 384 883 1530
Φ36×108 49.5 128.5 31 407 978 1630
Φ38×114 52 132 32 453 1086 1810
Φ38×137 45 123 29 453 1086 1810
Φ42×126 55.5 144.5 38.6 554 1332 2200



High Strength Alloy Steel Lifting Chain Slings End With Steel Wire Rope 1



High Strength Alloy Steel Lifting Chain Slings End With Steel Wire Rope 2High Strength Alloy Steel Lifting Chain Slings End With Steel Wire Rope 3High Strength Alloy Steel Lifting Chain Slings End With Steel Wire Rope 4High Strength Alloy Steel Lifting Chain Slings End With Steel Wire Rope 5



High Strength Alloy Steel Lifting Chain Slings End With Steel Wire Rope 6



High Strength Alloy Steel Lifting Chain Slings End With Steel Wire Rope 7



High Strength Alloy Steel Lifting Chain Slings End With Steel Wire Rope 8



High Strength Alloy Steel Lifting Chain Slings End With Steel Wire Rope 9



High Strength Alloy Steel Lifting Chain Slings End With Steel Wire Rope 10
